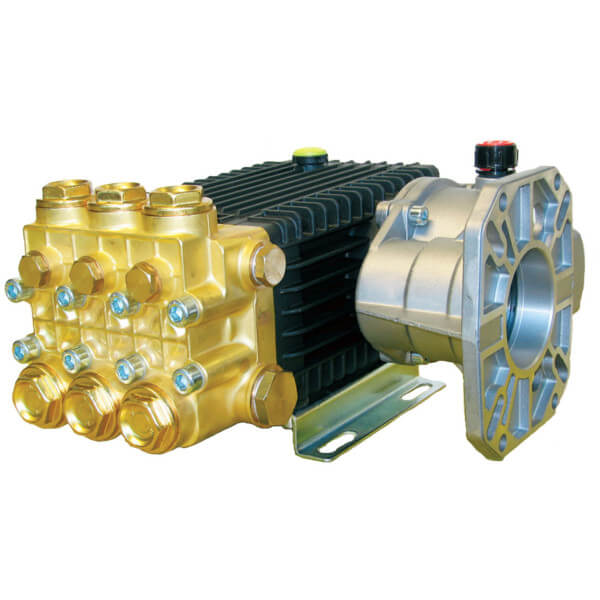

General Pump TSF2221GR Pressure Washer Pump with Gearbox – 8.5 GPM, 3000 PSI
Model: TSF2221GR
Category: Pressure Washer Pumps → Triplex Plunger Pumps
Type: General Pump TSF2221GR Pressure Washer Pump with Gearbox – 8.5 GPM, 3000 PSI, 1450 RPM, 1-1/8" Shaft
The General Pump TSF2221GR is a heavy-duty triplex plunger pressure washer pump with gearbox designed for commercial and industrial pressure cleaning applications. Built on one of the most trusted pump frames in the pressure cleaning industry, this model features a forged brass manifold, die-cast anodized aluminum oil-bath crankcase, solid ceramic plungers, and unitized stainless steel inlet and discharge valves for dependable long-term performance.
Key Features
-
Genuine OEM General Pump TSF2221GR pressure washer pump with gearbox
-
Delivers 8.5 GPM at 3000 PSI
-
Operates at 1450 RPM
-
Includes YGR1125P gear reducer
-
Forged brass manifold with exclusive lifetime warranty
-
Large-capacity die-cast anodized aluminum oil-bath crankcase
-
Oversized connecting rods for maximum life
-
Heavy-duty tapered roller bearing
-
Solid ceramic plungers with continuously lubricated packings
-
Unitized stainless steel inlet and discharge valves
-
Built for demanding commercial and industrial pressure cleaning systems
Technical Specifications
Product Name: Pressure Washer Pump with Gearbox
Manufacturer: General Pump
Model: TSF2221GR
Flow Rate: 8.5 GPM
Maximum Pressure: 3000 PSI
Shaft Size: 1-1/8"
RPM: 1450
Gear Reducer: YGR1125P
Weight: 46.7 lbs.
Condition: New
Construction Details
-
Forged brass manifold
-
Die-cast anodized aluminum oil-bath crankcase
-
Oversized connecting rods
-
Heavy-duty tapered roller bearing
-
Solid ceramic plungers
-
Continuously lubricated packings
-
Unitized stainless steel inlet and discharge valves
Typical Applications
-
Commercial pressure cleaning systems
-
Industrial washdown equipment
-
Gear-drive pressure washer pump replacements
-
High-flow pressure washer systems
-
Equipment requiring an 8.5 GPM 3000 PSI triplex plunger pump with gearbox
