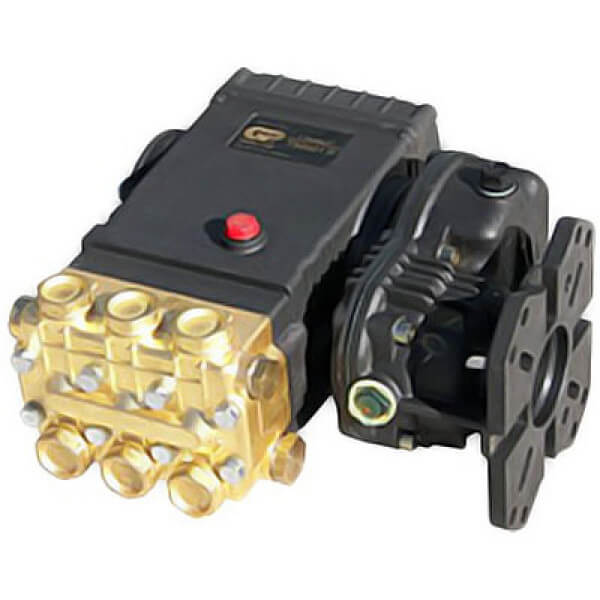

General Pump TS2021UR Pressure Washer Pump with Gearbox – 5.6 GPM, 3500 PSI

Model: TS2021UR
Category: Pressure Washer Pumps → Triplex Plunger Pumps
Type: General Pump TS2021UR Pressure Washer Pump with Gearbox – 5.6 GPM, 3500 PSI, 1450 RPM, 1" Shaft

The General Pump TS2021UR is a heavy-duty T Series 47 triplex plunger pump with gearbox designed for demanding commercial and industrial pressure cleaning systems. Built with a forged brass manifold, heavy-duty tapered roller bearings, and oversized connecting rods, this pump is engineered for long service life, dependable high-pressure performance, and smooth operation in rugged washdown applications.

Key Features

• Genuine OEM General Pump TS2021UR pressure washer pump with gearbox

• T Series 47 triplex plunger pump

• Delivers 5.6 GPM at 3500 PSI

• Operates at 1450 RPM

• Includes Gear Reducer 5038.C2

• 1" gearbox for J609B engine applications

• Forged brass manifold with exclusive lifetime warranty

• Heavy-duty tapered roller bearings

• Oversized connecting rods for maximum life

• Built for commercial and industrial pressure cleaning systems

Technical Specifications

Product Name: Pressure Washer Pump with Gearbox
Manufacturer: General Pump
Model: TS2021UR

Flow Rate: 5.6 GPM
Maximum Pressure: 3500 PSI
Shaft Size: 1" (25.4 mm)
RPM: 1450
Gear Reducer: 5038.C2
Max Inlet Pressure: 125 PSI
Max Fluid Temperature: 165°F
Inlet Port Thread: 1/2" - 14 BSP-F
Discharge Port Thread: 3/8" - 19 BSP-F
Max Inlet Vacuum: 9 ft. water (7.9 in. Hg)
Crankcase Oil Capacity: 40.6 oz.
Pump Dimensions: 12.2" x 9.2" x 10.5"
Weight: 42 lbs.
Condition: New

Construction Details

• Forged brass manifold

• Heavy-duty tapered roller bearings

• Oversized connecting rods

• Triplex plunger pump design for dependable pressure output

• Gear-drive configuration for compatible engine setups

Typical Applications

• Commercial pressure cleaning systems

• Industrial washdown equipment

• Gear-drive pressure washer pump replacements

• Engine-driven systems using J609B-compatible gearbox setups

• Equipment requiring a 5.6 GPM 3500 PSI triplex plunger pump with gearbox
