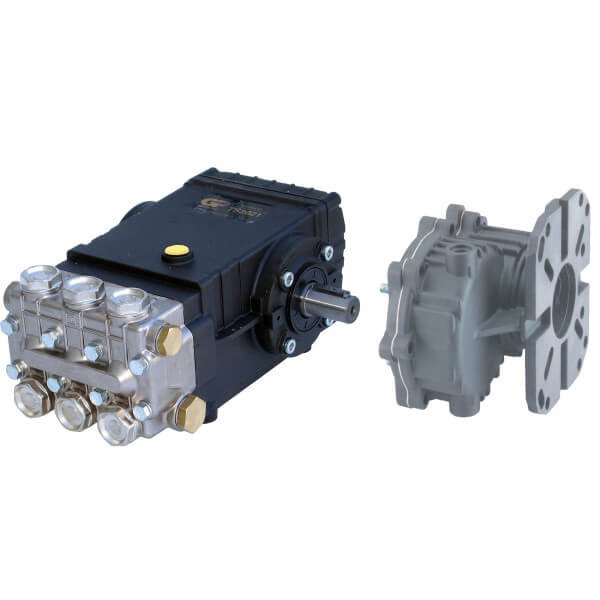

General Pump TS2021-GR Pressure Washer Pump with Gearbox – 5.6 GPM, 3500 PSI

Model: TS2021-GR
Category: Pressure Washer Pumps → Triplex Plunger Pumps
Type: General Pump TS2021-GR Pressure Washer Pump with Gearbox – 5.6 GPM, 3500 PSI, 1450 RPM, 1" Shaft

The General Pump TS2021-GR is a heavy-duty triplex plunger pressure washer pump with gearbox built for dependable performance in commercial and industrial cleaning systems. Designed with a forged brass manifold, large-capacity die-cast anodized aluminum oil-bath crankcase, solid ceramic plungers, and unitized stainless steel inlet and discharge valves, this pump is engineered for long service life and reliable high-pressure operation.

Key Features

• Genuine OEM General Pump TS2021-GR pressure washer pump with gearbox

• Delivers 5.6 GPM at 3500 PSI

• Operates at 1450 RPM

• Includes ZGR1000 gear reducer

• Forged brass manifold

• Large-capacity die-cast anodized aluminum oil-bath crankcase

• Oversized connecting rods for maximum life

• Heavy-duty tapered roller bearing

• Solid ceramic plungers with continuously lubricated packings

• Unitized stainless steel inlet and discharge valves

• Built for demanding commercial and industrial pressure washer applications

Technical Specifications

Product Name: Pressure Washer Pump with Gearbox
Manufacturer: General Pump
Model: TS2021-GR

Flow Rate: 5.6 GPM
Maximum Pressure: 3500 PSI
Shaft Size: 1"
RPM: 1450
Gear Reducer: ZGR1000
Weight: 38 lbs.
Condition: New

Construction Details

• Forged brass manifold

• Die-cast anodized aluminum oil-bath crankcase

• Oversized connecting rods

• Heavy-duty tapered roller bearing

• Solid ceramic plungers

• Continuously lubricated packings

• Unitized stainless steel inlet and discharge valves

Typical Applications

• Commercial pressure cleaning systems

• Industrial washdown equipment

• Gear-drive pressure washer pump replacements

• High-pressure cleaning systems

• Equipment requiring a 5.6 GPM 3500 PSI triplex plunger pump with gearbox
