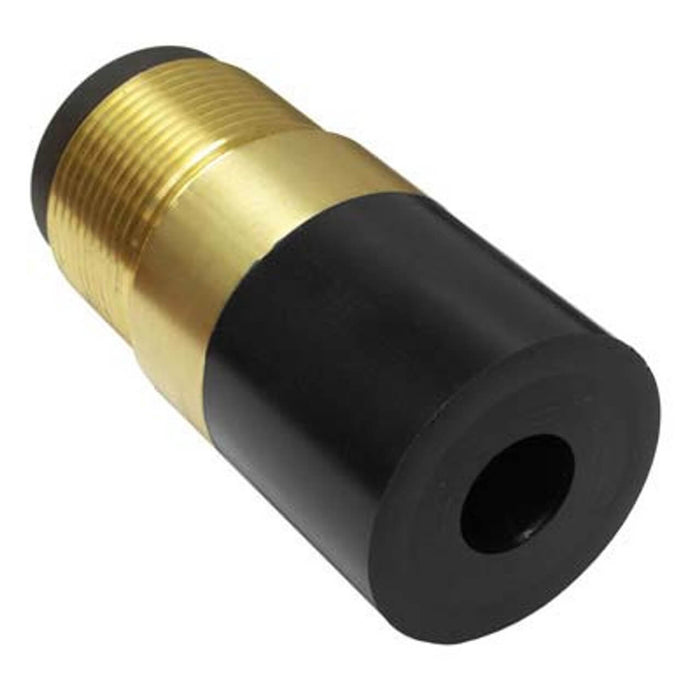

Nozzle – Tungsten Carbide Short Venturi, 7/16" Bore, 1" Entry, 1-1/4" Brass Thread, Poly Jacket

Part Number: 501-622
Weight: 1.90 lbs

The 501-622 Tungsten Carbide Short Venturi Nozzle is a high-impact blasting nozzle designed for operators who need strong cutting power in compact or confined spaces. Built with a durable tungsten carbide liner, this nozzle offers excellent wear resistance and consistent performance when blasting with aggressive media such as steel grit, aluminum oxide, slag, or garnet.

The 7/16" bore produces a powerful, concentrated blast stream ideal for heavy material removal, weld prep, rust and scale removal, and demanding industrial surface cleaning. The short venturi geometry maximizes impact force at close range, making this nozzle perfect for blast cabinets, near-surface blasting, and applications where working distance is limited.

A poly jacket adds impact resistance, corrosion protection, and improved handling comfort, while the 1-1/4" brass threaded connection provides compatibility with standard NPSM-style nozzle holders.

⚠️ WARNING: Brass-threaded nozzles should NOT be used with brass nozzle holders, as they may seize or become inseparable over time.

Specifications

Key Features & Performance Advantages

Tungsten Carbide Liner — Built for Longevity

• Excellent resistance to abrasive wear

• Performs reliably under high-pressure blasting

• Ideal for aggressive abrasive media and industrial workloads

Short Venturi Design — Maximum Impact at Close Range

• Produces a tight, concentrated blast pattern

• Strong cutting action for fast removal of coatings & corrosion

• Ideal for blast cabinets, enclosed areas, and spot blasting

7/16" Bore — High-Flow, High-Impact Output

• Delivers powerful abrasive velocity

• Excellent for heavy cleaning and industrial maintenance

• Efficient for contractors needing fast, controlled material removal

Poly Jacket

• Provides impact cushioning and corrosion resistance

• Protects the tungsten carbide liner from damage

• More comfortable handling for extended use

1-1/4" Brass Thread

• Heavy-duty connection for industrial systems

• Not recommended with brass holders due to seizing risk

OEM Cross-Reference

Ideal Applications

Perfect for:

• Blast cabinet operations

• Tight or confined blasting environments

• Heavy rust, scale & coating removal

• Weld seam cleaning & fabrication work

• Industrial maintenance & field blasting
