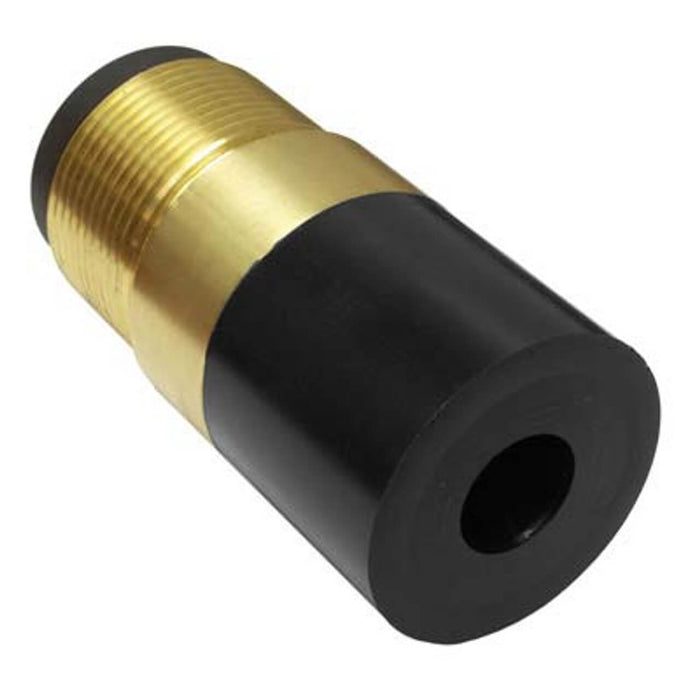

Nozzle – Tungsten Carbide Short Straight Bore, 5/16" Bore, 1" Entry, 1-1/4" Brass Threads, Poly Jacket

Part Number: 501-412
Weight: 1.20 lbs

The 501-412 Tungsten Carbide Short Straight Bore Nozzle is designed for high-precision abrasive blasting, offering a focused and efficient blast stream through its 5/16" straight bore. This makes it ideal for spot blasting, detailed surface prep, weld cleaning, rust removal, and applications requiring tight operator control.

Constructed with a tungsten carbide liner, durable poly jacket, and 1-1/4" brass threads, the nozzle delivers long-lasting wear resistance and reliable performance across demanding industrial environments.

Specifications

Key Features & Performance Advantages

High-Durability Tungsten Carbide

• Excellent wear resistance for extended nozzle life

• Performs exceptionally with aggressive abrasives

• Maintains bore accuracy over long-duty cycles

Precision Straight Bore Design

• Produces a concentrated and narrow blast pattern

• Ideal for small-area cleaning and detailed work

• Enhances operator control and accuracy

Impact-Resistant Poly Jacket

• Reinforces nozzle structure

• Provides better handling and protection

• Reduces external damage in rugged environments

Reliable Brass Thread Connection

• Fits standard 1-1/4" threaded nozzle holders

• WARNING: Brass-threaded nozzles used with brass nozzle holders may seize or bind over time

OEM Cross-Reference
