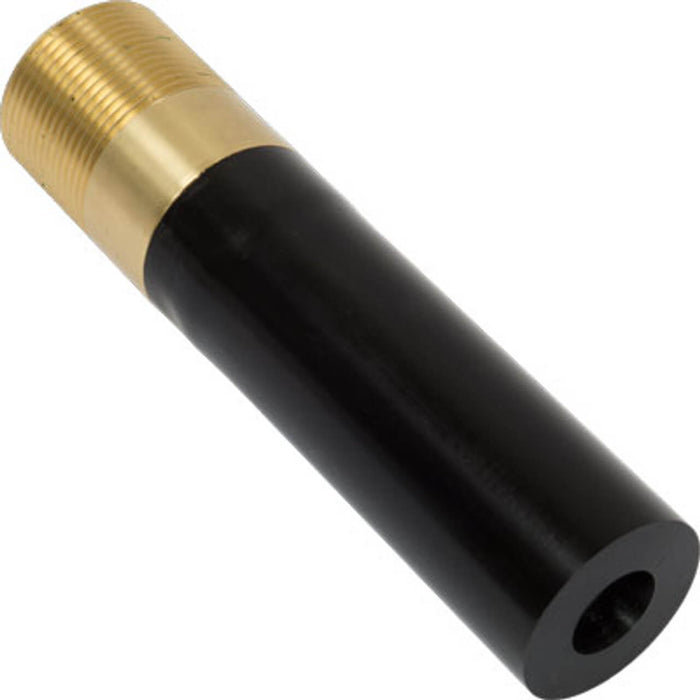

Nozzle – Tungsten Carbide Long Venturi, 3/8" Bore, 1" Entry, 1-1/4" Brass NPSM Thread, Poly Jacket

Part Number: 501-772
Weight: 1.90 lbs

The 501-772 Tungsten Carbide Long Venturi Nozzle is built for high-production blasting environments where maximum durability, abrasive velocity, and coverage efficiency are essential. Tungsten carbide provides outstanding wear resistance, making it one of the most durable nozzle materials for use with aggressive abrasives such as steel grit, aluminum oxide, garnet, and mineral slags.

With its long venturi design, this nozzle accelerates abrasive media to peak velocity, producing a wide, uniform blast pattern ideal for large surface areas and demanding industrial applications. The 3/8" bore supports a strong, consistent abrasive flow—perfect for general-purpose and heavy-duty blasting where both speed and cutting power matter.

A rugged poly jacket protects the tungsten carbide liner from impact damage while keeping the nozzle lighter and easier to handle. The 1-1/4" brass NPSM thread ensures a secure, vibration-resistant fit with compatible nozzle holders.

⚠ WARNING: Do not use brass-threaded nozzles with brass nozzle holders. Threads may seize and become permanently stuck under load and vibration.

Specifications

Key Features & Benefits

High-Durability Tungsten Carbide

• Exceptional wear resistance for aggressive abrasives

• Long service life in high-volume, continuous blasting

• Reliable performance under demanding industrial use

Long Venturi Performance

• Maximizes abrasive velocity for faster cleaning

• Produces a wide, consistent blast pattern

• Increases coverage area and reduces total blasting time

• Helps lower abrasive consumption

Versatile 3/8" Bore

• Balanced abrasive flow rate for general-purpose blasting

• Strong cutting power paired with efficient media use

• Suitable for medium-to-large surface preparation tasks

Protective Poly Jacket

• Impact-resistant and durable

• Lightweight compared to full-metal jackets

• Protects the carbide liner from field damage

1-1/4" Brass NPSM Thread

• Industry-standard fit

• Secure attachment and vibration resistance

• ⚠ Avoid brass holders to prevent galling/seizing

OEM Cross-Reference

Ideal Applications

• High-production blasting operations

• Structural steel, shipyards, tanks, bridges, refineries

• Removal of heavy rust, coatings, corrosion, and scale

• Use with aggressive abrasives (AO, steel grit, garnet, slags)

• Large surface areas requiring efficient, high-velocity blasting

• Contractors needing long-lasting nozzles with minimal downtime
