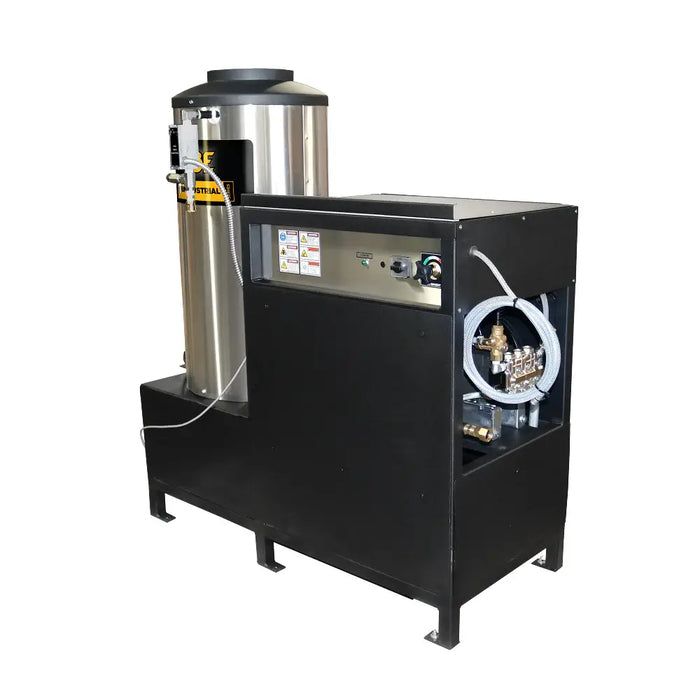

BE Power 3,000 PSI 4.0 GPM Hot Water Electric Pressure Washer – 7.5 HP Baldor, General Triplex Pump (643HD)

Key Specifications

• Pressure: 3,000 PSI

• Flow Rate: 4.0 GPM

• Motor: Baldor 7.5 HP, industrial-duty

• Pump: General TSS1511 Triplex – reinforced body, forged brass manifold, ceramic plungers, stainless steel check valves

• Drive: Belt drive system – lowers RPM, heat, and vibration for extended pump life

• Unloader: External for superior cooling and easier maintenance

• Temperature Range: Adjustable up to 200°F (93°C)

• Burner System: Diesel-fueled with electric ignition and thermostat control

• Frame: Powder-coated steel roll cage with lift point

• Accessories Included:

  • 50 ft. twin-wire braided high-pressure hose

  • Commercial spray gun with 48" insulated wand

  • 2 quick-connect nozzles (15°, 25°)

• Dimensions (LxWxH): 52” x 21” x 46”

• Weight: 700 lbs

Overview

The 643HD is an industrial-grade hot water pressure washer built for professionals who need maximum cleaning performance in the most demanding environments. Delivering 3,000 PSI at 4.0 GPM, this powerhouse combines a 7.5 HP Baldor motor with a General triplex plunger pump, making it a reliable choice for continuous-duty use in industrial settings.

The belt drive system lowers pump RPM and vibration, extending pump life and ensuring smooth, efficient performance. With a diesel-fired burner system and thermostat control, this washer can heat water up to 200°F (93°C) — giving you the edge in removing grease, grime, and tough industrial debris.

Core Features

7.5 HP Baldor Motor

• Built for continuous industrial use

• Provides reliable, energy-efficient performance

• Trusted Baldor durability in demanding environments

General Triplex Pump

• Commercial-grade pump designed for long service life

• Forged brass manifold for corrosion resistance

• Solid ceramic plungers withstand heat and wear

• Stainless steel check valves for consistent flow

Hot Water Heating System

• Diesel-fueled burner with electric ignition for quick startup

• Adjustable thermostat up to 200°F – ideal for grease, oil, and sanitization

• Schedule 80 carbon steel heating coil with stainless steel wrap for durability

• Burner can be turned off for cold water use or cool-down cycles

Safety & Controls

• Time-delayed shutdown with push-button restart – reduces wear and energy use

• External unloader valve – superior cooling, serviceability, and reliability

• Simple control system for ease of operation

Included Accessories

• 50 ft. high-pressure hose – twin-wire braided for industrial strength

• Commercial spray gun with 48” insulated wand – ergonomic and safe for high-heat use

• 2 quick-connect nozzles (15°, 25°) – adaptable for a variety of cleaning tasks

Available Options

• Remote Station Control – Start/Stop/Restart, Burner On/Off, and Detergent On/Off (10’ lead wire standard, longer lengths available)

• Coil Position Customization – specify left or right coil when ordering

Applications

The 643HD / 643HD-3 is perfect for:

• Industrial wash bays and service centers

• Heavy equipment and fleet maintenance

• Manufacturing facilities and warehouses

• Agriculture and property maintenance

• Food-grade and sanitation-focused industries

Why Choose the 643HD?

• 3,000 PSI power with 7.5 HP Baldor drive – engineered for industrial environments

• General triplex pump with belt drive – unmatched reliability and long service life

• Hot water up to 200°F – superior for grease, grime, and sanitization

• Heavy-duty frame with mobility features – built to move, built to last

• Options for customization and remote operation – fits your workflow

643HD / 643HD-3 — Industrial-grade hot water cleaning. Powered by Baldor and General Pump performance.
