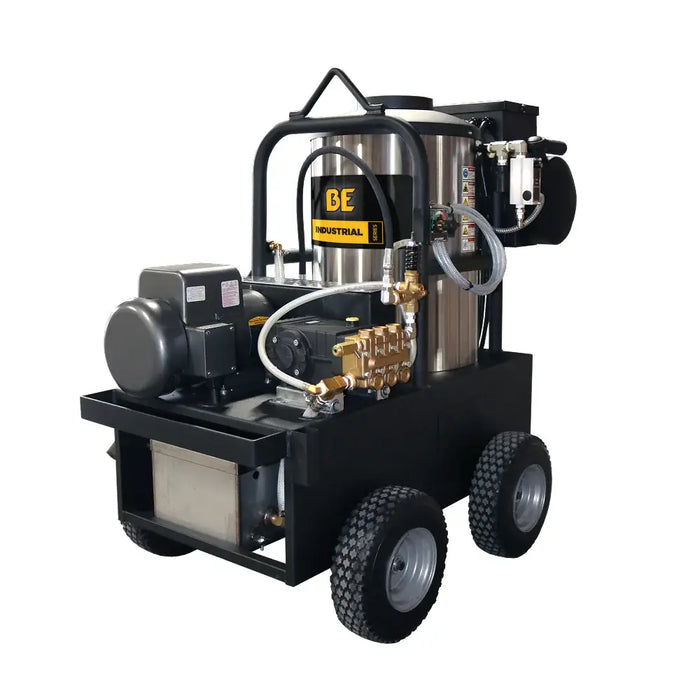

BE Power 2,000 PSI 5.0 GPM Hot Water Electric Pressure Washer – General Triplex Pump (15-520)

Key Specifications

• Pressure: 2,000 PSI

• Flow Rate: 5.0 GPM

• Motor: Baldor 7.5 HP Electric Motor (240V, 1 Phase, 36 Amp)

• Pump: General TS2021 Triplex – forged brass manifold, solid ceramic plungers

• Drive: Belt-driven for reduced vibration & extended life

• Burner: Diesel-fired, 189,000 BTU, adjustable thermostat, heats up to 193°F (89°C)

• Frame: Powder-coated steel roll cage with 12” flat-free tires & integrated lift point

• Accessories Included:

  • 50 ft. steel-braided high-pressure hose

  • 48” insulated spray wand & professional trigger gun

  • 2 quick-connect nozzles (15°, 25°)

• Weight: 675 lbs

• Dimensions (LxWxH): 60” x 31” x 48”

Overview

The BE Power 15-520 Hot Water Pressure Washer is built for industrial-grade cleaning power, combining 2,000 PSI pressure with a high 5.0 GPM flow rate. Designed for professionals in construction, transportation, agriculture, sanitation, and industrial maintenance, this machine delivers the perfect balance of pressure, heat, and volume to take on the toughest cleaning jobs.

With a 7.5 HP Baldor electric motor, a General TS2021 triplex pump, and a diesel-fired burner system, the 15-520 is engineered for long-term reliability and superior performance in demanding commercial environments.

Core Features

 Industrial Hot Water Cleaning

• 189,000 BTU diesel-fired burner heats water up to 193°F (89°C) for powerful grease and oil removal.

• Schedule 80 heating coil wrapped in stainless steel for maximum thermal efficiency and corrosion resistance.

• Adjustable thermostat provides precise temperature control for sanitation and degreasing tasks.

 Heavy-Duty Baldor 7.5 HP Motor

• 240V, 1-phase motor rated for continuous commercial duty.

• Built for durability with smooth and quiet operation compared to gas-powered units.

• Energy-efficient design lowers long-term operating costs.

 General TS2021 Triplex Pump

• Forged brass manifold, ceramic plungers, stainless steel check valves.

• Built for high-pressure, high-volume use in industrial cleaning.

• Belt-drive system reduces RPM, vibration, and heat—extending pump and motor life.

• External unloader improves pump cooling and makes servicing easier.

 Rugged Frame + Mobility

• Powder-coated steel roll cage frame protects components from impact and corrosion.

• 12” ultra premium flat-free wheels provide stability and portability across uneven surfaces.

• Wheels are detachable for permanent bolt-down installation in truck or trailer wash rigs.

• Integrated lift hook for easy transport and mounting.

 Pro-Grade Accessories

• 50 ft. double-braided high-pressure hose withstands heat and heavy use.

• 48” insulated spray wand + professional trigger gun for safe and precise operation.

• 2 quick-connect nozzles (15°, 25°) included for versatile spray options.

Applications

The 15-520 Hot Water Electric Pressure Washer is designed for serious professionals across industries where cleaning performance is mission-critical:

• Heavy equipment & fleet washing

• Oil, grease & industrial degreasing

• Construction site cleanup

• Agriculture & livestock sanitation

• Food processing & sanitation compliance

• Municipal maintenance services

Technical Details

Performance: 2,000 PSI | 5.0 GPM | Max Temp 193°F (89°C)
Motor: Baldor 7.5 HP | 240V | 1 Phase | 36 Amp | Continuous duty rated
Pump: General TS2021 Triplex | Belt drive | External unloader
Burner: Diesel-fired | 189,000 BTU | Adjustable thermostat | Stainless steel coil wrap
Frame: Powder-coated roll cage | 12” flat-free tires | Lift point | Trailer mount-ready
Accessories: 50’ hose | 48” wand & spray gun | 2 QC nozzles (15°, 25°)
Weight: 675 lbs
Dimensions: 60” x 31” x 48”

Why Choose the 15-520?

Hot water + high flow = superior grease-cutting power
Baldor motor + General TS2021 pump = unmatched reliability
Belt drive system = quieter, cooler, longer life
Rugged mobility or fixed installation flexibility
Professional-grade accessories included

This unit sits above the 15-423 (2,300 PSI / 4.0 GPM) in terms of flow rate and pump volume, making it ideal for users who need higher water volume for flushing away heavy debris while still maintaining strong hot water cleaning power.
