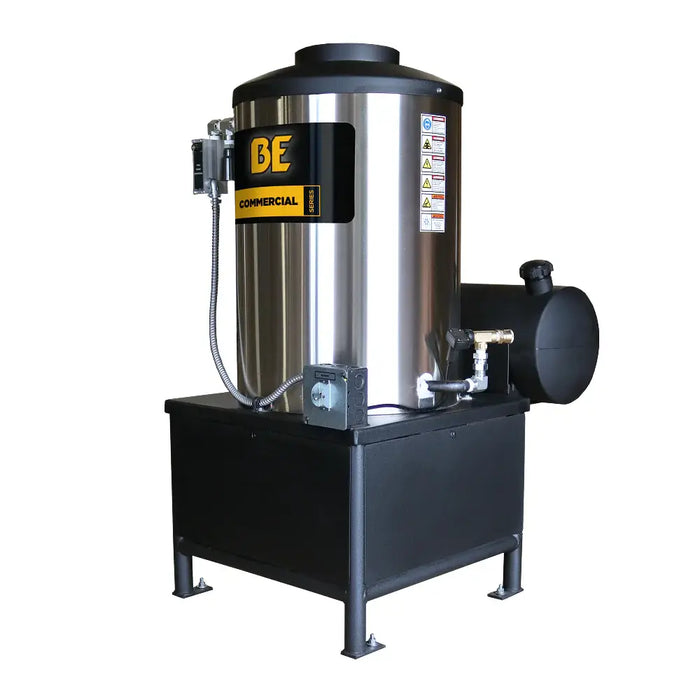

BE Power 12VDC Diesel Heated Hot Box – 4–5 GPM (96012V)

Key Specifications

• Frame: Hot Box (standalone heating unit)

• Flow Rate: 4–5 GPM

• Voltage: 12VDC

• Fuel Tank: 7-gallon poly diesel tank

• Heating Coil: Schedule 80 black pipe with stainless steel wrap

• Burner: Beckett diesel-fired with adjustable thermostat

• Thermostat Control: PAC in-line thermostat (12VDC units)

• Safety Features: ST7 flow switch, high limit switch, pressure relief valve, thermal relief valve

• Dimensions (LxWxH): 34” x 25” x 44”

• Shipping Weight: 460 lbs

Product Overview

The BE Power 96012V Diesel Hot Box is the ultimate add-on for cold water pressure washers, instantly transforming them into hot water cleaning systems. Powered by a reliable 12VDC ignition system, this hot box is engineered to handle demanding jobs in industrial, fleet, agricultural, and sanitation environments where hot water cleaning makes the difference.

With a 7-gallon diesel tank, durable powder-coated steel frame, and a high-efficiency heating coil, the 96012V provides rugged, reliable performance at any job site.

Features

Turn Cold Water into Hot Water Cleaning Power

• Integrates with your cold water pressure washer to create a true hot water system.

• Produces high heat for tackling grease, oil, grime, and sanitation-sensitive jobs.

Diesel-Fired Heating System

• Beckett diesel-fired burner with adjustable thermostat.

• PAC in-line thermostat (12VDC) provides precise temperature control.

• Delivers hot water temperatures up to 200°F (93°C).

• Schedule 80 carbon steel heating coil wrapped in stainless steel for maximum heat transfer and corrosion resistance.

Safety & Control Systems

• ST7 flow switch monitors water movement and shuts burner down when flow stops.

• High limit switch prevents overheating by cutting burner power if temperatures rise too high.

• Pressure relief and thermal relief valves protect the system under all conditions.

Built for Industrial Environments

• Powder-coated steel frame for strength and protection against corrosion.

• Compact vertical design for easier installation in trucks, trailers, or wash bays.

• 7-gallon poly diesel tank ensures extended burner runtime.

Accessories & Operation

• Ready to connect to most cold water pressure washer systems.

• Simplified controls with thermostat adjustment for flexible cleaning needs.

• Ships fully factory-tested (may contain residual oil or fuel odor).

Applications

The 96012V Diesel Hot Box is ideal for:

• Fleet and equipment washing

• Agricultural cleaning and sanitation

• Food service and facility maintenance

• Industrial and municipal wash bays

• Mobile wash rigs and trailer-mounted cleaning systems

Shipping

• Weight: 460 lbs

• Dimensions: 34” x 25” x 44”

• Ships tested and ready for setup.

Why Choose the 96012V?

• Add industrial hot water cleaning to any compatible cold water pressure washer.

• Diesel-fired, 12VDC-powered ignition system for reliable starts in all conditions.

• Heavy-duty build with advanced safety controls for peace of mind on the job.

• Designed for professionals who demand power, heat, and durability in one system.

96012V — Industrial hot water cleaning on demand, anywhere your job takes you.
