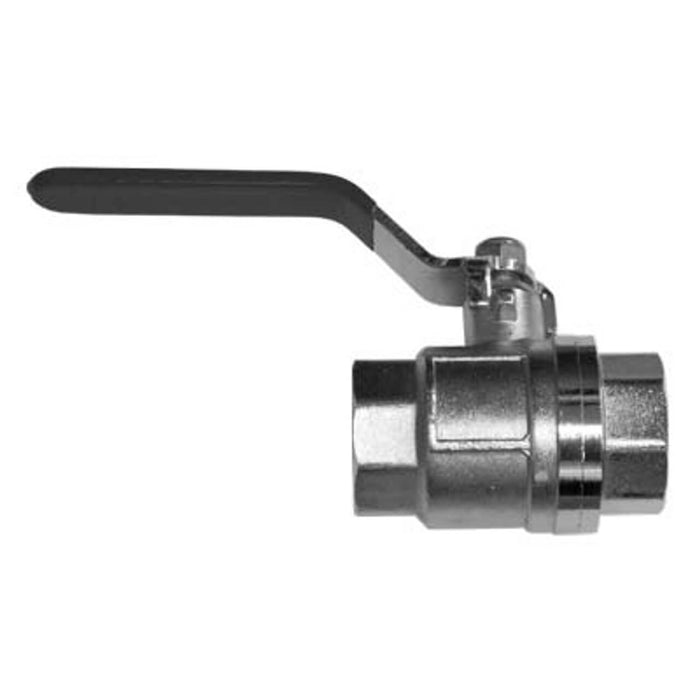

Full Port Ball Valve – 1/4" NPT, Chrome-Plated Brass, Nylock Handle Nut
Part Number: VB025
Connection Size: 1/4" NPT
Material: Chrome-Plated Brass
Handle Hardware: Nylock Handle Nut
Weight: 0.20 lbs
The VB025 Full Port Ball Valve is a durable, high-quality shut-off valve designed for fluid, air, and pressure system applications where reliable flow control is required. Featuring a full-port design, this valve allows unrestricted flow with minimal pressure drop, making it ideal for industrial, commercial, and equipment service use.
Constructed from chrome-plated brass for corrosion resistance and long service life, the VB025 is equipped with a Nylock handle nut to ensure secure operation and resistance to vibration loosening.
Key Features
-
Full port design for maximum flow efficiency
-
1/4" NPT female connections
-
Chrome-plated brass body for corrosion resistance
-
Nylock handle nut for secure, vibration-resistant operation
-
Compact and lightweight for easy installation
-
Suitable for air, water, oil, and compatible fluids
Specifications
| Specification | Detail |
|---|---|
| Part Number | VB025 |
| Valve Type | Full Port Ball Valve |
| Connection Size | 1/4" NPT |
| Body Material | Chrome-Plated Brass |
| Handle Hardware | Nylock Handle Nut |
| Weight | 0.20 lbs |
OEM Compatibility
This ball valve is compatible with the following OEM manufacturers:
| OEM Manufacturer | OEM Part Number |
|---|---|
| Schmidt Manufacturing | 2401-502 |
| U.S. Filter | 2401-502 |
| Axxiom Manufacturing | 2401-502 |
Applications
-
Air compressor systems
-
Pressure washer assemblies
-
Industrial fluid handling
-
Pneumatic and hydraulic systems
-
Equipment repair and replacement
-
OEM and aftermarket service use
Notes
-
Ensure compatibility with system pressure, temperature, and media before installation
-
Professional installation recommended for critical applications
