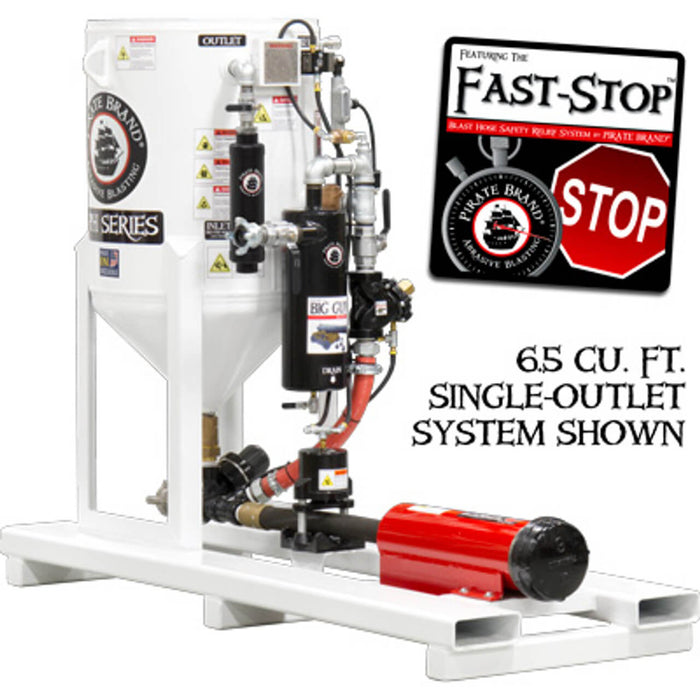

6.5 cu ft Portable Electric 12 VDC Sandblast Pot – FAST-STOP™ Pressure Hold System with APV II (Tungsten Carbide Sleeve) & Auto Air Valve, 1-1/2″ Piping w/ Big Gun Moisture Separator

Part Number: 888-0432-33904PB-EP
Rated Pressure: 150 PSI (10.3 BAR)
Weight: —
Warranty: 5 Year / 10 Year Limited Vessel

Overview

The Pirate Brand® FAST-STOP™ 6.5 cu ft Electric 12 VDC Sandblast Pot delivers maximum operator safety and unmatched efficiency.
Its patented FAST-STOP™ Pressure Hold System rapidly depressurizes the blast hose when the control handle is released—greatly reducing whip-back risk and allowing safe pressure release even if the nozzle becomes obstructed or the hose is compressed under equipment.

Equipped with a premium APV II metering valve with solid tungsten carbide sleeve, this system provides consistent abrasive flow, extreme wear resistance, and precise control for all heavy-duty industrial blasting operations.

Key Features & Benefits

FAST-STOP™ Safety System

• Rapid blast-hose depressurization for safer handling

• Prevents stored-air release during obstruction or hose compression

• Exhausts from the opposite end of the blast hose for full-system safety

Performance & Control

• APV II Tungsten Carbide Metering Valve – Ultra-durable design with quadruple plunger seal for precision control and long service life

• Pressure Hold System – Smooth starts/stops, reduced abrasive consumption, and lower moisture retention

• Big Gun Full Flow System – Zero pressure-drop path maximizes production (≈ 1.5 % gain per PSI)

• Full Port Blast Hose Couplings – Eliminates flow restriction for higher output

Electric 12 VDC Control System

• Faster start/stop response over long hose runs (100 ft +)

• Reliable cold-weather operation—reduces freezing issues

• Includes 110′ control cord with handle #2 and 25′ power cord

Durability & Construction

• 6.5 cu ft (185 L) ASME Section VIII Div. 1 pressure vessel

• 1-1/2″ galvanized piping for corrosion resistance

• Heavy-duty full-port ball valves & Schedule 80 nipples

• Big Gun Moisture Separator for clean, dry air delivery

• Gravel-Guard™ Skid with Integrated Fork Pockets for safe mobility

Specifications

Compatibility

• OEM Equivalent to: Schmidt / U.S. Filter / Axxiom Manufacturing P/N 0532-339-01

• Note: When using steel abrasives, Electric Control Handle #2 (888-2263-401PB) and Sealed Connectors (PB-31131) are required.

Applications

• Heavy-duty industrial surface prep

• Structural steel and bridge cleaning

• Shipyard, refinery, and pipeline maintenance

• Blast rooms and fabrication shops
