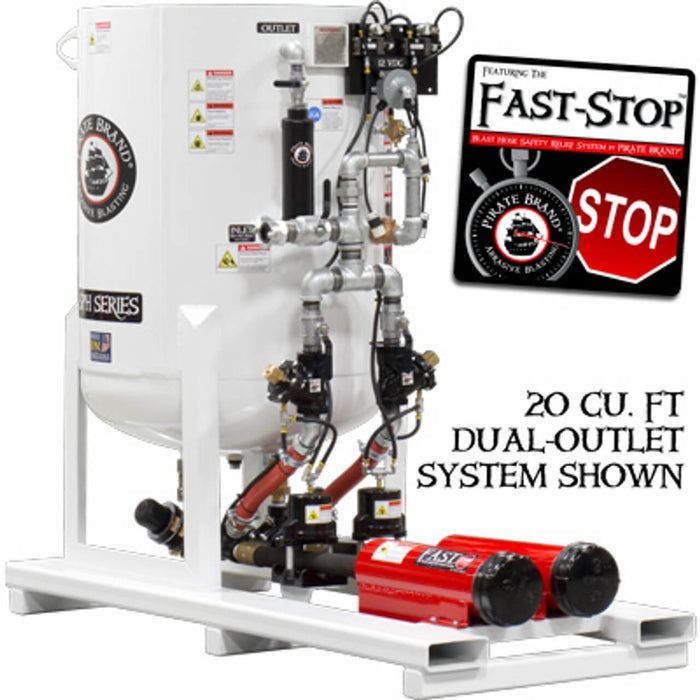

20.0 cu ft 2-Outlet Portable Electric 12VDC Blast Pot – FAST-STOP™ Pressure Hold System with APV II Valve (Tungsten Carbide Sleeve & Auto Air Valve), 1-1/2″ Piping

Part Number: 888-0942-33900PB-EP
Rated Pressure: 150 PSI (10.3 BAR)
Capacity: 20.0 cu ft (570 L)
Outlets: 2
Warranty: 5 Year / 10 Year Limited Vessel

Overview

The Pirate Brand® FAST-STOP™ 20 cu ft 2-Outlet Electric Blast Pot is engineered for high-volume, dual-operator blasting with advanced safety and production efficiency.
Its FAST-STOP™ Pressure Hold System rapidly depressurizes the blast hoses when the control handles are released—minimizing hose whip hazards and preventing trapped air during obstructions or hose compression.

This heavy-duty industrial unit features dual APV II Tungsten Carbide Metering Valves, a Big Gun Full Flow System, and 1-1/2″ piping to maximize airflow and abrasive control for simultaneous two-operator use.

Key Features & Benefits

FAST-STOP™ Safety System

• Rapid depressurization for operator safety

• Exhausts from the hose end to vent trapped air even during nozzle obstruction

• Simple, reliable mechanical design for long service life

Dual-Operator Performance

• 2-Outlet configuration supports two independent blast hoses and control handles

• Includes (2) 110′ Control Cords and (2) Handle #2 Assemblies

• Equal air distribution through the Big Gun Full Flow manifold

Electric 12 VDC Control System

• Instant start/stop response for each operator, even beyond 100 ft runs

• Reliable cold-weather operation – reduces freezing issues

• Heavy-duty filtered control valve for faster system shut-off

APV II Metering Valves with Tungsten Carbide Sleeves

• Quadruple plunger seal arrangement prevents carry-over and jamming

• Solid machined tungsten carbide plunger and sleeve for exceptional wear resistance

• 1″ NPT clean-out port for easy maintenance and vessel draining

Construction & Durability

• 20 cu ft (570 L) ASME Section VIII Div. 1 pressure vessel

• 1-1/2″ galvanized piping resists corrosion

• Heavy-duty full-port ball valves and Schedule 80 nipples extend service life

• Gravel-Guard™ Skid with Fork Pockets for safe transport and stability

Efficiency Enhancements

• 11″ Adjustable Spider – optimizes for varied media sizes and feed rates

• 6″ FAST-FILL™ Pop-Up with Skirted Gasket – faster loading and improved sealing for large grit

• Union End Ball Valves – allow abrasive shut-off for maintenance without dumping the pot

• Full Load Lifting Eyes – safe hoisting and placement in industrial environments

Specifications

Compatibility

• OEM Equivalent to: Schmidt / U.S. Filter / Axxiom Manufacturing P/N 0532-339-01

• Note: When using steel abrasives, use Electric Control Handle #2 (888-2263-401PB) and Sealed Connectors (PB-31131).

Applications

• Large-scale industrial surface preparation

• Shipyards and marine refits

• Bridge and structural steel maintenance

• Pipeline and refinery blasting

• Dual-operator blast rooms and contractor fleets
