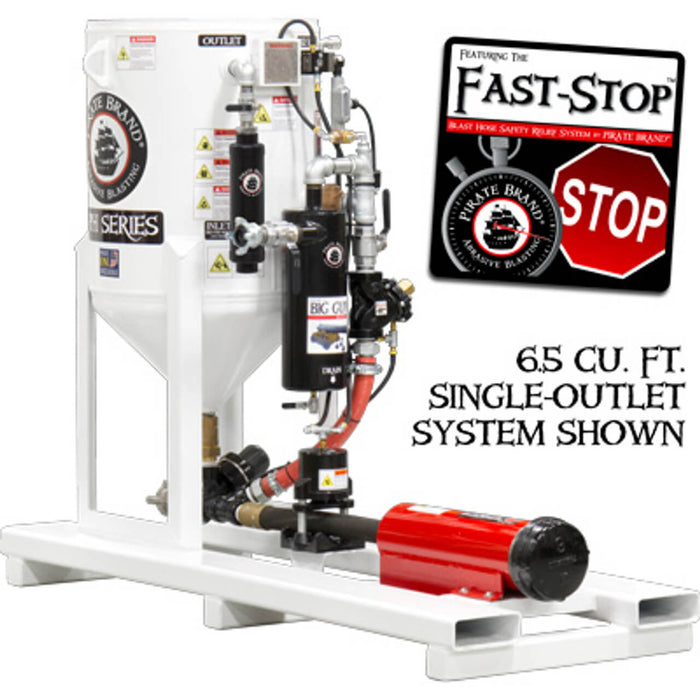

10.0 cu ft Portable Electric 12VDC Blast Pot – FAST-STOP™ Pressure Hold System with APV II Valve (Tungsten Carbide Sleeve & Auto Air Valve), 1-1/2″ Piping with Big Gun Moisture Separator

Part Number: 888-0732-33904PB-EP
Rated Pressure: 150 PSI (10.3 BAR)
Capacity: 10.0 cu ft (285 L)
Warranty: 5 Year / 10 Year Limited Vessel

Overview

The Pirate Brand® FAST-STOP™ 10.0 cu ft Electric Sandblast Pot combines advanced operator safety with high-capacity blasting performance.
Its exclusive FAST-STOP™ Pressure Hold System depressurizes the blast hose nearly instantaneously once the control handle is released—significantly reducing hose whip hazards and ensuring full-system venting even in cases of nozzle blockage or hose compression.

This model features the premium APV II Metering Valve with a solid tungsten carbide sleeve for unmatched wear resistance and precise abrasive flow regulation, supported by the Big Gun Full Flow System for unrestricted air and media delivery.

Key Features & Benefits

FAST-STOP™ Safety System

• Rapid hose depressurization for superior operator protection

• Depressurizes from hose end for safe release even when obstructed

• Simple, reliable mechanical design ensures longevity

Performance & Control

• APV II Tungsten Carbide Metering Valve – quadruple-seal precision with exceptional abrasion life

• Pressure Hold System – smoother starts/stops, lower abrasive consumption, reduced moisture buildup

• Big Gun Full Flow System – zero-restriction airflow boosts productivity ≈ 1.5 % per PSI gained

• Full-Port Couplings – maximized air/abrasive throughput for #7–#8 nozzles

Electric 12 VDC Control System

• Instant start/stop response even over 100 ft hose runs

• Enhanced cold-weather performance – minimizes freezing issues

• Includes 110′ control cord with handle #2 & 25′ power cord

Construction & Durability

• 10.0 cu ft (285 L) ASME Section VIII Div. 1 pressure vessel

• 1-1/2″ galvanized piping for corrosion resistance

• Heavy-duty full-port ball valves and Schedule 80 nipples for extended life

• Big Gun Moisture Separator keeps air clean and dry

• Gravel-Guard™ Skid with Integrated Fork Pockets for safe, stable mobility

Specifications

Compatibility

• OEM Equivalent to: Schmidt / U.S. Filter / Axxiom Manufacturing P/N 0532-339-01

• Note: When using steel abrasives, Electric Control Handle #2 (888-2263-401PB) and Sealed Connectors (PB-31131) are required.

Applications

• Industrial surface preparation & coating removal

• Shipyard and marine refit projects

• Structural steel and bridge maintenance

• Heavy equipment and pipeline refurbishment
