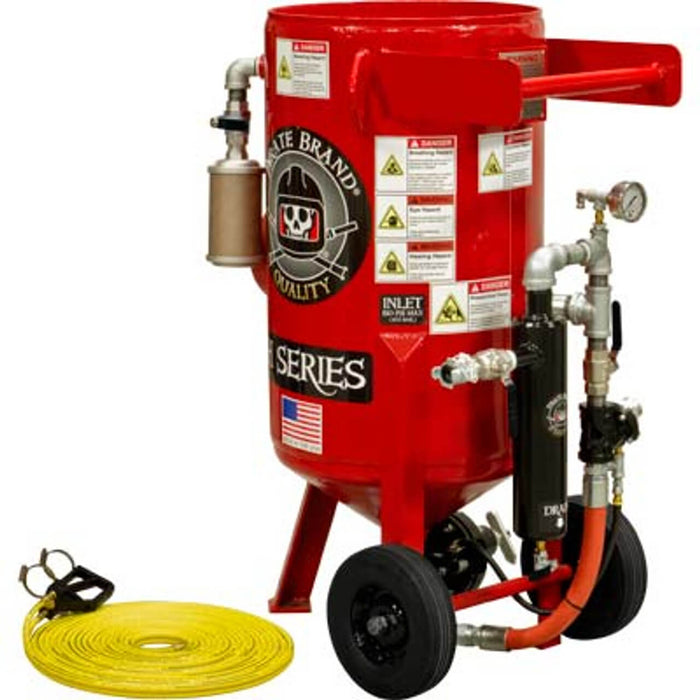

Portable 3.5 cu ft E-Series Pneumatic Blast Pot – Automatic Pinch Valve with X-TREME DUTY™ Metering Tube, 1" Piping with Moisture Separator

Part Number: 211-104-A
Compatible With: EMPIRE ABRASIVE EQUIPMENT COMPANY #211104
Weight: 382.97 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The Portable 3.5 cu ft (100 L) E-Series Pneumatic Blast Pot – Automatic Pinch Valve Model is built for precision, longevity, and industrial-grade performance. Featuring a Pressure Hold System, Automatic Pinch Valve with X-TREME DUTY™ Metering Tube, and 1" Galvanized Piping with Moisture Separator, this machine provides smoother starts & stops, consistent abrasive flow, and reduced air consumption.

Designed for contractors who require continuous, efficient blasting with minimal downtime, this unit combines advanced flow control with a rugged construction suited for the harshest environments.

Note: Not for use with steel grit – pneumatic control handle may jam. For metallic abrasives, use the electric-control version.

Features & Benefits of 3.5 cu ft EPH Pneumatic System

A. Pressure Vessel

• 3.5 cu ft (100 L) capacity rated to 150 PSI (10.3 BAR)

• Constructed per A.S.M.E. Section VIII Division 1

• C.R.N. certified for all provinces

B. Pressure Hold System

• Reduces abrasive consumption and moisture issues

• Ensures smoother start/stop cycles for extended component life

• Ideal for precision blasting and fine-media applications

C. Heavy-Duty Moisture Separator

• Maintains clean, dry air for consistent abrasive flow

D. 1" Galvanized Piping

• Corrosion-resistant construction built for longevity

E. Full-Port Ball Valves

• Heavy-duty design for maximum airflow efficiency

F. Schedule 80 Heavy-Duty Nipples

• Extended life through high abrasion resistance

G. Pusher Line with JIC Fittings

• Eliminates gasket failures and simplifies maintenance

H. Automatic Pinch Valve with X-TREME DUTY™ Tube

• Constructed from 100% gum rubber with carbon black for static dissipation

• Long wear life and precision metering

• Automatically regulates abrasive flow for consistent operation

I. Anti-Clog / Anti-Freezing Blow-Down Muffler

• Reduces noise and prevents freeze-up during operation

J. Bag-Breaker and Screen Assembly

• Prevents contamination and clogs during media loading

K. 6" FAST-FILL™ Pop-Up

• Allows faster abrasive loading for improved productivity

Specifications

Applications

• Industrial and commercial surface preparation

• Marine and shipyard maintenance

• Pipeline and refinery operations

• Concrete and steel structure cleaning

• Heavy equipment and machinery restoration

Compatibility

• OEM Replacement For: EMPIRE ABRASIVE EQUIPMENT COMPANY #211104

• Fully compatible with Empire E-Series pneumatic blast systems, hoses & fittings
