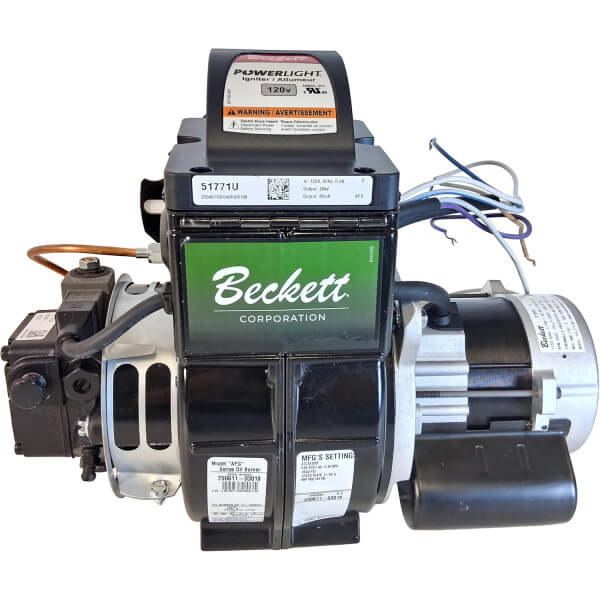

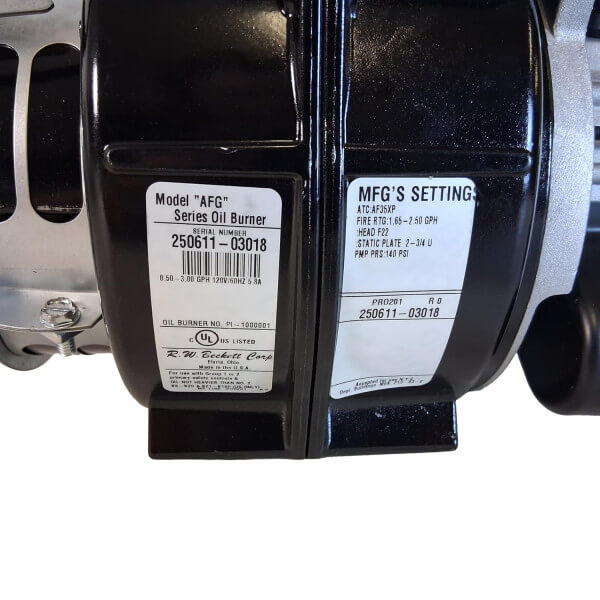

Beckett PRO201 AFG Oil Burner Assembly – 120VAC
Model: PRO201 AFG
Category: Heating & Combustion → Burners → Oil Burner Assemblies
Type: Oil Burner Assembly – 120VAC (Beckett AFG Series, OEM)
The Beckett PRO201 AFG Oil Burner Assembly – 120VAC is a high-performance, genuine OEM burner designed for hot water pressure washer systems and industrial heating applications. Built on Beckett’s proven AFG platform, this burner delivers reliable ignition, efficient combustion, and long-term durability in demanding environments.
Key Features
120VAC oil burner assembly (Beckett AFG series)
Adjustable firing rate: 0.4 – 3.0 GPH
Solid-state ignition for reliable performance
Beckett “Clean Cut” fuel pump with oil valve

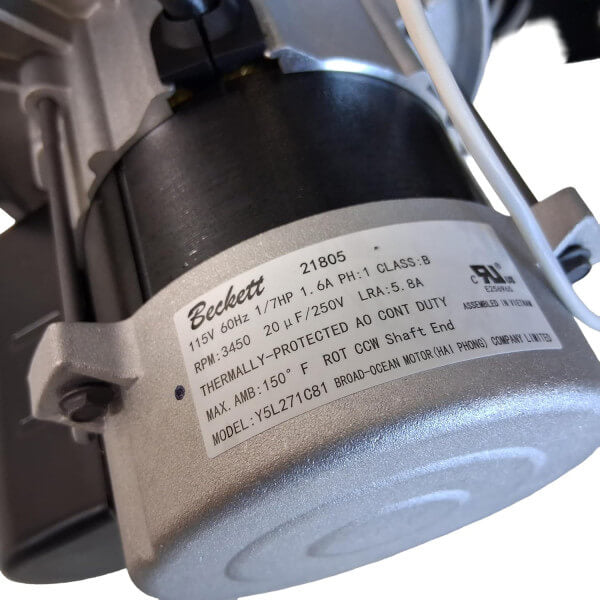

3450 RPM blower motor and blower wheel
6-1/4" blower fan for strong airflow
UL recognized for safety compliance
Widely used across major pressure washer brands
Technical Specifications
Product Name: Oil Burner Assembly
Model / Part Number: PRO201 AFG
Power Type: 120VAC
Blower Motor Speed: 3450 RPM
Blower Fan Size: 6-1/4"
Air Tube Length: 2-3/4"
Insertion Depth: 1-1/4"
Firing Rate: 0.4 – 3.0 GPH
Fuel Pump: Beckett “Clean Cut” w/ Oil Valve
Ignition Type: Solid-State
Certification: UL Recognized
Weight: 18.5 lbs
Brand: Beckett (Genuine OEM)
Condition: New
Compatibility / Applications
Hot water pressure washer systems
Compatible with:
- Hotsy
- Landa
- Shark
- Hydro Tek
- Northern Tool (NorthStar)
- Pressure Pro
Industrial and commercial heating systems
Mobile wash rigs and skid units
Performance Benefits
- Reliable ignition and combustion performance
- Reduced fuel waste with Clean Cut pump technology
- Strong airflow for efficient burner operation
- Widely compatible with industry-standard systems
Important Note
Fuel nozzle is typically not included and must be selected based on system requirements and desired firing rate.
