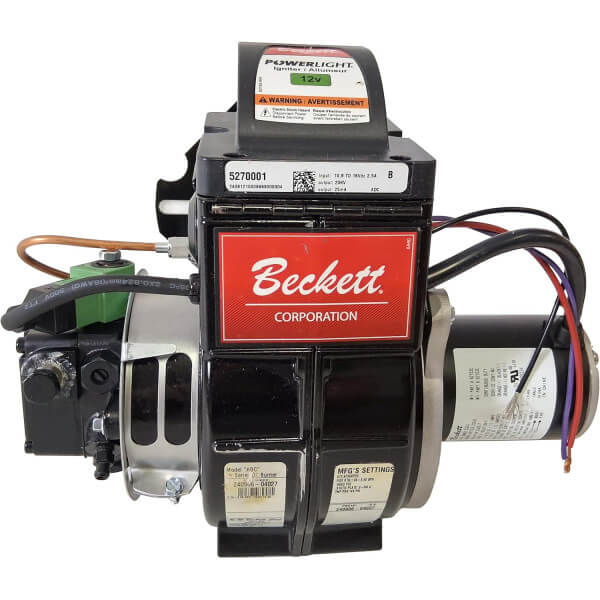

Beckett PRO101 ADC Oil Burner Assembly – 14VDC
Model: PRO101 ADC
Category: Heating & Combustion → Burners → Oil Burner Assemblies
Type: Oil Burner Assembly – 14VDC (Beckett PRO Series, OEM)
The Beckett PRO101 ADC Oil Burner Assembly – 14VDC is a high-performance, genuine OEM burner designed for pressure washer systems and industrial heating applications. Engineered for reliability and efficiency, this burner delivers consistent fuel ignition and combustion performance in demanding environments.
Note: This is a 14VDC burner and requires a 16–20 amp continuous power supply (not included).
Key Features
14VDC oil burner assembly (Beckett PRO Series)
Includes ignition control board (ICB) with electric eye
Solid-state ignition for reliable performance
Beckett “Clean Cut” fuel pump with oil valve
3450 RPM blower motor and blower wheel
Adjustable firing rate (.4 – 3.0 GPH)
Designed as a Pressure-Pro spec replacement burner
UL recognized for safety compliance
Technical Specifications
Product Name: Oil Burner Assembly
Model / Part Number: PRO101 ADC
Power Type: 14VDC
Blower Motor Speed: 3450 RPM
Blower Fan Size: 6-1/4"
Air Tube Length: 2-3/4"
Insertion Depth: 1.25"
Firing Rate: 0.4 – 3.0 GPH

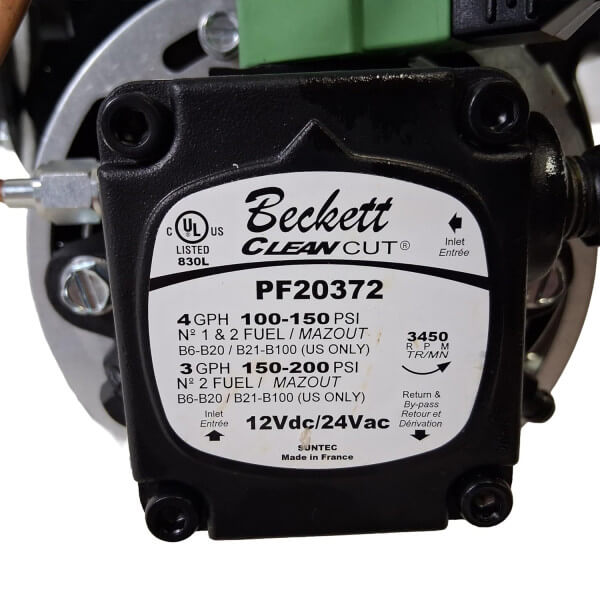

Fuel Pump: Beckett “Clean Cut” w/ Oil Valve
Ignition Type: Solid-State
Control System: ICB w/ Electric Eye
Power Requirement: 16–20 Amp Continuous Supply (Not Included)
Certification: UL Recognized
Brand: Beckett (Genuine OEM)
Condition: New
Important Notes
- Fuel nozzle NOT included (must be selected based on application)
- Requires external 14VDC power source (16–20 amps continuous)
Typical Applications
Hot water pressure washer systems
Industrial heating and burner systems
Mobile wash rigs and skid units
Commercial cleaning equipment
Replacement burner assemblies for Pressure-Pro systems
Performance Benefits
- Cleaner combustion with “Clean Cut” fuel pump
- Reliable ignition with solid-state system
- Flexible performance with adjustable firing rate
- Enhanced safety with electric eye flame monitoring
