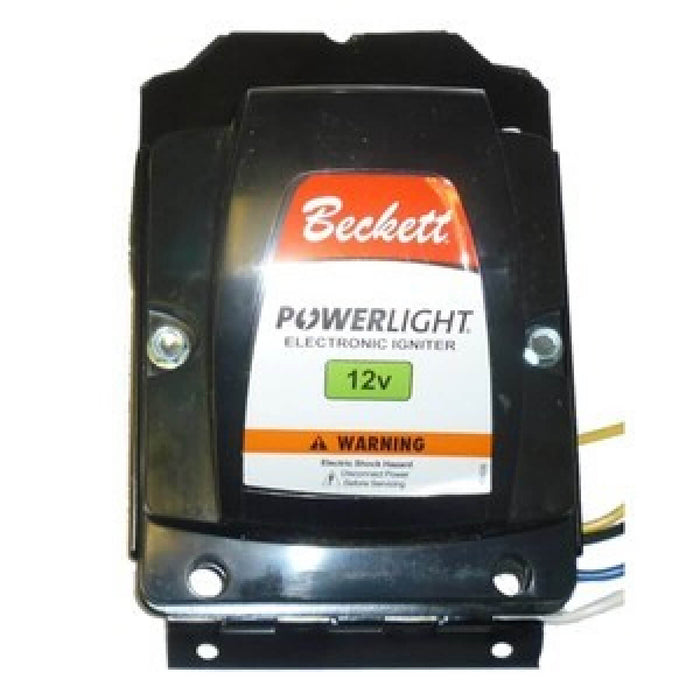

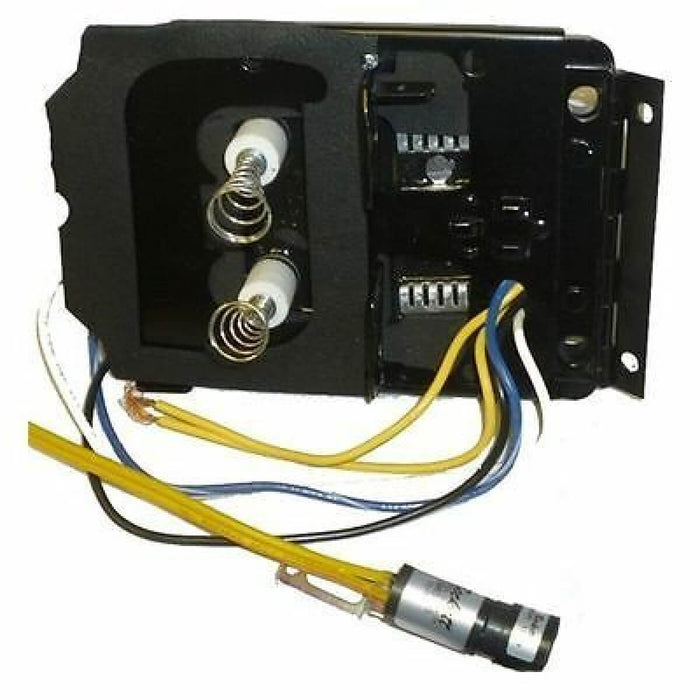

Beckett 5218305U Powerlight Ignitor – 12VDC w/ Cad Cell for Wayne EHA-DC Burner
Model: 5218305U
Category: Heating & Combustion → Burner Components → Ignition Systems
Type: Powerlight Ignitor – 12VDC w/ Cad Cell (Beckett OEM, Wayne EHA-DC Compatible)
The Beckett 5218305U Powerlight Ignitor – 12VDC w/ Cad Cell is a genuine OEM ignition system engineered for reliable burner startup, improved efficiency, and extended service life. Specifically designed for compatibility with Wayne EHA-DC burner systems, this ignitor also serves as a versatile replacement across multiple burner applications.
Key Features
Genuine Beckett OEM Powerlight ignitor
Designed for Wayne EHA-DC burner systems
12VDC operation (10.8–16VDC range)
Includes cad cell (not installed)
No external heat sink required (improved durability)
Fully potted, waterproof design for harsh environments
Supports interrupted ignition for longer life and energy savings
Lightweight, single-piece construction
Simplified wiring for easy installation
Technical Specifications
Product Name: Powerlight Ignitor
Model / Part Number: 5218305U
Input Voltage: 10.8–16VDC
Output Voltage: 20kV peak
Output Current: 25mA RMS
Input Current: 1.8A
Operating Temperature: -40°F to 150°F
Storage Temperature: -40°F to 150°F
Humidity Range: 5% to 95% relative humidity
Cad Cell: Included (not installed)
Compatibility: Wayne EHA-DC Burner Systems
Application Type: Oil burner ignition system
Brand: Beckett (Genuine OEM)
Condition: New
Typical Applications
Wayne EHA-DC burner systems
Oil burner ignition systems
Hot water pressure washer burners
Mobile wash rigs (12V systems)
Industrial heating equipment
Performance Benefits
- High-voltage ignition output (20kV) for reliable startup
- Reduced overheating with no external heat sink
- Waterproof construction for demanding environments
- Simplified installation and maintenance
- Extended ignitor lifespan with interrupted ignition capability
