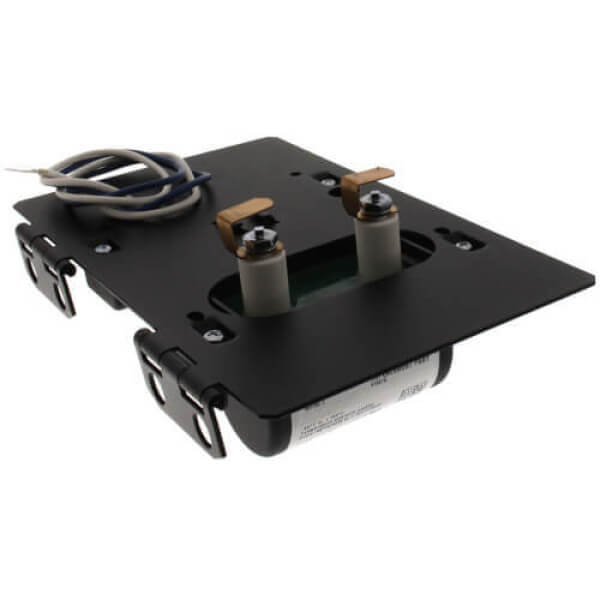

Beckett 51827U Electronic Oil Igniter – w/ Wayne E Base

Model: 51827U
Category: Heating & Combustion → Burner Components → Ignition Systems
Type: Electronic Oil Igniter – 120VAC (Beckett OEM, Wayne E Base)

The Beckett 51827U Electronic Oil Igniter – 120VAC is a genuine OEM ignition solution engineered for Wayne E-120VAC burner models. Designed with a side mount Wayne E base configuration, this igniter ensures proper alignment and secure installation for compatible burner systems.

Key Features

Genuine Beckett OEM electronic oil igniter

Designed for Wayne E-120VAC burner models

Side mount Wayne E base for proper fitment

120VAC operation (60 Hz, 35VA input)

20kV peak output for fast, reliable ignition

Vacuum-encapsulated for moisture resistance and durability

High-temperature thermoplastic case for impact and chemical resistance

Compact and lightweight (~1.1 lbs)

Side mount base plate (7-3/4")

Integrated wire management with breakout sections and protective hood

UL recognized (US & Canada)

Technical Specifications

Product Name: Electronic Oil Igniter

Model / Part Number: 51827U

Input: 120VAC, 60 Hz, 35VA

Output Voltage: 6kV RMS / 20kV peak

Output Current: 35mA RMS

Mounting: Side mount base plate (7-3/4", Wayne E base)

Operating Temperature: -20°F to 150°F

Storage Temperature: -40°F to 150°F

Construction: Vacuum-encapsulated synthetic resin

Case Material: High-temperature thermoplastic

Compatibility: Wayne E-120VAC burner models

Certifications: UL (US & Canada)

Weight: Approx. 1.1 lbs

Application Type: Oil burner ignition system

Brand: Beckett (Genuine OEM)

Condition: New

Typical Applications

Wayne E burner systems (120VAC)

Hot water pressure washer burners

Industrial and commercial heating equipment

Oil burner ignition replacements

Performance Benefits

• Strong ignition output for fast, consistent burner startup
• Durable, moisture-resistant design for harsh environments
• Proper Wayne E base configuration for seamless installation
• Heat- and chemical-resistant housing for extended service life
• Reliable performance for efficient burner operation
