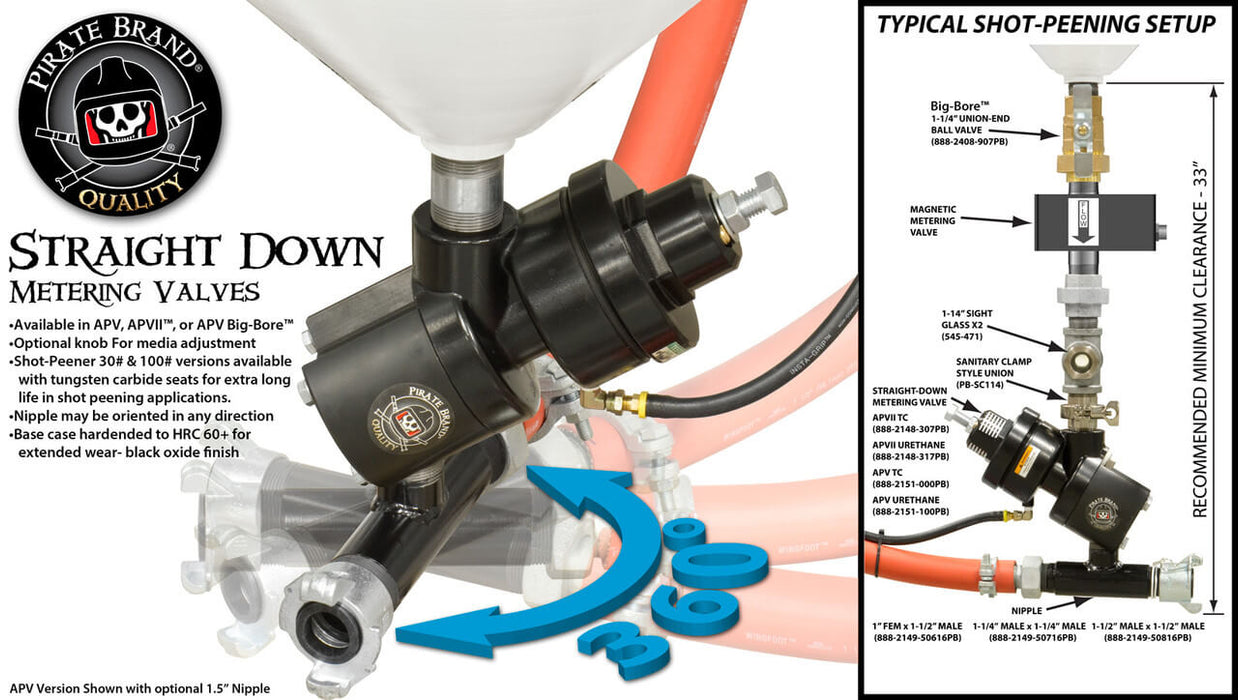

APV Big-Bore™ Straight-Down Metering Valve – Tungsten Carbide Sleeve

Model: 888-2151-200PB
Category: Surface Preparation → Sandblasting Equipment → Abrasive Metering Valves
Type: Big-Bore™ Abrasive Metering Valve (Straight-Down, Tungsten Carbide Sleeve)

The APV Big-Bore™ Straight-Down Metering Valve – Tungsten Carbide Sleeve is a high-capacity, heavy-duty valve engineered for maximum abrasive flow in large-nozzle blasting applications. Designed for demanding industrial environments, this valve is ideal for use with #8, #10, and #12 nozzles, as well as spin blasters with 5/16" and larger nozzles, where standard valves may restrict performance.

Key Features & Benefits

• Designed for high-flow Big-Bore™ blasting applications
• Ideal for #8, #10, #12 nozzles and 5/16"+ spin blasters
• Solid tungsten carbide sleeve for superior wear resistance
• Straight-down design for efficient abrasive flow
• Case hardened base (HRC 60+) for extended service life
• Black oxide finish for corrosion resistance
• Bolt-stop mechanism for semi-tamper-proof adjustment
• Compatible with adjustable pipe nipple (sold separately)
• Built for heavy-duty industrial sandblasting

Technical Specifications

Product Name: Big-Bore™ Abrasive Metering Valve (Straight-Down)
Model / Part Number: 888-2151-200PB
Valve Type: Straight-Down Configuration
Sleeve Material: Tungsten Carbide
Base Hardness: HRC 60+
Finish: Black Oxide
Weight: 18.00 lbs
Nipple: Not Included (sold separately)
Function: High-Volume Abrasive Flow Control
Compatibility: Schmidt / Axxiom / U.S. Filter
OEM Cross Reference: 2151-200
Condition: New

Recommended System Upgrades

For optimal performance when upgrading to a Big-Bore™ valve, it is recommended to also upgrade:

• Automatic Air Valve → Big-Gun™ Full Flow Version
• Union End Ball Valve → Big-Bore™ Version

This ensures the entire system can support increased airflow and abrasive volume.

Typical Applications

• High-production industrial sandblasting
• Large nozzle blasting operations
• Spin blasting systems
• Surface preparation and coating removal
• Heavy-duty blasting environments

Performance Benefits

• Maximizes abrasive flow for large-nozzle setups
• Reduces flow restriction compared to standard valves
• Extends service life with tungsten carbide internals
• Maintains consistent, high-volume output
• Improves efficiency and productivity in demanding applications
