Mi-T-M EPS-0607-0VF3M Mobile ePowerStation – Genuine OEM 6000-Watt Portable Battery Power Station, 7.0kWh Lithium-Ion

Model Number: EPS-0607-0VF3M
Category: Portable Power Equipment → Battery Power Stations → Mobile ePowerStations
Type: Mi-T-M EPS-0607-0VF3M Mobile ePowerStation – Genuine OEM 6000-Watt Portable Battery Power Station with 7.0kWh Vanguard Lithium-Ion Battery

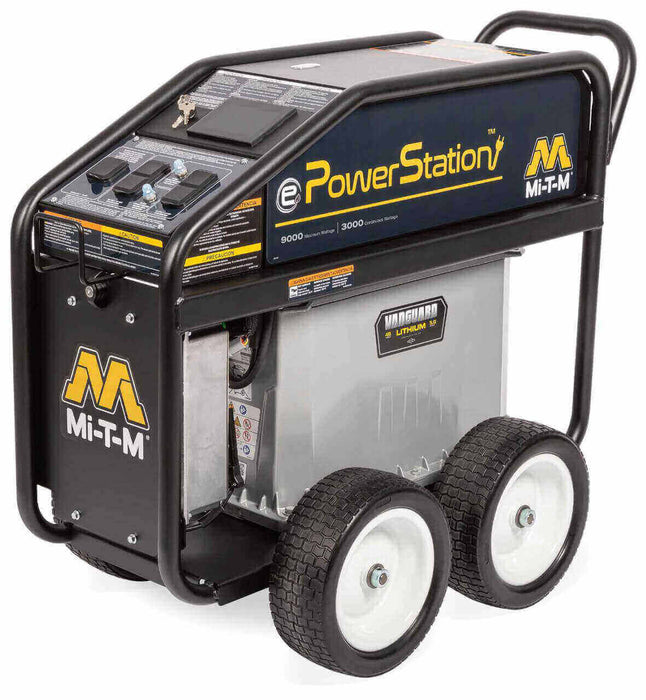

The Mi-T-M EPS-0607-0VF3M Mobile ePowerStation is a professional-grade portable battery power system designed to provide quiet, fuel-free electricity for demanding commercial, industrial, construction, event, and emergency-power applications. Its 6,000-watt inverter delivers 120V/240V single-phase power, while its 7.0kWh Vanguard lithium-ion battery supplies substantial energy storage without the fuel, exhaust fumes, or engine noise associated with conventional generators.

Key Features & Benefits

• Model Number: EPS-0607-0VF3M
• Genuine OEM Mi-T-M mobile power system
• 6,000 watts of continuous output
• 18,000-watt maximum output for up to 10 seconds
• 7.0kWh Vanguard lithium-ion battery
• Nickel manganese cobalt battery-cell chemistry
• 120V/240V, 50A/25A AC output
• Single-phase, 60Hz power
• Supports simultaneous charging and discharging
• Integrated battery-management system
• Advanced operating and diagnostic display
• Built-in runtime calculator
• Water-resistant battery and charger
• Powder-coated steel frame
• 13-inch flat-free tires
• Locking tire brake
• Keyed security lock secures the EBOX
• Includes a standard 120V charging cord
• Customizable optional EBOX receptacle configurations
• Battery service and recycling available through authorized Vanguard service centers

Technical Specifications

• Model Number: EPS-0607-0VF3M
• Manufacturer: Mi-T-M
• Product Type: Mobile Battery Power Station
• Continuous Output: 6,000 Watts
• Maximum Output: 18,000 Watts for 10 Seconds
• AC Output Voltage: 120V/240V
• Output Current: 50A at 120V / 25A at 240V
• Frequency: 60Hz
• Phase: Single Phase
• Inverter Rating: 6,000 Watts
• Charger Rating: 3,000 Watts
• Battery Capacity: 7.0kWh
• Battery Voltage: 48V DC
• Battery Type: Lithium-Ion
• Cell Chemistry: Nickel Manganese Cobalt
• Battery Lifecycle Rating: 2,000 Cycles to 80% Capacity
• Simultaneous Charging and Discharging: Yes
• Standard Charging Cord: 120V
• Battery and Charger: Water Resistant
• Frame Material: Powder-Coated Steel
• Tire Size: 13 Inches
• Tire Type: Flat Free
• Parking System: Locking Tire Brake
• Security Feature: Keyed EBOX Lock

These electrical and battery specifications are listed in the official Mi-T-M ePowerStation product sheet.

Charging Performance

• Charger Output Rating: 3,000 Watts
• Charger Input Voltage: 120V/240V AC
• Charger Input Current: 16A at 120V / 12.5A at 240V
• Input Frequency: 60Hz
• Input Phase: Single Phase
• Charging Time at 120V, 0–100%: Approximately 6 Hours
• Charging Time at 240V, 0–100%: Approximately 3 Hours
• Charging Time at 120V, 0–80%: Approximately 4 Hours
• Charging Time at 240V, 0–80%: Approximately 2 Hours
• Simultaneous Charging and Power Delivery: Supported

A 120V charging cord is supplied with the unit. The 240V fast-charging cord is available separately as Mi-T-M part number 32-1382. Charging time may vary with battery temperature, battery condition, available input power, and any connected load.

Digital Display Functions

Home Screen

• Displays available battery power
• Shows estimated remaining runtime
• Provides an at-a-glance view of system operation

Diagnostic Screen

• Displays battery operating status
• Monitors charger performance
• Provides alerts and diagnostic information

Runtime Screen

• Shows the currently applied electrical load
• Displays the battery state of charge
• Provides projected runtime under the current load

Built-In Runtime Calculator

• Estimates runtime based on the anticipated load
• Accounts for the battery’s current charge level
• Helps users plan operating and charging intervals

Actual runtime depends on the connected load, startup demand, duty cycle, battery condition, and environmental temperature.

Optional EBOX Receptacle Configurations

The EPS-0607-0VF3M uses a customizable EBOX system with a handle, cord holder, and quick-connect wiring plug. Four receptacle arrangements are available:

EBOX-0001-M

• One 20A, 120V GFCI receptacle with USB and USB-C
• One 30A, 120V twist-lock receptacle
• One 30A, 120V/240V twist-lock receptacle

EBOX-0002-M

• One 30A, 120V twist-lock receptacle
• Two 20A, 120V GFCI receptacles with USB and USB-C

EBOX-0003-M

• Four 20A, 120V GFCI receptacles with USB and USB-C

EBOX-0004-M

• One 30A, 120V/240V twist-lock receptacle
• Two 20A, 120V GFCI receptacles with USB and USB-C

Important: Mi-T-M states that the EBOX option must be ordered with the power station and cannot be added later. Select the required receptacle configuration before ordering. Mi-T-M EPS-0607-0VF3M specifications

Battery Technology

The EPS-0607-0VF3M uses Vanguard lithium-ion technology with nickel manganese cobalt cells. Its integrated battery-management system monitors:

• Individual cell voltage
• Electrical current
• Internal resistance
• Cell and battery temperature
• Charging and discharging activity
• Overall battery operating condition

The battery is serviceable and fully recyclable through an authorized Vanguard battery service center.

Typical Applications

The Mi-T-M EPS-0607-0VF3M may be suitable for powering compatible:

• Construction tools and equipment
• Mobile service and repair equipment
• Food trucks and concession equipment
• Event and production systems
• Lighting and communication equipment
• Sensitive electronics
• Indoor construction projects
• Off-hours maintenance operations
• Commercial and industrial electrical loads
• Emergency and backup-power equipment
• Applications where engine noise or exhaust emissions are undesirable

Always verify the continuous wattage, startup demand, voltage, current, frequency, receptacle type, and grounding requirements of every connected device.

Operating Temperature Ranges

• Operating Temperature: 14°F to 104°F
• Charging Temperature: 32°F to 113°F
• Storage Temperature, Up to One Month: −4°F to 140°F
• Storage Temperature, Up to One Year: −4°F to 77°F

Operating, charging, or storing the battery outside its approved temperature range may reduce performance or trigger protective battery-management functions.

Dimensions & Weight

• Length: 45.13 Inches
• Width: 24.00 Inches
• Height: 35.00 Inches
• Net Weight: 305 Pounds
• Shipping Weight: 380 Pounds

Verify doorway clearance, vehicle payload, floor loading, storage space, lift-gate availability, and unloading requirements before delivery.

Battery Safety & Certifications

• Integrated Battery-Management System
• UL 1642 Cell Safety Certification
• UN 38.3 Shipping Certification
• UL/IEC Battery-Pack Performance
• REACH Environmental Compliance
• Battery Directive 2006/66/EC Compliance
• FCC Title 47 CFR Part 15 Class B Compliance
• CISPR 22-10 EMC/EMI Compliance

Refer to the unit nameplate and current manufacturer documentation when certification is required for a particular workplace, contract, or jurisdiction.

Operating & Safety Notes

• Read the complete operator’s manual before operation.
• Inspect the power station, charging cord, EBOX, frame, tires, and brake before use.
• Verify that every connected device matches the selected 120V or 240V output.
• Calculate the combined running and starting demand of all connected loads.
• Do not exceed the 6,000-watt continuous-output rating.
• Do not exceed the 18,000-watt, 10-second maximum-output capability.
• Connect the charger only to a properly rated and grounded electrical supply.
• Use only approved Mi-T-M charging cords and EBOX configurations.
• Keep ventilation openings unobstructed.
• Engage the tire brake before operating the unit.
• Do not use damaged cords, receptacles, or connected equipment.
• Keep the inverter and electrical connections protected from precipitation and standing water.
• Secure the unit with properly rated restraints during transportation.
• Do not open, crush, puncture, modify, or burn the battery.
• Follow all display alerts and battery-management instructions.
• Have battery and electrical repairs performed by qualified personnel.

Important: The battery and charger are water resistant, but the inverter remains sensitive to environmental exposure. Water resistance does not mean the complete power station is waterproof.

Available Accessories

• 32-1382: 240V Fast-Charging Cord
• AW-5090-0012: Lifting Hook
• AW-5740-0024: Stationary Conversion Kit

The stationary kit removes the wheel arrangement and adds a stationary leg. Confirm accessory compatibility and installation requirements before ordering.

Maintenance Recommendations

• Check the display regularly for alerts or diagnostic messages.
• Inspect the battery, charger, inverter, and electrical connections.
• Keep vents and electrical components clean and unobstructed.
• Inspect charging cords for cuts, abrasion, or connector damage.
• Check the tires and locking brake before moving the unit.
• Recharge and store the battery according to manufacturer instructions.
• Maintain the specified storage charge during extended inactivity.
• Protect the unit from extreme temperatures and excessive moisture.
• Do not install unapproved batteries, chargers, inverters, or receptacles.
• Arrange battery service through an authorized Vanguard service center.
• Recycle the battery through an authorized service or recycling facility.
• Follow all scheduled inspection and service intervals.

Warranty Information

• Inverter Warranty: 1 Year
• Unit Warranty: 2 Years
• Charger Warranty: 3 Years
• Battery Warranty: 8 Years

Warranty coverage may be subject to registration, maintenance requirements, operating-hour limitations, commercial-use provisions, and other manufacturer terms. Consult the current Mi-T-M and Vanguard warranty documentation for complete coverage details.
