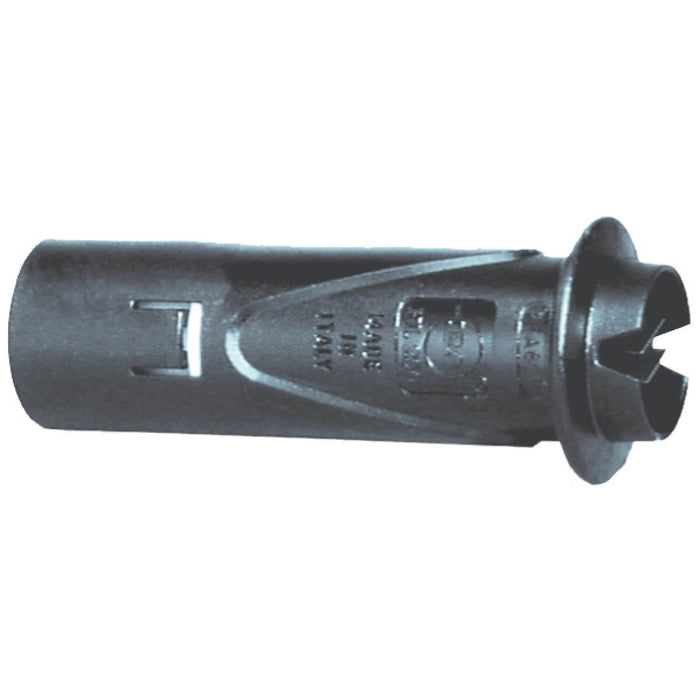

GP Hi-Lo Vari-Nozzle 5.0 – Light Purple Dot Adjustable Spray Tip

Model: YHL5.0
Category: Pressure Washer Accessories → Adjustable & Specialty Spray Nozzles
Type: Variable Spray Nozzle – High/Low Pressure, 5.0 Orifice (Light Purple Dot)

The GP Hi-Lo Vari-Nozzle 5.0 (Light Purple Dot) is a commercial-grade adjustable spray tip designed for higher-flow pressure washer systems. With a quick twist, operators can switch between high-pressure rinsing and low-pressure chemical application — eliminating the need to swap nozzles during jobs.

Key Features

• #5.0 Orifice – Light Purple Dot Coded

• Hi-Lo Operation – Instantly switch between rinse & soap modes

• Variable Spray Angle – Averages 15° for controlled impact

• High-Impact Cleaning Design

• Durable Construction – Brass, steel, Buna-N, and engineered plastic

• Field-Friendly Color Identification

Technical Specifications

• Model: YHL50

• Orifice Size: 5.0

• Color Code: Light Purple

• Maximum Pressure: 4050 PSI

• Rated Pressure: 3650 PSI

• Maximum Flow: 10.5 GPM

• Maximum Temperature: 195°F

• Inlet: 1/4" BSP-F

• Weight: 0.40 lbs.

Ideal Applications

• Large surface cleaning

• Fleet washing

• Agricultural equipment

• Commercial pressure washer systems

• High GPM machines requiring larger orifice size

SEO Keywords

• GP YHL50 Hi-Lo Vari Nozzle

• 5.0 purple adjustable spray tip

• High low pressure washer nozzle

• Variable spray pressure washer tip

• 1/4" BSP-F adjustable nozzle

• Commercial adjustable spray tip

Pro Tip for Customers

The 5.0 orifice is best suited for higher GPM machines. Proper nozzle sizing ensures your pump maintains rated pressure without strain. If unsure, match the nozzle size to your machine’s GPM rating.
