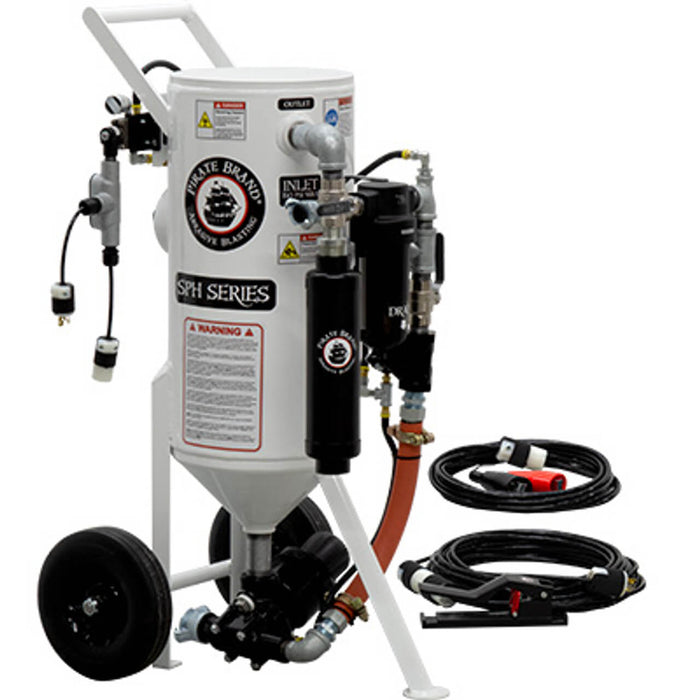

1.5 cu ft Portable Electric 12 VDC Sandblast Pot – Pressure Hold System with APV II & Tungsten Carbide Sleeve for Durable Performance

Part Number: 888-0132-33601PB
Compatible With: SCHMIDT / U.S. FILTER / AXXIOM #0132-336-01
Weight: 175.50 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The 1.5 cu ft Portable Electric Sandblast Pot delivers the durability and control needed for efficient on-site abrasive blasting.
Featuring an Electric 12 VDC Pressure Hold System, the Automatic Plunger Valve II (APV II) with a Tungsten Carbide Sleeve, and an Auto Air Valve, this model ensures smooth operation, reduced abrasive consumption, and extended component life.
Built for professionals performing industrial maintenance, coating removal, and metal preparation in field environments.

Key Features & Benefits

A. Pressure Vessel

• 1.5 cu ft (43 L) capacity rated for 150 PSI (10.3 BAR)

• Certified to A.S.M.E. Section VIII Division 1

• C.R.N. Approved for all provinces

B. Pressure Hold System

• Minimizes abrasive waste and air loss between cycles

• Reduces moisture and flow inconsistencies

• Enables smoother starts and stops for continuous performance

C. Electric Controls (12 VDC)

• Faster start/stop response for blast hose runs exceeding 100 ft

• Mitigates freezing issues in cold environments

• Heavy-duty filtered control valve for precise air management

D. Heavy-Duty Moisture Separator

• Removes condensation and debris to maintain dry airflow and media consistency

E. 1″ Galvanized Piping

• Provides corrosion resistance and durability for industrial use

F. Full-Port Ball Valves

• Maximizes airflow while maintaining pressure integrity

G. Schedule 80 Heavy-Duty Nipples

• Thick-wall construction for abrasive resistance and extended life

H. Bolt Clamps on Pusher Line

• Simplifies in-field repairs and reduces downtime

I. Normally Closed Valve System

• APV II (Auto Plunger Valve II):

  • Quadruple-seal design eliminates air and abrasive carry-over

  • Prevents seal jamming in low-pressure or steel-media applications

  • Solid tungsten carbide plunger and sleeve for maximum wear resistance

  • 1″ NPT cleanout port allows for obstruction removal or vessel draining

• Auto Air Valve: Delivers quick blast starts and stops

• Filtered Control Valve: Reduces stopping time and air consumption

Specifications

Applications

• Field maintenance and surface preparation

• Industrial equipment restoration

• Marine and pipeline coating removal

• Fabrication and metal prep operations

Compatibility

• OEM Replacement For: SCHMIDT MANUFACTURING / U.S. FILTER / AXXIOM #0132-336-01

• When using steel abrasives, requires Electric Control Handle #2 (888-2263-401PB) and Sealed Connector (PB-31131)
