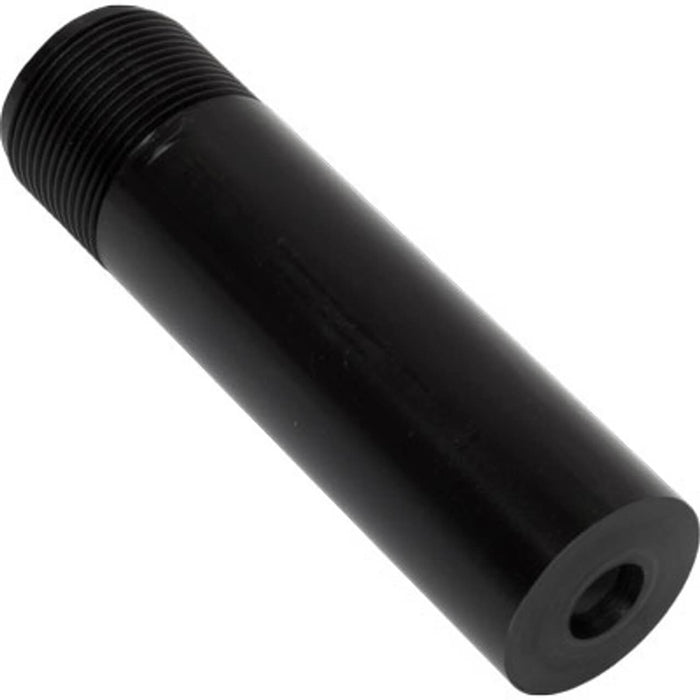

Nozzle – Tungsten Carbide Long Venturi, 7/16" Bore, 1" Entry, 1-1/4" NPSM Thread, All-Poly Jacket

Part Number: 1201-1176
Weight: 2.00 lbs

The 1201-1176 Tungsten Carbide Long Venturi Nozzle is built for demanding abrasive blasting operations requiring maximum durability, high-velocity performance, and long service life. Featuring a tough tungsten carbide liner, this nozzle withstands aggressive abrasives—including steel grit, aluminum oxide, garnet, and slag—making it ideal for industrial, shipyard, and heavy-production blasting applications.

The 7/16" bore produces a strong, fast, high-volume blast stream suitable for heavy material removal, steel preparation, coating removal, and large-surface blasting. Its long venturi design significantly increases abrasive velocity and widens the blast pattern, improving cleaning speed, coverage, and overall productivity.

The durable all-poly jacket provides excellent impact resistance, corrosion protection, and lightweight handling, while the 1-1/4" NPSM threaded connection ensures compatibility with standard screw-on nozzle holders used across industrial blasting systems.

Specifications

Key Features & Performance Advantages

Tungsten Carbide Liner — Extreme Wear Resistance

• Withstands aggressive abrasive media

• Long service life under continuous use

• Ideal for heavy-duty blasting and industrial cleaning

Long Venturi Geometry — Maximum Velocity & Efficiency

• Produces a wide, high-speed blast pattern

• Increases productivity and surface coverage

• Helps reduce abrasive consumption compared to standard nozzles

All-Poly Protective Jacket

• Lightweight, corrosion-resistant exterior

• Absorbs impact and protects the carbide liner

• Improves handling comfort for extended blasting sessions

1-1/4" NPSM Thread

• Secure, industry-standard screw-on connection

• Vibration-resistant during high-pressure blasting

• Compatible with most professional nozzle holders

OEM Cross-Reference

Ideal Applications

This nozzle is excellent for:

• Structural steel blasting

• Shipyard and marine blasting

• Coating and rust removal

• Tank, pipeline, and industrial maintenance

• High-production contractor environments
