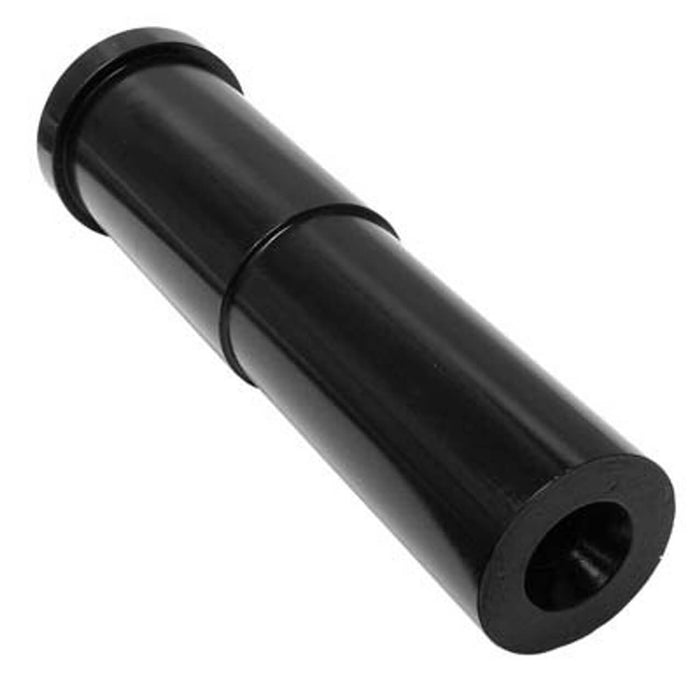

Nozzle – Tungsten Carbide Long Venturi, 7/16" Bore, 1-1/4" Entry, Flanged Poly Jacket

Part Number: 888-5001-207PB
Weight: 2.00 lbs

The 888-5001-207PB Tungsten Carbide Long Venturi Nozzle is engineered for heavy-duty abrasive blasting applications requiring maximum durability, high velocity, and long service life. Built with a rugged tungsten carbide liner, this nozzle delivers exceptional wear resistance when used with aggressive media such as steel grit, aluminum oxide, slag, and garnet—making it an ideal choice for industrial blasting contractors and high-production environments.

The 7/16" bore produces a powerful, high-volume blast stream capable of fast material removal, large-surface cleaning, and high-efficiency coating/scale removal. Combined with the long venturi design, this nozzle accelerates abrasive flow to produce a wider, faster, and more energy-efficient blast pattern that significantly improves productivity and reduces abrasive usage.

The flanged poly jacket provides enhanced protection, impact resistance, corrosion resistance, and comfortable handling. The 1-1/4" wide-entry inlet ensures smooth abrasive flow with minimal pressure loss—optimal for high-capacity blasting systems.

Specifications

Key Features & Performance Advantages

Tungsten Carbide Liner — Extreme Wear Life

• Withstands harsh, high-velocity abrasive media

• Ideal for aggressive blasting environments

• Long service life reduces overall operating costs

Long Venturi Geometry — Maximum Speed & Coverage

• Produces a wide, high-velocity blast stream

• Increases cleaning rates and surface coverage

• Offers greater efficiency compared to short-style nozzles

Wide-Entry (1-1/4") Inlet

• Allows smooth, unrestricted abrasive flow

• Reduces energy loss and improves acceleration

• Perfect for heavy-duty, high-CFM blasting systems

Flanged Poly Protective Jacket

• Durable, lightweight, and corrosion-resistant

• Protects carbide liner from impact damage

• Enhances operator comfort during long shifts

OEM Cross-Reference

Ideal Applications

Best suited for:

• Structural steel blasting

• Shipyard & marine blasting

• Coating, rust & scale removal

• Industrial maintenance

• High-production blasting environments
