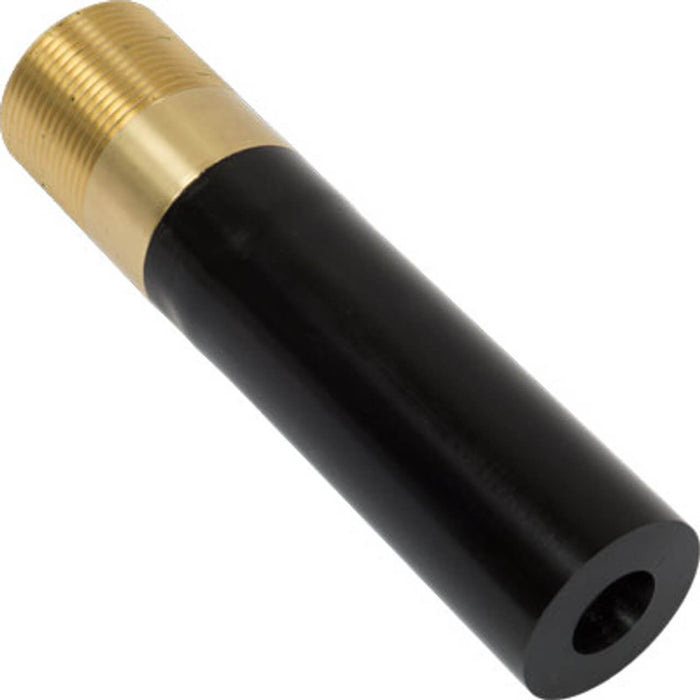

Nozzle – Tungsten Carbide Long Venturi, 3/16" Bore, 1" Entry, 1-1/4" Brass NPSM Thread, Poly Jacket

Part Number: 501-742
Weight: 1.35 lbs

The 501-742 Tungsten Carbide Long Venturi Nozzle is engineered for high-efficiency abrasive blasting, offering exceptional wear resistance, strong cutting power, and long service life under demanding conditions. Built with a durable tungsten carbide liner, this nozzle provides outstanding performance when used with aggressive abrasives such as steel grit, aluminum oxide, slag, and garnet.

Its 3/16" bore delivers a precise, high-velocity blast pattern ideal for detail-focused industrial cleaning, weld prep, spot blasting, and surface preparation where control and power must be balanced. The long venturi design accelerates abrasive media for increased productivity, improved cleaning speed, and reduced abrasive consumption.

The robust poly jacket protects the carbide liner while offering excellent impact resistance and improved handling. The 1-1/4" Brass NPSM thread ensures compatibility with standard industrial screw-on nozzle holders.

⚠️ IMPORTANT WARNING:
Brass-threaded nozzles can seize when paired with brass nozzle holders.
To prevent galling or permanent thread lock, use aluminum or composite holders.

Specifications

Key Features & Performance Advantages

Tungsten Carbide Liner — Extreme Wear Life

• Superior resistance to abrasion

• Ideal for aggressive media and heavy-duty applications

• Long-lasting performance for industrial blasting contractors

Long Venturi Geometry — Velocity, Efficiency & Coverage

• Produces a fast, energy-efficient blast stream

• Increases surface cleaning speed

• Reduces abrasive usage while maintaining strong cutting performance

Poly Jacket — Protective & Durable

• Impact-resistant exterior shields the carbide liner

• Lightweight handling compared to metal-jacketed options

• Corrosion-resistant design holds up in harsh blasting environments

1-1/4" Brass NPSM Thread

• Industry-standard screw-on connection

• Strong, vibration-resistant hold

• Use with non-brass holders to avoid thread galling

OEM Cross-Reference

Ideal Applications

This nozzle performs exceptionally in:

• Precision blasting

• Weld seam cleaning

• Small-area rust, coating & scale removal

• Fabrication shops & metal finishing

• High-pressure blasting with aggressive media
