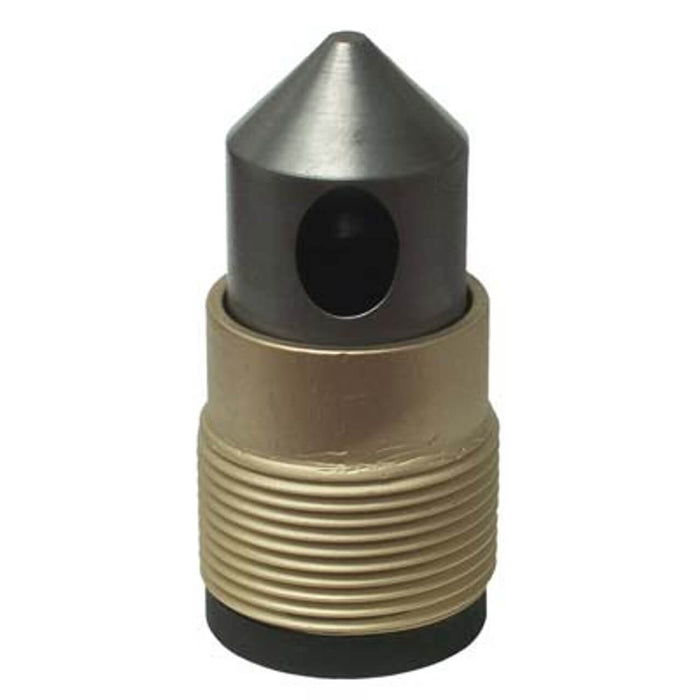

Nozzle – Tungsten Carbide 45° Angle, 3/8" Bore, 1-1/4" Brass Thread, Single Outlet

Part Number: 501-902
Weight: 1.80 lbs

The 501-902 Tungsten Carbide 45° Angle Nozzle is engineered for precision blasting in hard-to-reach areas, inside corners, behind flanges, and other locations where a standard straight nozzle cannot effectively access. Built with a durable tungsten carbide liner, this angled nozzle provides long wear life and consistent performance when used with aggressive abrasives including aluminum oxide, garnet, slag, and steel grit.

Designed with a single 45° outlet, this nozzle directs abrasive at a controlled angle, enabling operators to blast surfaces that would otherwise require repositioning or costly disassembly. The 3/8" bore produces a focused, high-impact stream ideal for tight-access cleaning, weld preparation, rust removal, and detailed surface conditioning.

The 1-1/4" brass threaded connection ensures strong compatibility with standard NPSM-style nozzle holders. A heavy-duty design and 1.80 lb weight provide stability and longevity even in demanding industrial environments.

⚠️ WARNING: Brass threaded nozzles should not be used with brass nozzle holders, as they may seize or become inseparable over time.

Specifications

Key Features & Performance Advantages

45° Angled Outlet – Reach Hidden Surfaces

• Blasts areas inaccessible to straight nozzles

• Perfect for inner corners, flanges, brackets, seams & behind structures

• Reduces repositioning time and improves productivity

Tungsten Carbide Liner – Maximum Durability

• Exceptional wear life with abrasive blasting media

• Maintains consistent performance under extended use

• Ideal for heavy-duty industrial environments

3/8" Bore – High-Impact Precision

• Produces a tight, powerful blast stream

• Suitable for weld prep, rust removal & detail blasting

• Optimized for applications requiring controlled angle delivery

1-1/4" Brass Threads

• Reliable, secure connection to standard nozzle holders

• Not recommended for use with brass holders

OEM Cross-Reference

Ideal Applications

Perfect for blasting in:

• Inside corners and tight recesses

• Behind pipes, brackets, and flanges

• Structural steel assemblies

• Weld prep and joint cleaning

• Machinery components & confined areas
