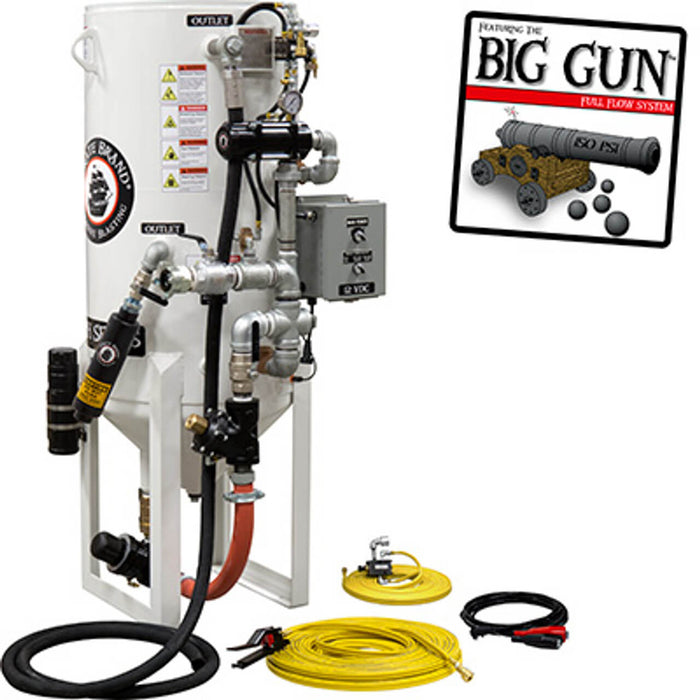

8.0 cu ft Stationary Dual-Chamber Pneumatic Sandblast Pot – Single Outlet with Wall-Mounted Abrasive Cut-Off for Industrial Sandblasting

Part Number: 888-3631-33944PB-E
Capacity: 8.0 cu ft (225 liters)
Operating Pressure: 150 PSI (10.3 BAR)
System Type: Dual-Chamber Pneumatic Pressure Hold with Wall-Mounted Abrasive Cut-Off
Height: 69" OAH
Warranty: 5 Year / 10 Year Limited Warranty*

Overview

The Pirate Brand® 8.0 cu ft Stationary Dual-Chamber Pneumatic Blast Pot is the ideal solution for high-output, continuous sandblasting in industrial settings. This system features dual-chamber technology to allow for continuous blasting operations without the need for pauses for refilling. The hose-mounted abrasive cut-off ensures that you can shut off abrasive flow easily, providing cleaner and more precise blasting.

The Big Gun Full Flow System maximizes the performance of this system, ensuring that there is no pressure drop for optimal abrasive and air flow to the nozzle.

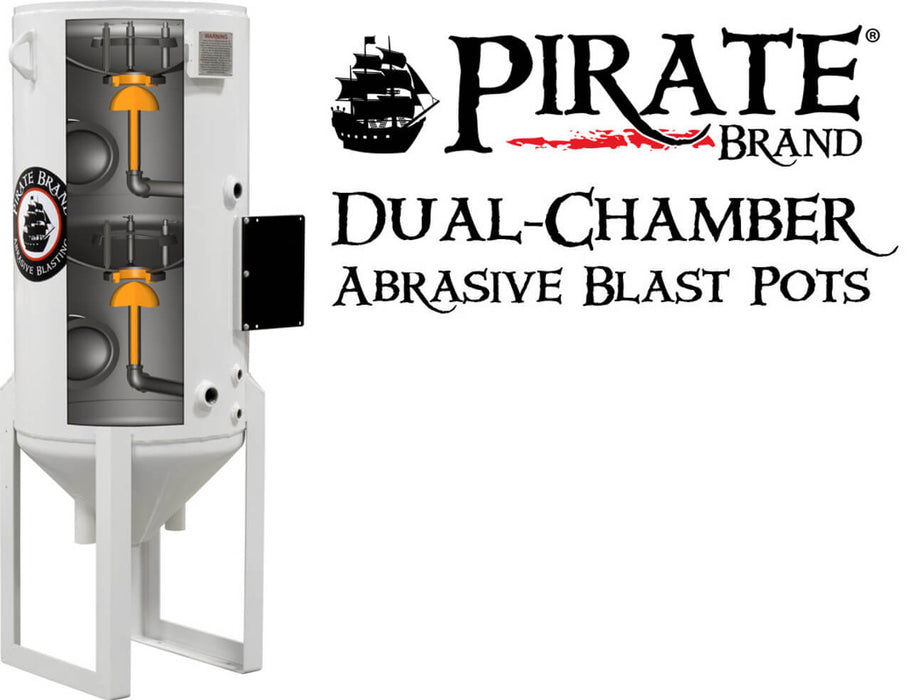

Dual-Chamber System

The dual-chamber system ensures that the blast pot continuously refills while remaining pressurized, significantly increasing productivity by eliminating downtime for refilling. This system is ideal for environments that require uninterrupted blasting cycles.

Benefits of the Dual-Chamber System:

• Continuous blasting: The upper chamber refills while the lower chamber is still pressurized, allowing for non-stop operation.

• Increased productivity: No need to stop blasting to refill the pot.

• Durability: Designed to withstand high-demand environments with frequent on-and-off blasting cycles.

Key Features & Benefits

• 8.0 cu ft Capacity – Upper Chamber: 3.25 cu ft (2.69 usable), Lower Chamber: 4.19 cu ft (4.04 usable).

• Pneumatic Pressure Hold System – Ensures steady pressure, ideal for consistent and efficient sandblasting.

• Big Gun Full Flow System – Zero pressure drop for efficient abrasive and air flow. For every 1 PSI lost or gained in abrasive blasting, a 1.5% production increase is achieved.

• APV II Metering Valve with Tungsten Carbide Sleeve – Offers precise metering control, designed for high-durability use, especially with steel abrasives.

• Wall-Mounted Abrasive Cut-Off – Provides a clean and safe way to shut off abrasive media remotely.

• Heavy-Duty Moisture Separator – Protects against moisture and ensures optimal blasting performance.

• Heavy-Duty Galvanized Piping – 1-1/2" piping with corrosion resistance, ensuring long-lasting performance.

• Union End Ball Valves – Make maintenance and repair easier by allowing you to shut off abrasive at the bottom of the pot.

• 15' Blowdown Hose Assembly – Allows remote depressurizing of the system for greater safety and convenience.

• Skirted Pop-Up Gasket – Helps prevent abrasive burping and maintains a tight seal, essential when using large grit sizes.

• Full Load Lifting Eyes – Facilitates safe lifting and transportation for placement and maintenance.

Technical Specifications

Performance Highlights

• Continuous Blasting: The dual-chamber system provides a continuous flow of abrasive media, ensuring uninterrupted blasting.

• Precision Metering: The APV II valve ensures precise control of abrasive flow and minimizes waste.

• Corrosion-Resistant: Built with galvanized piping and durable materials to withstand harsh working conditions.

• Remote Control: The wall-mounted abrasive cut-off and remote blowdown hose assembly ensure easy operation and safety.
