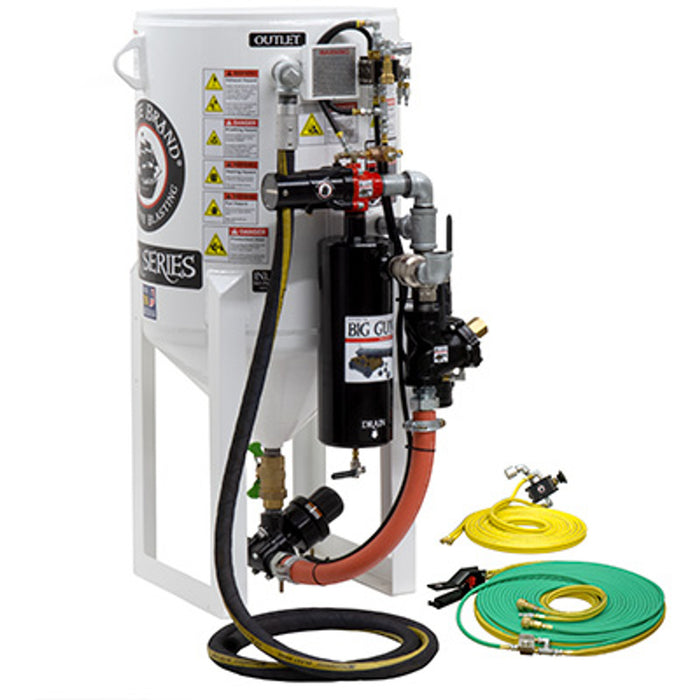

6.5 cu ft Stationary Pneumatic Blast Pot – Short-Cycle Pressure Release System, 54″ Overall Height (OAH)

Part Number: 888-1431-33954PB-E
Capacity: 6.5 cu ft (185 liters)
Pressure Rating: 150 PSI (10.3 BAR)
System Type: Short-Cycle Pressure Release (Pneumatic)
Height: 54″ OAH
Warranty: 5 Year / 10 Year Limited Warranty *

Overview

The Pirate Brand® 6.5 cu ft Short-Cycle Stationary Pneumatic Blast Pot is built for industrial users who demand reliability and speed during rapid on-off blasting cycles.
Unlike standard pressure-release systems, which can overfill when blasting in short intervals, the Short-Cycle System Saver keeps the vessel pressurized between blasts, eliminating downtime and protecting internal components from abrasive overfill.

This design offers the same convenience as standard pressure-release units but with faster restart capability and reduced pop-up wear—ideal for blast rooms, production facilities, and short-burst operations.

Short-Cycle System Advantage

Standard SPR blasters automatically refill when depressurized, which can cause abrasive overfilling and seal failure during frequent cycling. The Short-Cycle System solves this by:

• Remaining pressurized between short blasts (under 10 minutes).

• Using a remote palm-button blow-down for quick, on-demand depressurization and refill.

• Preventing “burping” and premature pop-up damage, extending service life.

This results in smoother control, consistent blasting pressure, and increased equipment longevity.

Key Features & Benefits

• Short-Cycle Pressure Release System – Stays pressurized between cycles; depressurizes instantly when palm-button control is activated.

• Low-Maintenance Design – Simplified construction for dependable field performance and easy troubleshooting.

• Big Gun Full Flow System – Zero pressure drop path for air and abrasive, ensuring maximum output.

• APV II Metering Valve (Tungsten Carbide Sleeve) – Delivers precision abrasive control with superior wear resistance.

• Combination Valve Design – Automatically stops air flow and releases vessel pressure on command.

• Heavy-Duty Moisture Separator – Keeps air supply clean and dry for consistent media flow.

• 1-1/2″ Galvanized Piping – Resists corrosion and ensures long-term durability.

• Union End Ball Valve – Enables abrasive isolation for service without dumping the pot.

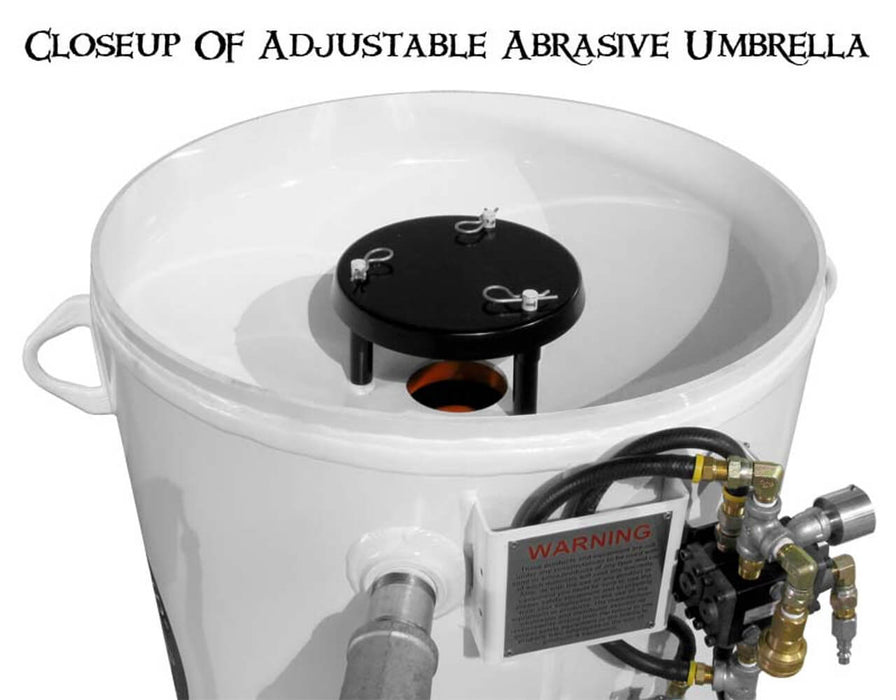

• Adjustable 9″ Spider Assembly – Adapts to various abrasive media types and prevents pop-up sealing issues.

• Skirted Pop-Up Gasket – Designed to cut through abrasive buildup for improved sealing and reduced burping.

• Full Load Lifting Eyes – Simplifies handling and transport for installation or maintenance.

Specifications

Performance Notes

• Zero pressure-drop airflow provides up to 1.5 % production gain per 1 PSI maintained.

• Designed for #7 and #8 blast nozzles and short-burst operations.

• Bolt-clamp pusher line allows fast field repair.

• Rugged construction ensures durability under frequent cycling conditions.
