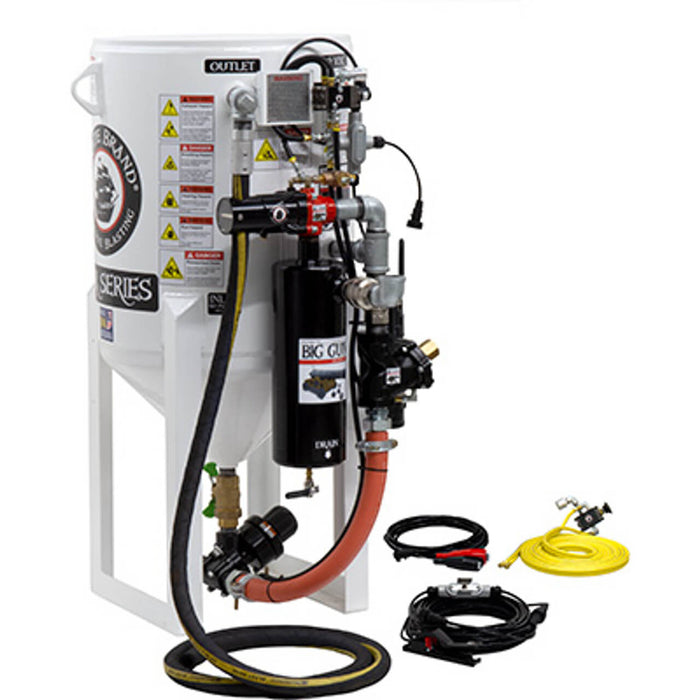

6.5 cu ft Stationary Electric 12VDC Blast Pot – Short-Cycle System with APV II and 1-1/2″ Piping with Big Gun Moisture Separator

Part Number: 888-4432-33954PB-E
Capacity: 6.5 cu ft (185 liters)
Operating Pressure: 150 PSI (10.3 BAR)
System Type: Short-Cycle Pressure Release (Electric 12VDC)
Height: 54″ OAH
Warranty: 5 Year / 10 Year Limited Warranty *

Overview

The Pirate Brand® 6.5 cu ft Short-Cycle Stationary Electric Blast Pot is built for operators who demand fast cycling, reliable pressure retention, and consistent performance in high-frequency blasting environments.
Featuring the Short-Cycle System Saver, APV II metering valve, and Big Gun Full Flow System, this 12VDC electric model offers superior start/stop control, minimal downtime, and exceptional wear resistance for extended service life.

Ideal for blast rooms, industrial coating removal, and high-output abrasive blasting applications, this system maintains vessel pressure between cycles while providing quick depressurization on command for efficient refilling.

Short-Cycle System Advantage

Traditional pressure-release systems automatically vent between cycles, which can lead to overfilling during short-duration blasting.
The Short-Cycle System Saver eliminates this issue by keeping the blast pot pressurized until the palm-button blow-down is activated—preventing abrasive overflow, pop-up seal damage, and premature valve wear.

Key operational benefits include:

• Maintains steady internal pressure for consistent performance.

• Prevents abrasive “burping” and clogging issues.

• Rapid blow-down and refill without leaving the blast room.

• Improves component life and reduces maintenance downtime.

Key Features & Benefits

• Short-Cycle Pressure Release System – Remains pressurized between blasts; depressurizes instantly when the palm-button is engaged.

• 12VDC Electric Controls – Ideal for long hose runs and cold-weather conditions; provides faster response times.

• APV II Metering Valve (Tungsten Carbide Sleeve) – Premium abrasive flow control with quadruple-seal plunger design, solving jamming and carry-over problems.

• Combination Valve System – Dual-action design that halts blasting and relieves vessel pressure simultaneously.

• Big Gun Full Flow System – Zero-pressure-drop design that increases production by 1.5% per 1 PSI maintained.

• Heavy-Duty 1-1/2″ Galvanized Piping – Resists corrosion for extended equipment life.

• Big Gun Moisture Separator – Ensures clean, dry air flow for optimal media delivery.

• Union End Ball Valve – Allows maintenance without dumping abrasive.

• 9″ Adjustable Spider – Keeps abrasive load balanced and ensures reliable pop-up sealing.

• Skirted Pop-Up Gasket – Prevents abrasive leakage and enhances vessel sealing under load.

• Full Load Lifting Eyes – Simplifies transportation, installation, and maintenance.

Specifications

Performance Highlights

• Maintains full working pressure during quick on/off blasting cycles.

• Delivers maximum air and media flow with minimal pressure loss.

• Rugged design for continuous industrial operation.

• Provides optimal results with #7 and #8 nozzles.
