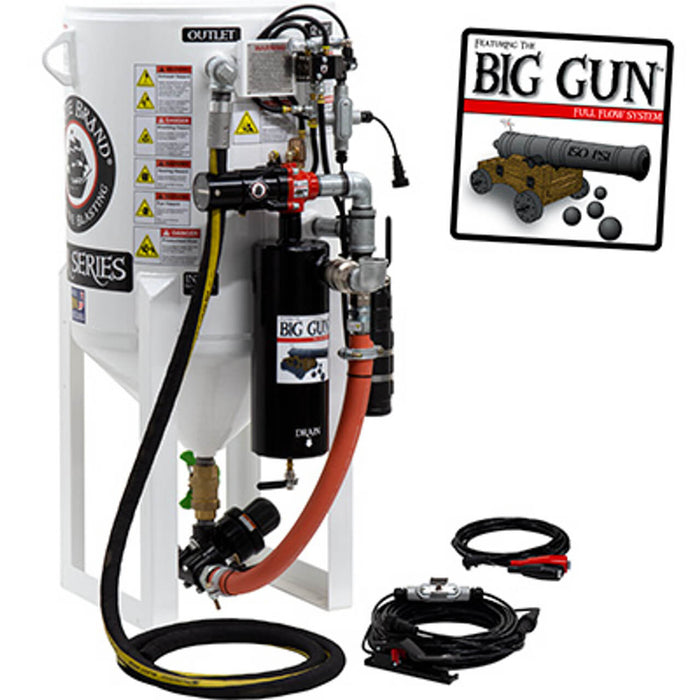

6.5 cu ft Stationary Electric 12 VDC Blast Pot – APV II Metering System with 1-1/2″ Piping

Part Number: 888-4432-33914PB-E
Rated Pressure: 150 PSI (10.3 BAR)
Capacity: 6.5 cu ft (185 L)
Overall Height: 54″ OAH
Warranty: 5 Year / 10 Year Limited Vessel

Overview

The Pirate Brand® 6.5 cu ft Stationary Electric 12VDC Blast Pot is a high-performance, fixed-location abrasive blasting system designed for industrial-scale operations.
Featuring the APV II Premium Metering Valve with a Tungsten Carbide Sleeve, this model ensures smooth media flow, long service life, and precise abrasive control.
Its Electric 12VDC Control System enhances responsiveness on long hose runs and provides faster start/stop actuation, while the Pressure Release System ensures automatic vessel depressurization for safety and ease of use.

📄 Documents:

• 📄 Brochure
• 📄 Manual
• 📄 How It Works
• 📄 Warranty

Key Features & Benefits

Pressure Release System

• Automatically vents vessel pressure when the control handle is released

• Simple, low-maintenance design for fast troubleshooting and serviceability

Electric 12VDC Control System

• Provides quick response for blast setups exceeding 100 ft of hose

• Reduces freezing issues in cold environments

• Heavy-duty filtered control valve speeds up blast stop/start cycles

Big Gun Full Flow System

• Zero pressure-drop path ensures full airflow to the nozzle

• Every 1 PSI gained improves blasting efficiency by ~1.5 %

• Ideal for #7 and #8 nozzles

• Full-port couplings ensure unrestricted air and abrasive flow

Advanced APV II / Combination Valve Assembly

• APV II Premium Metering Valve:

  • Quadruple plunger seal design eliminates jamming and carry-over problems

  • Solid Tungsten Carbide plunger & sleeve for exceptional wear life

  • 1″ NPT cleanout port allows access to obstructions and draining without removing valve

• Combination Valve:

  • 2-in-1 design simultaneously stops blasting and relieves vessel pressure

  • Relieving control handle minimizes air consumption and stopping time

Abrasive Cut-Off Function

• Integrated cut-off system allows operators to stop abrasive flow remotely

• Enables air-only cleaning or blow-off directly from the nozzle

• Reduces abrasive waste and enhances finishing control

Durable Construction

• ASME Section VIII Div. 1 vessel — CRN approved for all provinces

• 1-1/2″ galvanized piping for corrosion resistance

• Heavy-duty Big Gun Moisture Separator provides clean, dry air

• Schedule 80 nipples and full-port valves extend service life

• Bolt clamps simplify pusher line maintenance in the field

Ease of Use & Maintenance

• 15′ Blowdown Hose Assembly for remote venting

• 9″ Adjustable Spider supports multiple media types and improves sealing

• Skirted Pop-Up Gasket prevents abrasive “burping” and ensures tight sealing

• Union End Ball Valves enable servicing without dumping abrasive

• Full Load Lifting Eyes for safe placement and transport

Specifications

Applications

• Industrial blast booths and stationary operations

• Marine, shipyard, and bridge restoration work

• Steel fabrication and tank maintenance

• Pipeline and refinery applications

• Any heavy-duty blasting environment requiring consistent control and precision
