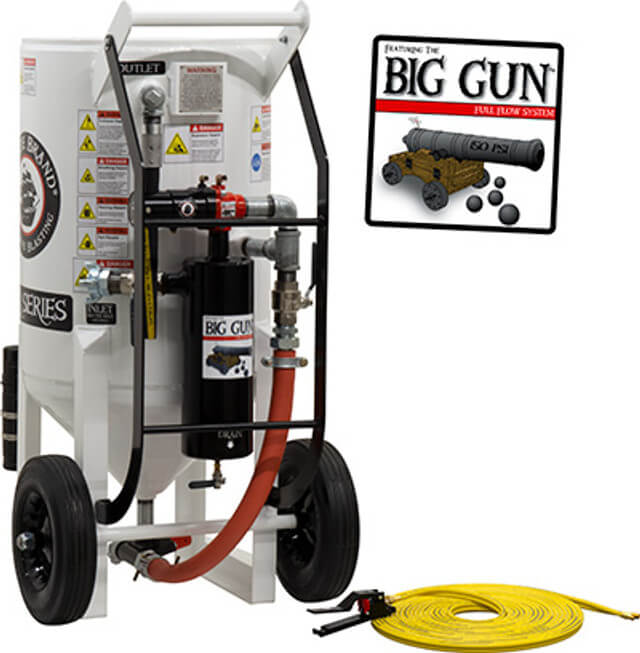

6.5 cu ft Portable Pneumatic Sandblast Pot – Pressure Release System with MPV/Combination Valves, 1-1/2″ Piping & Big Gun Moisture Separator

Part Number: 888-0531-12914PB
Weight: 516.02 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The 6.5 cu ft Portable Pneumatic Sandblast Pot – Big Gun System delivers extreme air and abrasive flow capacity for the most demanding industrial blasting operations.
Equipped with a 1-1/2″ full-flow piping system and Big Gun Moisture Separator, it provides zero-pressure-drop performance that maximizes productivity when using large #7 and #8 blast nozzles.

The Pressure Release System ensures smooth blowdown after each blast cycle, while the MPV/Combination Valve setup guarantees simple control, low maintenance, and reliable field performance.

This model is ideal for shipyards, structural steel, bridge restoration, and large-scale industrial surface preparation.

OEM Compatibility

Key Features & Benefits

A. Pressure Vessel

• 6.5 cu ft (185 L) capacity rated for 150 PSI (10.3 BAR)

• Built to A.S.M.E. Section VIII Division 1 standards

• C.R.N. certified for all provinces

B. Pressure Release System

• Automatically vents pressure when control handle is released

• Simplifies operation and reduces maintenance time

• Easy troubleshooting and reliable field repair design

C. Big Gun Full Flow System

• Zero pressure drop design for maximum air and abrasive velocity

• Improves blasting efficiency — every 1 PSI gained = 1.5% increase in production

• A must-have system for #7 and #8 nozzles

• Full-port couplings eliminate restrictions between vessel and nozzle

D. Heavy-Duty Big Gun Moisture Separator

• Maintains clean, dry air to prevent clogging and moisture buildup

• Designed to handle high-volume air systems for large-scale projects

E. 1-1/2″ Galvanized Piping

• Industrial-grade corrosion-resistant piping ensures long-term durability

F. Full-Port Ball Valves

• Provides unrestricted airflow for optimal blasting efficiency

G. Schedule 80 Heavy-Duty Nipples

• Reinforced design withstands abrasive wear, extending system life

H. Bolt Clamps on Pusher Line

• Enables quick field repairs and easy maintenance

I. MPV/Combination Valve System

• Combination valve serves dual purpose — stops airflow and depressurizes vessel automatically when handle is released

• MPV (Manual Plunger Valve) allows wide-range control over abrasive flow

• Relieving control handle reduces air consumption and shortens stop time

J. Loading Skid / Valve Guard

• Protects valves during operation and transport

• Provides convenient mobility and handling support

Specifications

Applications

• High-volume industrial blasting

• Shipyard and marine maintenance

• Bridge and structural steel restoration

• Heavy equipment refurbishment

• Oilfield and pipeline surface preparation
