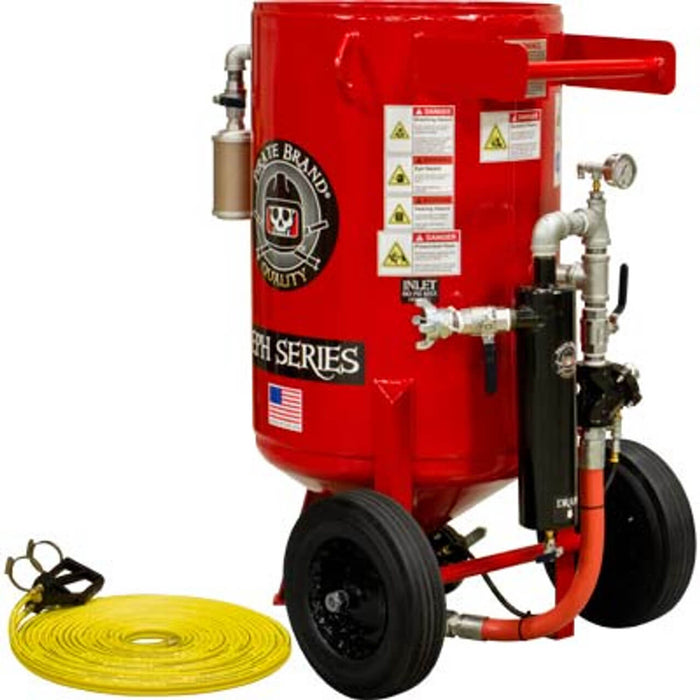

Portable 6.5 cu ft E-Series Pneumatic Blast Pot – Automatic Pinch Valve with X-TREME DUTY™ Metering Tube, 1-1/4" Piping with Moisture Separator & 55' Twin-Line Hose, Pressure Hold System

Part Number: 221-104-A
Compatible With: EMPIRE ABRASIVE EQUIPMENT COMPANY #221104
Weight: 533.93 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The Portable 6.5 cu ft E-Series Pneumatic Blast Pot – Pressure Hold System is a heavy-duty abrasive blasting solution designed for contractors demanding efficiency, control, and reliability.
The Pressure Hold System maintains pressure between blasting cycles, reducing air and abrasive waste while delivering faster restarts and smoother operation.

Equipped with the Automatic Pinch Valve and X-TREME DUTY™ Metering Tube, this model provides superior wear resistance and precise media flow.
The 1-1/4″ galvanized piping and built-in heavy-duty moisture separator ensure corrosion resistance and dry air delivery for consistent blasting performance across industrial environments.

⚙️ Note: Not for use with steel grit (pneumatic control handle can jam). For steel abrasive applications, use an electric control version.

Features & Benefits of 6.5 cu ft EPH Pneumatic System

A. Pressure Vessel

• 6.5 cu ft (185 L) capacity rated for 150 PSI (10.3 BAR)

• Built to A.S.M.E. Section VIII Division 1 standards

• C.R.N. certified for all Canadian provinces

B. Pressure Hold System

• Reduces abrasive consumption

• Minimizes moisture issues within the blast circuit

• Allows smoother starts and stops for precise blasting control

C. Heavy-Duty Moisture Separator

• Delivers clean, dry compressed air to prevent media clumping

D. 1-1/4″ Galvanized Piping

• Maximum corrosion resistance and efficient air transfer

E. Full-Port Ball Valves

• High-flow design for dependable performance under heavy use

F. Schedule 80 Heavy-Duty Nipples

• Extended service life and enhanced resistance to abrasive wear

G. JIC-Fitted Pusher Line

• Eliminates gasket-related leaks and simplifies in-field maintenance

H. Automatic Pinch Valve with X-TREME DUTY™ Pinch Tube

• Constructed from 100% gum rubber with carbon black for static dissipation

• Provides extended life and consistent abrasive metering

I. Anti-Clog / Anti-Freezing Blow Down Muffler

• Reduces noise output and prevents clogging or freezing

J. Bag-Breaker & Screen Assembly

• Keeps debris from entering during abrasive filling

K. 6″ FAST-FILL™ Pop-Up

• Enables faster abrasive refilling and reduced downtime

Specifications

Applications

• Shipyard and marine equipment cleaning

• Refinery and pipeline surface prep

• Concrete restoration and industrial coating removal

• Heavy construction and maintenance operations

• Structural steel and bridge blasting

Compatibility

• OEM Replacement For: EMPIRE ABRASIVE EQUIPMENT COMPANY #221104

• Fully compatible with Empire E-Series Pneumatic Blast Systems and X-TREME DUTY™ valve assemblies
