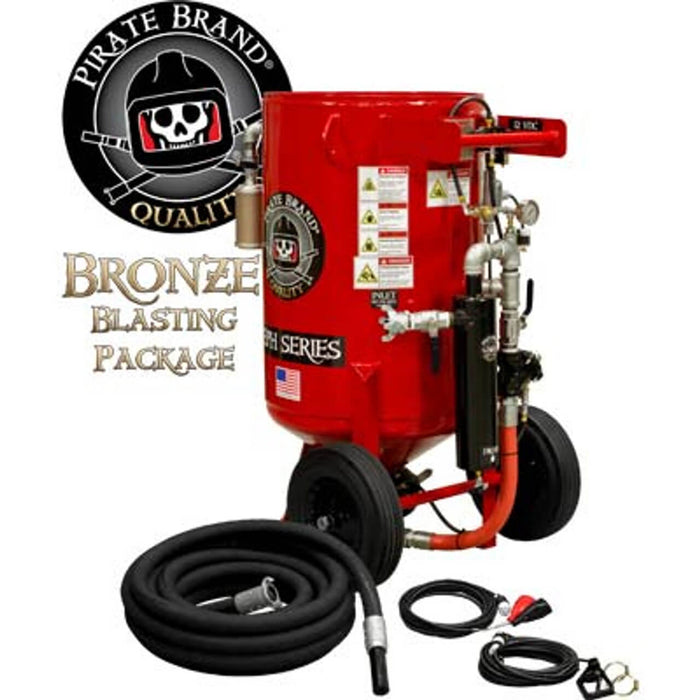

Portable 6.5 cu ft E-Series Electric 12VDC Blast Pot – Automatic Pinch Valve with X-TREME DUTY™ Metering Tube, 1-1/4" Piping with Moisture Separator & 55' Electric D-Handle Control, Bronze Sandblasting Package (Pressure Hold System)

Part Number: 221-104-B-EDC
Compatible With: EMPIRE ABRASIVE EQUIPMENT COMPANY #221104
Weight: 552.98 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The Portable 6.5 cu ft E-Series Electric 12VDC Blast Pot – Bronze Package delivers reliable, efficient, and professional-grade performance for industrial abrasive blasting operations.
This model incorporates a Pressure Hold System, maintaining internal pressure during pauses for smoother restarts, lower abrasive use, and reduced moisture issues.

Built with 1-1/4″ galvanized piping, a Heavy-Duty Moisture Separator, and an Automatic Pinch Valve with X-TREME DUTY™ Metering Tube, this unit ensures exceptional control, long service life, and consistent blasting results under demanding conditions.

Bronze Blasting Package Includes

• (1) 10-114BLK-050-3AL – 1-1/4″ Blast Hose Assembly Kit with Couplings (50′)

• (1) 1348-555 – #5 Tungsten Carbide Poly Jacket Nozzle

The Bronze Package provides a durable and efficient starter setup designed for professional contractors focused on dependable field performance.

Features & Benefits of 6.5 cu ft EPH Electric System

A. Pressure Vessel

• 6.5 cu ft (185 L) capacity rated for 150 PSI (10.3 BAR)

• Built to A.S.M.E. Section VIII Division 1 standards

• C.R.N. Certified for all Canadian provinces

B. Pressure Hold System

• Reduces abrasive consumption

• Prevents moisture issues during extended use

• Provides smoother start and stop cycles

C. Heavy-Duty Moisture Separator

• Ensures a clean, dry air supply for optimal abrasive flow

D. 1-1/4″ Galvanized Piping

• Provides superior corrosion resistance and improved airflow efficiency

E. Full-Port Ball Valves

• Heavy-duty, full-bore design for unrestricted air and abrasive flow

F. Schedule 80 Heavy-Duty Nipples

• Engineered to withstand abrasive wear and extend component lifespan

G. JIC-Fitted Pusher Line

• Eliminates gasket problems and simplifies field maintenance

H. Automatic Pinch Valve with X-TREME DUTY™ Pinch Tube

• 100% gum rubber with carbon black for static dissipation

• Longer wear life and smoother metering performance

I. Anti-Clog / Anti-Freezing Blow Down Muffler

• Reduces noise and prevents freezing in cold or humid conditions

J. Bag-Breaker & Screen Assembly

• Installed over the pop-up to prevent debris entry

K. 6″ FAST-FILL™ Pop-Up

• Allows rapid refilling for maximum uptime

Specifications

Applications

• Heavy equipment maintenance and restoration

• Industrial surface preparation

• Bridge, pipeline, and shipyard blasting

• Concrete and structural steel cleaning

• Industrial coating removal

Compatibility

• OEM Replacement For: EMPIRE ABRASIVE EQUIPMENT COMPANY #221104

• Compatible with E-Series Electric Blast Systems and X-TREME DUTY™ accessories
