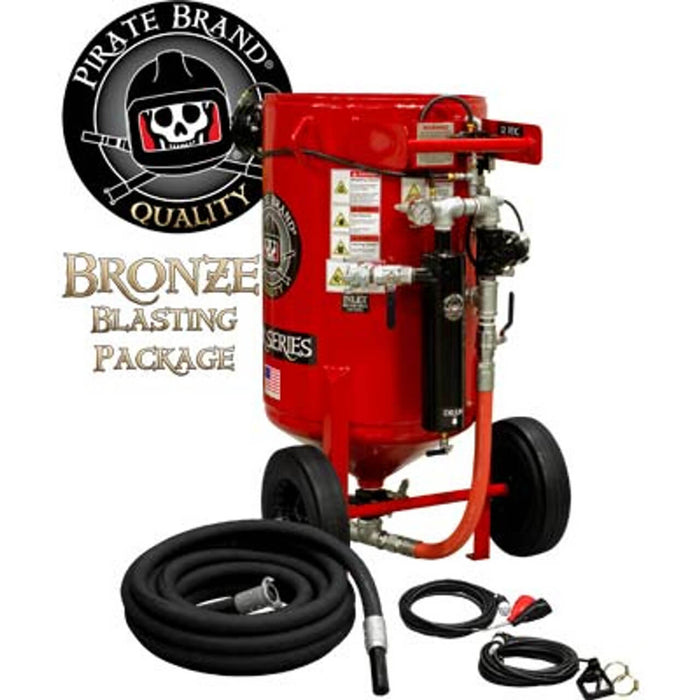

Portable 6.5 cu ft E-Series Electric 12 VDC Blast Pot – Manual Pinch Valve with X-TREME DUTY™ Metering Tube, 1-1/4" Piping with Moisture Separator & 55' Electric D-Handle Control, Bronze Sandblasting Package

Part Number: 221-103-B-EDC
Compatible With: EMPIRE ABRASIVE EQUIPMENT COMPANY #221103
Weight: 547.55 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The 6.5 cu ft E-Series Electric 12 VDC Blast Pot (Bronze Package) is a rugged industrial sandblasting system built for reliable, efficient operation in demanding environments.
Using a Pressure Release System, the vessel automatically depressurizes when blasting stops—reducing wear, simplifying service, and ensuring maximum operator safety.

This model includes a Manual Pinch Valve with X-TREME DUTY™ Metering Tube for smooth abrasive flow control, a 1-1/4″ galvanized piping assembly for corrosion resistance, and an integrated moisture separator to maintain consistent blasting performance.

Bronze Blasting Package Includes

• (1) 10-114BLK-050-3AL – 1-1/4″ Blast Hose Assembly Kit with Couplings (50′)

• (1) 1348-555 – #5 Tungsten Carbide Poly Jacket Nozzle

The Bronze Package provides an entry-level professional setup that delivers reliability and cost-efficiency for contractors seeking consistent results in field blasting operations.

Features & Benefits of 6.5 cu ft EPR Electric System

A. Pressure Vessel

• 6.5 cu ft (185 L) capacity rated for 150 PSI (10.3 BAR)

• Constructed to A.S.M.E. Section VIII Division 1 standards

• C.R.N. Certified for all Canadian provinces

B. Pressure Release System

• Automatically depressurizes when control handle is released

• Reduces downtime and maintenance requirements

• Simplified field troubleshooting

C. Heavy-Duty Moisture Separator

• Removes condensation for cleaner, dryer air supply

D. 1-1/4″ Galvanized Piping

• Corrosion-resistant and optimized for maximum airflow

E. Full-Port Ball Valves

• Heavy-duty design for unrestricted flow and extended service

F. Schedule 80 Heavy-Duty Nipples

• Thick-wall construction resists abrasive wear and fatigue

G. JIC-Fitted Pusher Line

• Eliminates gasket leaks and simplifies maintenance

H. Manual Pinch Valve with X-TREME DUTY™ Pinch Tube

• 100 % gum rubber with carbon black for static dissipation

• Ensures longer wear life and stable abrasive flow

I. #2 Exhaust Valve with X-TREME DUTY™ Ball

• Designed for improved durability and consistent air release

J. Bag-Breaker & Screen Assembly

• Protects pop-up from clogs and foreign debris

K. 6″ FAST-FILL™ Pop-Up

• Speeds up refills for continuous operation

Specifications

Applications

• Pipeline and storage tank maintenance

• Marine and shipyard surface preparation

• Bridge and structural steel blasting

• Equipment refurbishment and coating removal

• General industrial surface cleaning

Compatibility

• OEM Replacement For: EMPIRE ABRASIVE EQUIPMENT COMPANY #221103

• Fully compatible with E-Series Electric Blast Systems and X-TREME DUTY™ components
