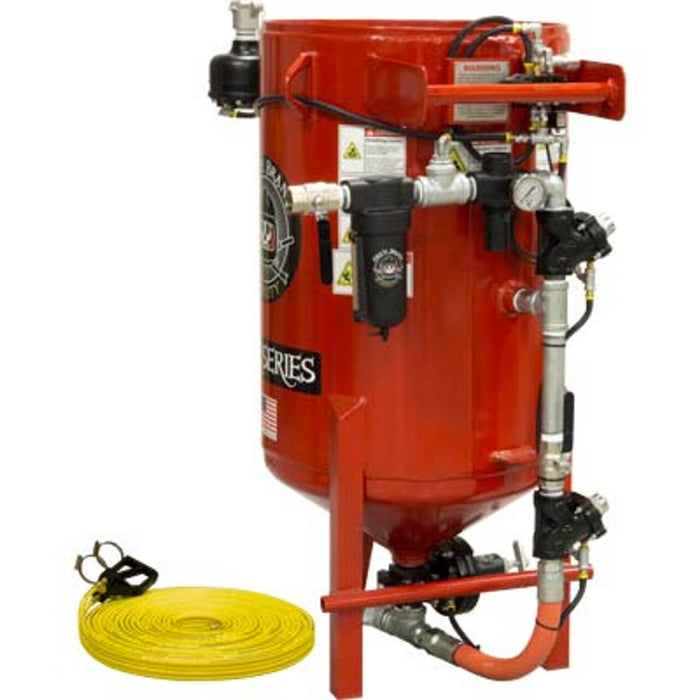

6.5 cu ft E-Series Blast Room Blast Pot – Pneumatic Pressure Release System, 150 PSI, Industrial Sandblasting Machine (6.5 cu ft / 185 L Capacity)

Part Number: 235-651
Compatible With: EMPIRE ABRASIVE EQUIPMENT COMPANY #235651
Weight: 481.40 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The 6.5 cu ft E-Series Blast Room Blast Pot is purpose-built for stationary, high-volume industrial blasting operations such as blast booths, surface-prep facilities, and heavy-equipment refurbishment.
Featuring a Pneumatic Pressure Release System and Automatic Pinch Valve with X-TREME DUTY™ Metering Tube, this model delivers reliable, consistent performance and easy maintenance for continuous production environments.

With integrated 50-micron air filtration, a pressure regulator, and a 120 VAC blast room door interlock, this system ensures safe, efficient operation within enclosed blast rooms or industrial work cells.

Key Features & Benefits

A. Pressure Vessel

• 6.5 cu ft (185 L) capacity rated for 150 PSI (10.3 BAR)

• Constructed to A.S.M.E. Section VIII Division 1 standards

• C.R.N. Certified for all Canadian provinces

B. Pneumatic Pressure Release System

• Automatically blows down the vessel when the control handle is released

• Ensures safe depressurization and simplifies maintenance

C. 50 Micron Air Filter

• Captures fine particulates to prevent valve and nozzle clogging

D. Pressure Regulator

• Provides precise airflow and pressure control for consistent blasting results

E. 1-1/4″ Galvanized Piping

• Corrosion-resistant for extended service life and optimal air delivery

F. Full-Port Ball Valves

• Heavy-duty construction for unrestricted airflow and durability

G. Schedule 80 Heavy-Duty Nipples

• Built to withstand abrasive wear in long-term operation

H. JIC-Fitted Pusher Line

• Eliminates gasket issues and simplifies field repairs

I. Automatic Pinch Valve with X-TREME DUTY™ Pinch Tube

• Constructed from 100% gum rubber with carbon black for static dissipation

• Extended wear life and smoother media control

J. #8 Exhaust Valve with X-TREME DUTY™ Ball & Boron Carbide Restrictor Nozzle

• Provides longer service life and superior resistance to abrasive erosion

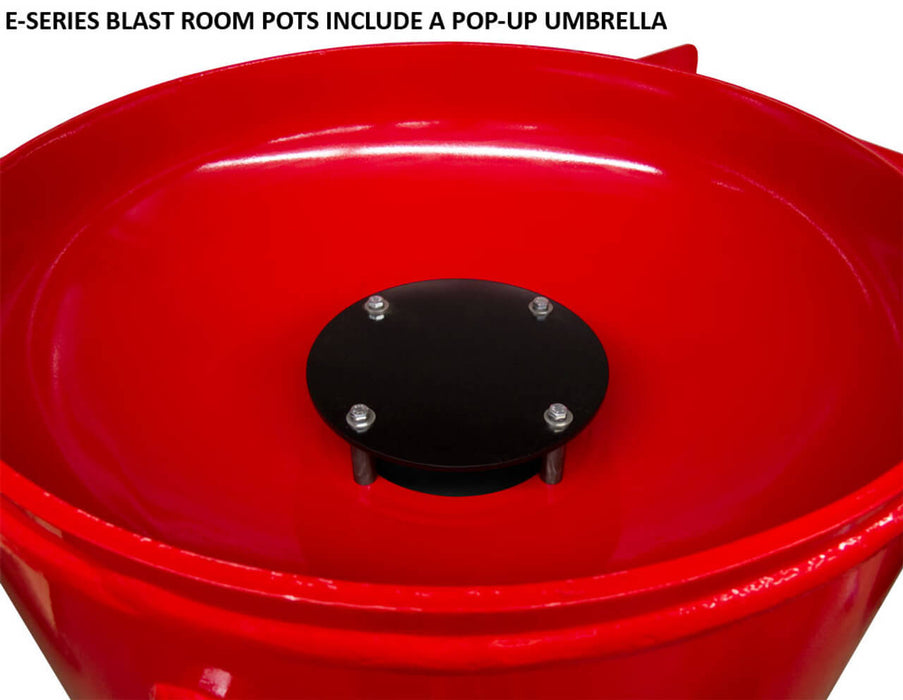

K. Abrasive Umbrella

• Included for stationary blast-room applications to direct media return

L. 6″ FAST-FILL™ Pop-Up

• Enables rapid, clean abrasive refilling for increased uptime

M. 120 VAC Blast Room Door Interlock

• Enhances operator safety by automatically disabling the system when doors are open

Specifications

Applications

• Industrial blast rooms and booth installations

• Surface preparation for steel structures and equipment

• Heavy machinery maintenance and refinishing

• Shipyard and marine applications

• Aerospace and manufacturing blasting environments

Compatibility

• OEM Replacement For: EMPIRE ABRASIVE EQUIPMENT COMPANY #235651

• Compatible with E-Series Pneumatic Blast Systems and X-TREME DUTY™ components
