Portable 3.5 cu ft E-Series Pneumatic Blast Pot – Automatic Pinch Valve with X-TREME DUTY™ Metering Tube, 1" Piping with Moisture Separator, Gold Sandblasting Package

Part Number: 211-104-D
Compatible With: EMPIRE ABRASIVE EQUIPMENT COMPANY #211104
Weight: 476.66 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The Portable 3.5 cu ft (100 L) E-Series Pneumatic Blast Pot – Gold Package is the top-tier configuration in the EPH lineup, combining advanced pneumatic technology with a full professional-grade sandblasting accessory suite.
Featuring an Automatic Pinch Valve with X-TREME DUTY™ Metering Tube, 1" Galvanized Piping, and an integrated Heavy-Duty Moisture Separator, this unit provides industry-leading efficiency, durability, and precision control.

Designed for industrial, marine, and commercial operations, the Gold Package includes a complete set of PPE and hose assemblies for turnkey setup and all-day reliability.

Note: Not for use with steel grit – pneumatic control handles may jam. For metallic abrasives, use the electric-control version.

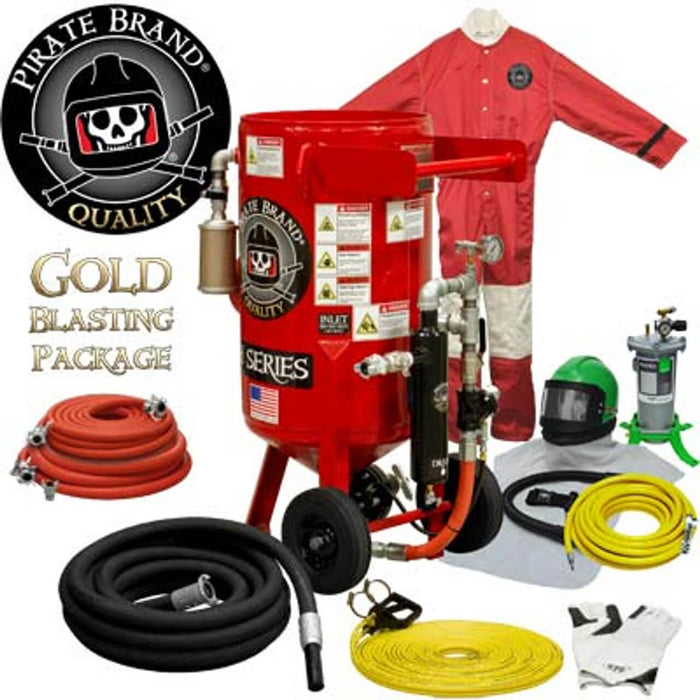

Gold Blasting Package Includes

• (1) 10-100BLK-050-3AL — 1" Blast Hose Assembly Kit with Couplings (50′)

• (1) 1201-1173 — #4 Tungsten Carbide All-Poly Nozzle

• (1) 122-9150 — Lightweight Blast Suit (Large)

• (1) 407701 — Luxury Double-Palmed Gloves (Pair)

• (1) 407000-PFC — NOVA 2000™ Respirator Package

• (1) 10-034RED-050-1 — 3/4" Air Hose Assembly Kit (50′)

• (1) 10-100RED-050-1 — 1" Air Hose Assembly Kit (50′)

• (1) UM-100 — Air Hose Coupling, 2 Lug, 1" Male NPT

• (1) 55′ Twinline Hose Assembly with Pneumatic D-Handle Control

This full package provides operators with everything needed for professional blasting setups—combining superior air delivery, personal safety, and media efficiency.

Features & Benefits of 3.5 cu ft EPH Pneumatic System

A. Pressure Vessel

• 3.5 cu ft (100 L) capacity rated to 150 PSI (10.3 BAR)

• Fabricated to A.S.M.E. Section VIII Division 1 standards

• C.R.N. certified for all Canadian provinces

B. Pressure Hold System

• Reduces abrasive waste and moisture buildup

• Delivers smoother operation and consistent flow

• Enhances start/stop response times for higher efficiency

C. Heavy-Duty Moisture Separator

• Provides clean, dry air to prevent clogging and improve finish quality

D. 1" Galvanized Piping

• Corrosion-resistant for extended service life

E. Full-Port Ball Valves

• Heavy-duty construction supports unrestricted air passage

F. Schedule 80 Heavy-Duty Nipples

• Engineered for abrasion resistance and durability

G. Pusher Line with JIC Fittings

• Eliminates gasket failures and simplifies maintenance

H. Automatic Pinch Valve with X-TREME DUTY™ Pinch Tube

• Constructed from 100% gum rubber with carbon black for static dissipation

• Provides smooth, consistent metering and long wear life

I. Anti-Clog / Anti-Freezing Blow-Down Muffler

• Reduces operational noise and prevents freezing under continuous use

J. Bag-Breaker and Screen Assembly

• Standard above pop-up for contaminant-free media loading

K. 6" FAST-FILL™ Pop-Up

• Speeds up abrasive refilling to maximize uptime

Specifications

Applications

• Industrial and commercial abrasive blasting

• Marine and shipyard surface preparation

• Oil, gas, and pipeline maintenance

• Steel structure and heavy equipment cleaning

• Concrete and coating removal

Compatibility

• OEM Replacement For: EMPIRE ABRASIVE EQUIPMENT COMPANY #211104

• Fully compatible with Empire E-Series pneumatic blast systems and accessory kits
