3.5 cu ft Portable Pneumatic Sandblast Pot – Gold Sandblasting Package, Pressure Release System with MPV/Combination Valve & 1″ Piping with Moisture Separator
Part Number: 888-0331-12611PB-D
Weight: 473.42 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty
Overview
The 3.5 cu ft Portable Pneumatic Sandblast Pot – Gold Sandblasting Package is a high-performance abrasive blasting unit designed for professional contractors and surface preparation experts.
Featuring a Pneumatic Pressure Release System and MPV/Combination Valve, this model ensures smooth start/stop control, long-term reliability, and minimal maintenance.
The Gold Sandblasting Package includes a complete set of premium accessories and safety equipment for maximum efficiency and operator comfort in demanding industrial environments.

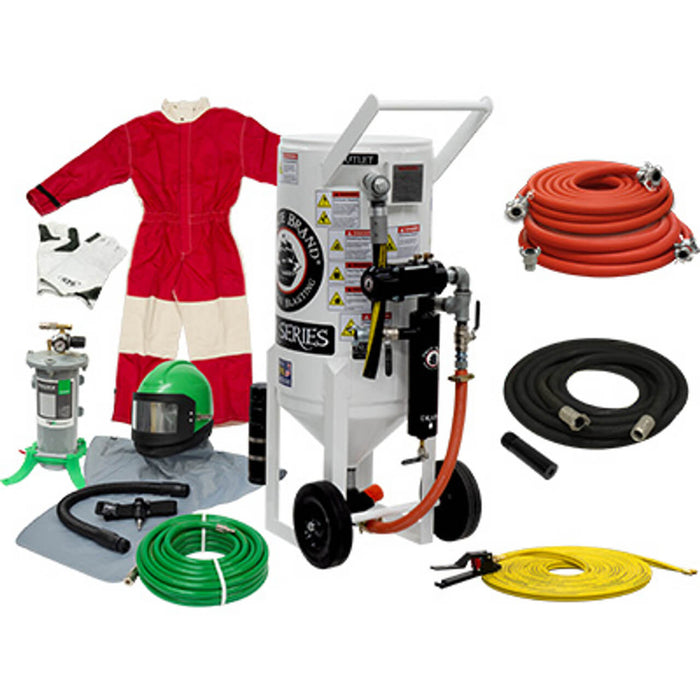

Included Gold Sandblasting Package
| Component | Description |
|---|---|
| (1) 10-100BLK-050-3AL | 1″ Blast Hose Assembly Kit with Couplings (50′) |
| (1) 1201-1173 | #4 Tungsten Carbide, All-Poly Nozzle |
| (1) 122-9150 | Lightweight Blast Suit – Large |
| (1) 407701 | Luxury Double-Palmed Gloves (Pair) |
| (1) 407000-PFC | NOVA 2000® Respirator Package |
| (1) 10-034RED-050-1 | ¾″ Air Hose Assembly Kit (50′) |
| (1) 10-100RED-050-1 | 1″ Air Hose Assembly Kit (50′) |
| (1) UM-100 | Air Hose Coupling, 2 Lug, 1″ Male NPT |
Key Features & Benefits
A. Pressure Vessel
-
3.5 cu ft (100 L) capacity rated at 150 PSI (10.3 BAR)
-
Built to A.S.M.E. Section VIII Division 1 standards
-
C.R.N. Certified for all provinces
B. Pressure Release System
-
Automatically depressurizes vessel upon control handle release
-
Simplified, low-maintenance system ideal for field applications
-
Easy to troubleshoot and repair in industrial settings
C. Heavy-Duty Moisture Separator
-
Removes moisture and contaminants from the air supply
-
Reduces clogging and ensures consistent abrasive flow
D. 1″ Galvanized Piping
-
Corrosion-resistant, long-lasting under heavy-duty use
E. Full-Port Ball Valves
-
Provides unrestricted airflow for peak blasting performance
F. Schedule 80 Heavy-Duty Nipples
-
Built for durability, withstands abrasive wear and high pressure
G. Bolt Clamps on Pusher Line
-
Allows easy field maintenance and fast hose replacement
H. MPV/Combination Valve System
-
Combination Valve: Dual-action design stops air flow and relieves vessel pressure simultaneously
-
MPV (Manual Plunger Valve): Allows precise abrasive metering for full control of media flow
-
Relieving Control Handle: Minimizes air consumption and shortens stopping time
Specifications
| Specification | Detail |
|---|---|
| Model | 888-0331-12611PB-D |
| Vessel Capacity | 3.5 cu ft (100 L) |
| Working Pressure | 150 PSI (10.3 BAR) |
| System Type | Pneumatic Pressure Release |
| Valve Type | MPV / Combination Valve |
| Piping Size | 1″ Galvanized |
| Moisture Separator | Included |
| Control Handle | Pneumatic Control Handle #2 (55′ Twin-Line Hose Assembly) |
| Certifications | A.S.M.E. Section VIII / C.R.N. (All Provinces) |
| Weight | 473.42 lbs |
| Warranty | 5-Year Limited / 10-Year Vessel Warranty |
Applications
-
Industrial and marine sandblasting
-
Surface coating and rust removal
-
Pipeline and shipyard maintenance
-
Equipment restoration and metal surface prep
Compatibility
-
OEM Replacement For: SCHMIDT MANUFACTURING / U.S. FILTER / AXXIOM MANUFACTURING
