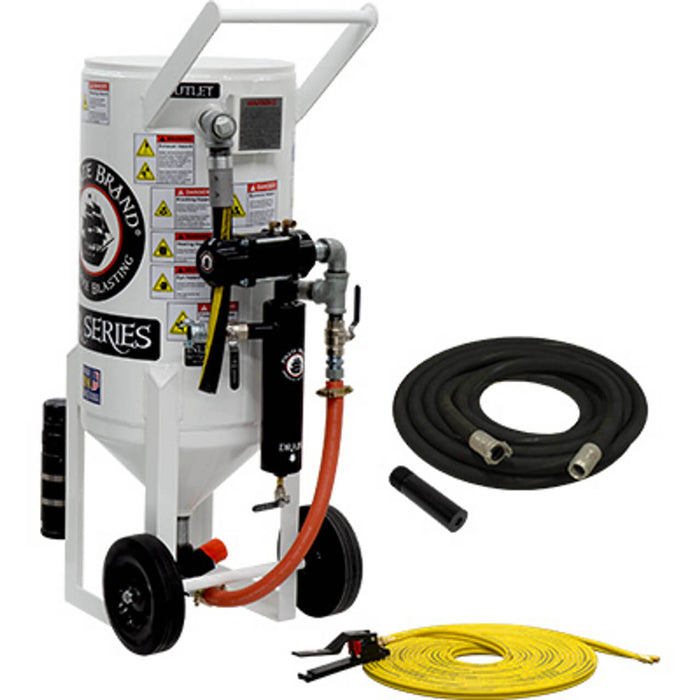

3.5 cu ft Portable Pneumatic Sandblast Pot – Bronze Sandblasting Package, Pressure Release System with MPV/Combination Valve & 1″ Piping with Moisture Separator
Part Number: 888-0331-12611PB-B
Compatible With: SCHMIDT / U.S. FILTER / AXXIOM #6001-032-01
Weight: 386.23 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty
Overview
The 3.5 cu ft Portable Pneumatic Sandblast Pot – Bronze Sandblasting Package offers reliable performance and ease of maintenance for contractors and surface preparation professionals.
Equipped with a Pressure Release System, MPV/Combination Valve, and Heavy-Duty Moisture Separator, this unit delivers consistent blasting performance and easy control in field conditions.
The included Bronze Sandblasting Package provides the essential components to get you blasting immediately — ideal for professional shops, shipyards, and industrial cleaning operations.
Included Bronze Sandblasting Package
| Component | Description |
|---|---|
| (1) 10-100BLK-050-3AL | 1″ Blast Hose Assembly Kit with Couplings (50′) |
| (1) 1201-1173 | #4 Tungsten Carbide, All-Poly Nozzle |
Key Features & Benefits
A. Pressure Vessel
-
3.5 cu ft (100 L) capacity rated for 150 PSI (10.3 BAR)
-
Built to A.S.M.E. Section VIII Division 1 standards
-
C.R.N. Certified for all provinces
B. Pressure Release System
-
Automatically depressurizes vessel when control handle is released
-
Simple, low-maintenance design ideal for long-term use
-
Easy in-field troubleshooting and service
C. Heavy-Duty Moisture Separator
-
Removes condensation and contaminants for clean, dry airflow
-
Improves blasting consistency and prevents media clogging
D. 1″ Galvanized Piping
-
Corrosion-resistant design ensures long-term reliability
E. Full-Port Ball Valves
-
Maintains optimal airflow for maximum blasting power
F. Schedule 80 Heavy-Duty Nipples
-
Extra-thick walls resist abrasive wear and extend equipment life
G. Bolt Clamps on Pusher Line
-
Allows for quick repairs and easy maintenance in the field
H. MPV/Combination Valve System
-
Combination Valve: Dual-function design that stops blasting and releases vessel pressure simultaneously
-
MPV (Manual Plunger Valve): Simple, reliable abrasive metering control with wide adjustment range
-
Relieving Control Handle: Reduces air consumption and minimizes stopping delay for efficient operation
Specifications
| Specification | Detail |
|---|---|
| Model | 888-0331-12611PB-B |
| Vessel Capacity | 3.5 cu ft (100 L) |
| Working Pressure | 150 PSI (10.3 BAR) |
| System Type | Pneumatic Pressure Release |
| Valve Type | MPV / Combination Valve |
| Piping Size | 1″ Galvanized |
| Moisture Separator | Included |
| Control Handle | Pneumatic Control Handle #2 (55′ Twin-Line Hose Assembly) |
| Certifications | A.S.M.E. Section VIII / C.R.N. (All Provinces) |
| Weight | 386.23 lbs |
| Warranty | 5-Year Limited / 10-Year Vessel Warranty |
Applications
-
On-site sandblasting and surface prep
-
Shipyard, pipeline, and industrial facility maintenance
-
Heavy equipment paint and coating removal
-
Construction and metal fabrication cleanup
Compatibility
-
OEM Replacement For: SCHMIDT MANUFACTURING / U.S. FILTER / AXXIOM #6001-032-01
