Portable 3.5 cu ft E-Series 12 VDC Electric Blast Pot – Manual Pinch Valve with X-TREME DUTY™ Metering Tube, 1" Piping with Moisture Separator, Silver Sandblasting Package

Part Number: 211-103-C-EDC
Compatible With: EMPIRE ABRASIVE EQUIPMENT COMPANY #211103
Weight: 424.91 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The Portable 3.5 cu ft (100 L) E-Series 12 VDC Electric Blast Pot – Silver Package provides industrial-grade performance with the dependability of electric controls for precise operation and improved safety when working with metallic abrasives.
Equipped with a Manual Pinch Valve and X-TREME DUTY™ Metering Tube, this model features a 1″ galvanized piping system, integrated moisture separator, and a 55′ electric D-handle control cord for efficient and ergonomic blasting in any environment.

Designed for contractors, shipyards, and fabrication facilities, the Silver Package includes essential operator protection and tool accessories for a complete, ready-to-use setup.

⚙️ Note: When using steel abrasives, sealed connector(s) (PB-31131) are required.

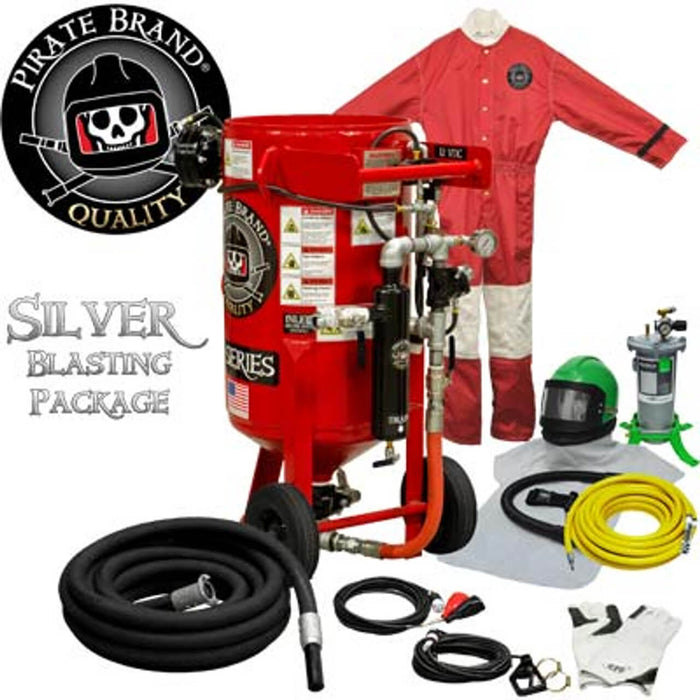

Silver Blasting Package Includes

• (1) 10-100BLK-050-3AL — 1″ Blast Hose Assembly Kit with Couplings (50′)

• (1) 1201-1173 — #4 Tungsten Carbide All-Poly Nozzle

• (1) 122-9150 — Lightweight Blast Suit (Large)

• (1) 407701 — Luxury Double-Palmed Gloves (Pair)

• (1) 407000-PFC — RPB® NOVA 2000™ Respirator Package

• (1) 55′ Control Cord with Electric D-Handle Control

The Silver Package offers professional-grade PPE and blasting equipment that enhances comfort, safety, and long-term durability on job sites.

Features & Benefits of 3.5 cu ft EPR Electric System

A. Pressure Vessel

• 3.5 cu ft (100 L) capacity rated to 150 PSI (10.3 BAR)

• Built to A.S.M.E. Section VIII Division 1 standards

• C.R.N. certified for all Canadian provinces

B. Pressure Release System

• Automatically vents the vessel when the control handle is released

• Low-maintenance design for extended service life

C. Heavy-Duty Moisture Separator

• Keeps air dry to prevent clogs and ensure consistent media flow

D. 1″ Galvanized Piping

• Provides corrosion resistance for longevity and low maintenance

E. Full-Port Ball Valves

• Heavy-duty construction for maximum airflow and efficiency

F. Schedule 80 Heavy-Duty Nipples

• Built for abrasion resistance and extended operational life

G. Pusher Line with JIC Fittings

• Eliminates gasket leaks and simplifies maintenance tasks

H. Manual Pinch Valve with X-TREME DUTY™ Pinch Tube

• 100 % gum rubber tube with carbon black for static dissipation

• Ensures smooth metering and long wear life

I. #2 Exhaust Valve with X-TREME DUTY™ Ball

• Provides long-term service and low maintenance

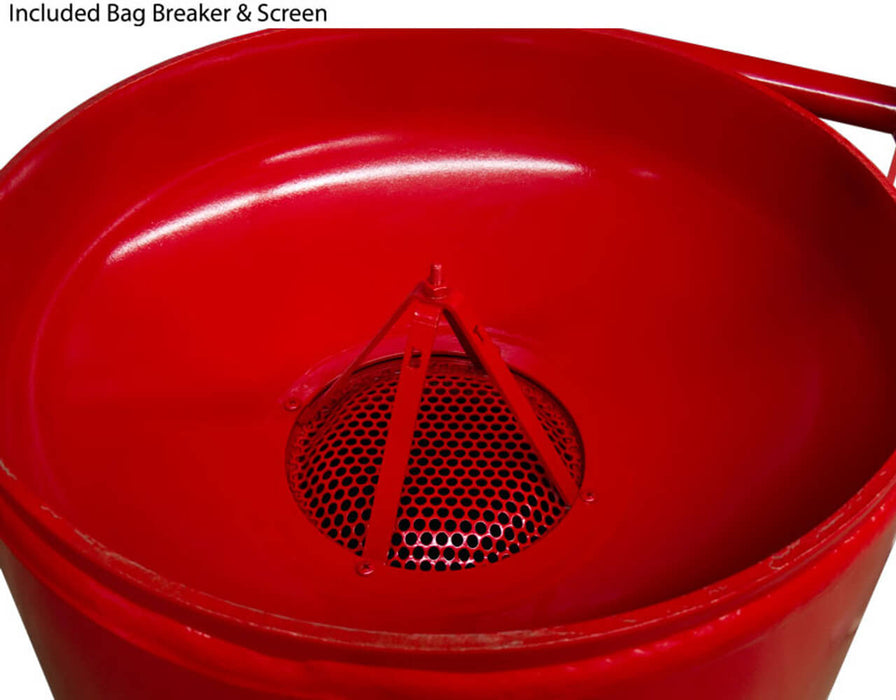

J. Bag-Breaker and Screen

• Prevents debris entry and improves media loading efficiency

K. 6″ FAST-FILL™ Pop-Up

• Enables rapid refilling to maximize uptime

Specifications

Applications

• Shipyard and marine surface preparation

• Industrial maintenance and refinery projects

• Steel fabrication and heavy-equipment cleaning

• Coating and rust removal on structural steel

• Concrete surface prep and paint removal

Compatibility

• OEM Replacement For: EMPIRE ABRASIVE EQUIPMENT COMPANY #211103

• Fully compatible with Empire E-Series 12 VDC Electric Blast Systems and X-TREME DUTY™ accessories
