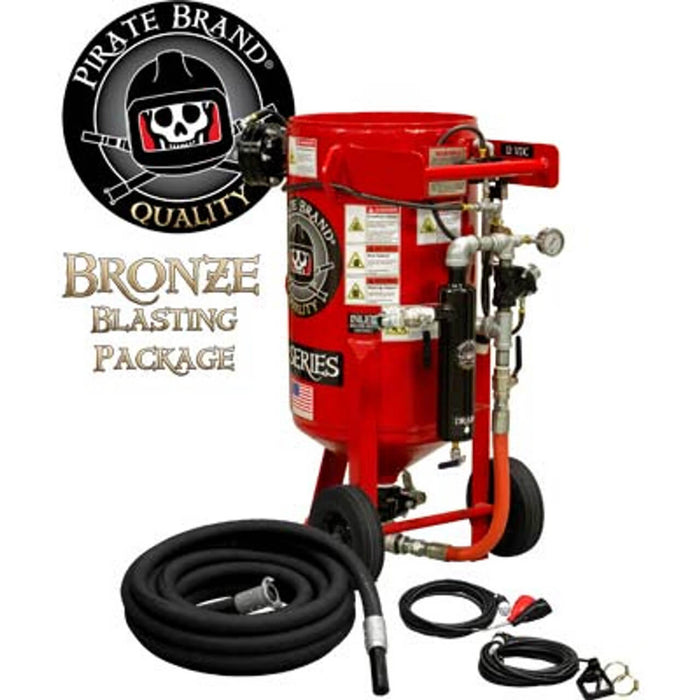

Portable 3.5 cu ft E-Series 12 VDC Electric Blast Pot – Manual Pinch Valve with X-TREME DUTY™ Metering Tube, 1" Piping with Moisture Separator, Bronze Sandblasting Package

Part Number: 211-103-B-EDC
Compatible With: EMPIRE ABRASIVE EQUIPMENT COMPANY #211103
Weight: 397.11 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The Portable 3.5 cu ft (100 L) E-Series 12 VDC Electric Blast Pot – Bronze Package offers the perfect balance of electric control precision and heavy-duty pneumatic performance.
Equipped with a Manual Pinch Valve featuring X-TREME DUTY™ Metering Tube, corrosion-resistant 1″ Galvanized Piping, and a built-in Moisture Separator, this system ensures smooth abrasive flow, reduced wear, and minimal downtime.

Designed for contractors, fabrication shops, and field operators, this package includes essential hoses and nozzles for efficient daily blasting.

⚙️ Note: When using steel abrasives, sealed connector(s) (PB-31131) are required.

Bronze Blasting Package Includes

• (1) 10-100BLK-050-3AL — 1″ Blast Hose Assembly Kit with Couplings (50′)

• (1) 1201-1173 — #4 Tungsten Carbide All-Poly Nozzle

• (1) 55′ Control Cord with Electric D-Handle Control

This entry-level package provides a rugged foundation for professional blasting, ensuring consistent flow control and long component life under daily use.

Features & Benefits of 3.5 cu ft EPR Electric System

A. Pressure Vessel

• 3.5 cu ft (100 L) capacity rated to 150 PSI (10.3 BAR)

• Built to A.S.M.E. Section VIII Division 1 standards

• C.R.N. certified for all Canadian provinces

B. Pressure Release System

• Automatically vents the vessel when the control handle is released

• Low-maintenance design with easy field troubleshooting

C. Heavy-Duty Moisture Separator

• Provides clean, dry air to prevent clogging and inconsistent flow

D. 1″ Galvanized Piping

• Corrosion-resistant construction for longevity

E. Heavy-Duty Full-Port Ball Valves

• Maintains high airflow for smooth blasting operation

F. Schedule 80 Heavy-Duty Nipples

• Extra-thick walls to withstand abrasive wear

G. Pusher Line with JIC Fittings

• Eliminates gasket issues and simplifies maintenance

H. Manual Pinch Valve with X-TREME DUTY™ Pinch Tube

• Made from 100 % gum rubber with carbon black for static dissipation

• Offers long service life and precise media metering

I. #2 Exhaust Valve with X-TREME DUTY™ Ball

• Ensures reliable operation and low maintenance

J. Bag-Breaker and Screen Assembly

• Prevents contaminants and blockages during abrasive loading

K. 6″ FAST-FILL™ Pop-Up

• Speeds up refilling and reduces downtime

Specifications

Applications

• General industrial and fabrication blasting

• Pipeline and refinery maintenance

• Shipyard and marine surface preparation

• Structural steel cleaning and paint removal

• Concrete restoration and coating removal

Compatibility

• OEM Replacement For: EMPIRE ABRASIVE EQUIPMENT COMPANY #211103

• Fully compatible with Empire E-Series 12 VDC Electric Blast Systems and accessories
