Portable 3.5 cu ft E-Series 12 VDC Electric Blast Pot – Automatic Pinch Valve with X-TREME DUTY™ Metering Tube, 1" Piping with Moisture Separator, Gold Sandblasting Package

Part Number: 211-104-D-EDC
Compatible With: EMPIRE ABRASIVE EQUIPMENT COMPANY #211104
Weight: 483.32 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The Portable 3.5 cu ft E-Series 12 VDC Electric Blast Pot – Gold Package represents the most complete professional sandblasting system in the E-Series Electric lineup.
Built for high-demand industrial environments, it integrates a Pressure Hold System with an Automatic Pinch Valve and X-TREME DUTY™ Metering Tube, providing unmatched precision, efficiency, and durability.

This configuration delivers smoother starts, reduced media usage, and reliable performance even during long blasting cycles.
The 12 VDC electric control system with a 55′ electric D-Handle control cord ensures consistent activation, while the 1″ galvanized piping and heavy-duty moisture separator provide lasting corrosion resistance and clean, dry operation.

⚙️ Note: When using steel abrasives, sealed connector(s) (PB-31131) are required.

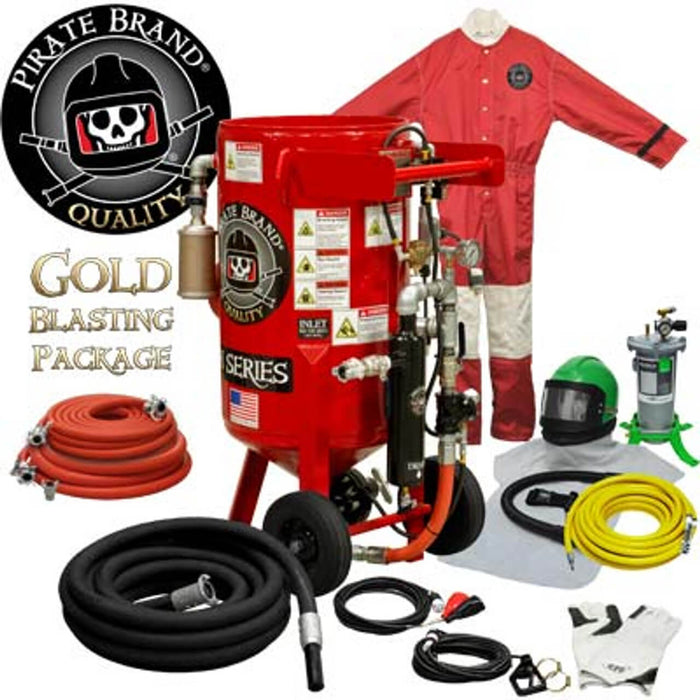

Gold Blasting Package Includes

• (1) 10-100BLK-050-3AL — 1″ Blast Hose Assembly Kit with Couplings (50′)

• (1) 1201-1173 — #4 Tungsten Carbide All-Poly Nozzle

• (1) 122-9150 — Lightweight Blast Suit (Large)

• (1) 407701 — Luxury Double-Palmed Gloves (Pair)

• (1) 407000-PFC — NOVA 2000™ Respirator Package

• (1) 10-034RED-050-1 — ¾″ Air Hose Assembly Kit (50′)

• (1) 10-100RED-050-1 — 1″ Air Hose Assembly Kit (50′)

• (1) UM-100 — Air Hose Coupling, 2 Lug, 1″ Male NPT

The Gold Package is the premium setup, combining performance, comfort, and safety for industrial contractors who demand a complete turn-key sandblasting solution.

Features & Benefits of 3.5 cu ft EPH Electric System

A. Pressure Vessel

• 3.5 cu ft (100 L) capacity rated to 150 PSI (10.3 BAR)

• Built to A.S.M.E. Section VIII Division 1 standards

• C.R.N. certified for all Canadian provinces

B. Pressure Hold System

• Reduces abrasive consumption and moisture issues

• Provides smoother starts and stops

• Maintains vessel pressure for greater efficiency

C. Heavy-Duty Moisture Separator

• Filters moisture to prevent clogs and enhance air quality

D. 1″ Galvanized Piping

• Corrosion-resistant design for long service life

E. Heavy-Duty Full-Port Ball Valves

• Maximizes air flow and system efficiency

F. Schedule 80 Heavy-Duty Nipples

• Engineered to withstand abrasive wear and pressure

G. Pusher Line with JIC Fittings

• Eliminates gasket failures and simplifies maintenance

H. Automatic Pinch Valve with X-TREME DUTY™ Pinch Tube

• 100 % gum rubber with carbon black for static dissipation

• Longer wear life and consistent abrasive flow

I. Anti-Clog / Anti-Freezing Blow-Down Muffler

• Reduces noise and prevents freezing in cold environments

J. Bag-Breaker and Screen

• Protects the pot from foreign debris during loading

K. 6″ FAST-FILL™ Pop-Up

• Allows faster abrasive refilling and minimized downtime

Specifications

Applications

• Industrial and marine surface preparation

• Pipeline and refinery maintenance

• Structural steel restoration

• Concrete cleaning and coating removal

• Heavy equipment refurbishment

Compatibility

• OEM Replacement For: EMPIRE ABRASIVE EQUIPMENT COMPANY #211104

• Fully compatible with Empire E-Series 12 VDC Electric Blast Systems and X-TREME DUTY™ components
