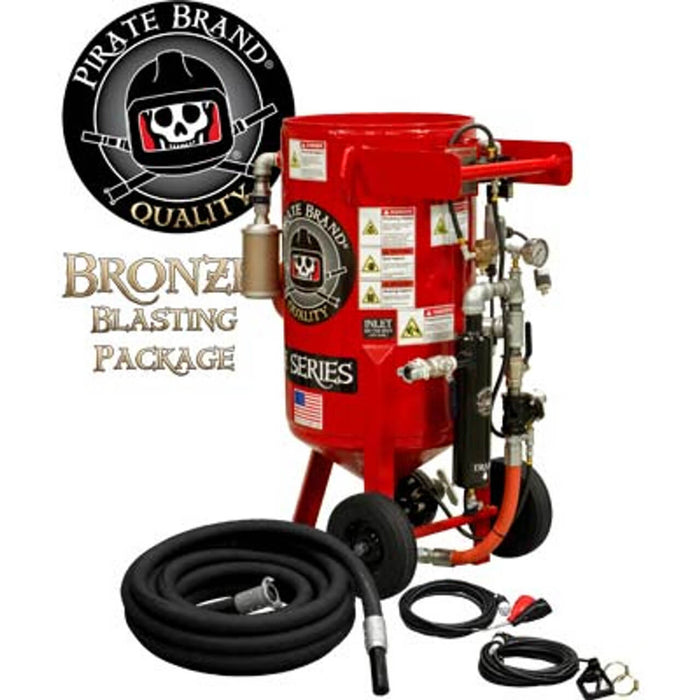

Portable 3.5 cu ft E-Series 12 VDC Electric Blast Pot – Automatic Pinch Valve with X-TREME DUTY™ Metering Tube, 1" Piping with Moisture Separator, Bronze Blasting Package (Part # 211-104-B-EDC)

Part Number: 211-104-B-EDC
Compatible With: EMPIRE ABRASIVE EQUIPMENT COMPANY #211104
Weight: 402.22 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The Portable 3.5 cu ft (100 L) E-Series 12 VDC Electric Blast Pot – Bronze Package delivers professional-grade performance for contractors, fabrication shops, and maintenance crews who need efficient, low-maintenance blasting power.
This model integrates an Automatic Pinch Valve with X-TREME DUTY™ Metering Tube, providing consistent abrasive flow and smooth pressure control under heavy-duty use. The Pressure Hold System minimizes downtime, conserves media, and reduces moisture buildup for reliable day-long operation.

Powered by a 12-volt electric control system, the unit includes a 55′ electric D-Handle control cord and rugged 1″ galvanized piping with built-in moisture separator, ensuring precise metering and durability even in harsh environments.

⚙️ Note: When using steel abrasives, sealed connector(s) (PB-31131) are required.

Bronze Blasting Package Includes

• (1) 10-100BLK-050-3AL — 1″ Blast Hose Assembly Kit with Couplings (50′)

• (1) 1201-1173 — #4 Tungsten Carbide All-Poly Nozzle

The Bronze Package is designed for entry-level professional use, supplying essential hose and nozzle components for standard abrasive blasting jobs.

Features & Benefits of 3.5 cu ft EPH Electric System

A. Pressure Vessel

• 3.5 cu ft (100 L) capacity rated to 150 PSI (10.3 BAR)

• Built to A.S.M.E. Section VIII Division 1 standards

• C.R.N. certified for all Canadian provinces

B. Pressure Hold System

• Reduces abrasive consumption and moisture issues

• Provides smoother starts and stops

• Maintains pressure between cycles for efficient blasting

C. Heavy-Duty Moisture Separator

• Keeps air dry to ensure consistent media flow and performance

D. 1″ Galvanized Piping

• Corrosion-resistant construction for extended longevity

E. Full-Port Ball Valves

• High-flow design minimizes air restriction and boosts efficiency

F. Schedule 80 Heavy-Duty Nipples

• Reinforced for abrasion resistance and long-term use

G. Pusher Line with JIC Fittings

• Eliminates gasket leaks and simplifies maintenance

H. Automatic Pinch Valve with X-TREME DUTY™ Pinch Tube

• 100 % gum rubber with carbon black for static dissipation

• Provides precise abrasive control and extended service life

I. Anti-Clog / Anti-Freezing Blow-Down Muffler

• Reduces noise and prevents freezing during continuous use

J. Bag-Breaker and Screen

• Prevents foreign material from entering the vessel

K. 6″ FAST-FILL™ Pop-Up

• Enables quick abrasive loading for maximized uptime

Specifications

Applications

• Industrial maintenance and refinery operations

• Shipyard and marine surface preparation

• Pipeline and structural steel cleaning

• Concrete restoration and coating removal

Compatibility

• OEM Replacement For: EMPIRE ABRASIVE EQUIPMENT COMPANY #211104

• Fully compatible with Empire E-Series 12 VDC Electric Blast Systems and X-TREME DUTY™ components
