6.5 cu ft K-Series Portable Gold Package Sandblast Pot – Electric 12 VDC Pressure Hold System with #100 Metering Valve & #400 Pinch Valve, 1-1/4″ Piping & Moisture Separator

Part Number: 40-301-D
Compatible With: KEY HOUSTON #40301
Weight: 788.28 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The 6.5 cu ft K-Series Electric Gold Package is the ultimate heavy-duty sandblasting system for industrial contractors requiring full equipment integration and reliability.
Designed with a 12 VDC Pressure Hold System, it delivers smooth operation, reduced air loss, and consistent blasting pressure for optimal abrasive flow control.
Equipped with a #100 Metering Valve and #400 Pinch Valve, this unit provides superior precision in abrasive metering and airflow regulation.
The Gold Package includes a complete operator safety and air hose accessory kit, offering a full turnkey solution for professional blasting applications.

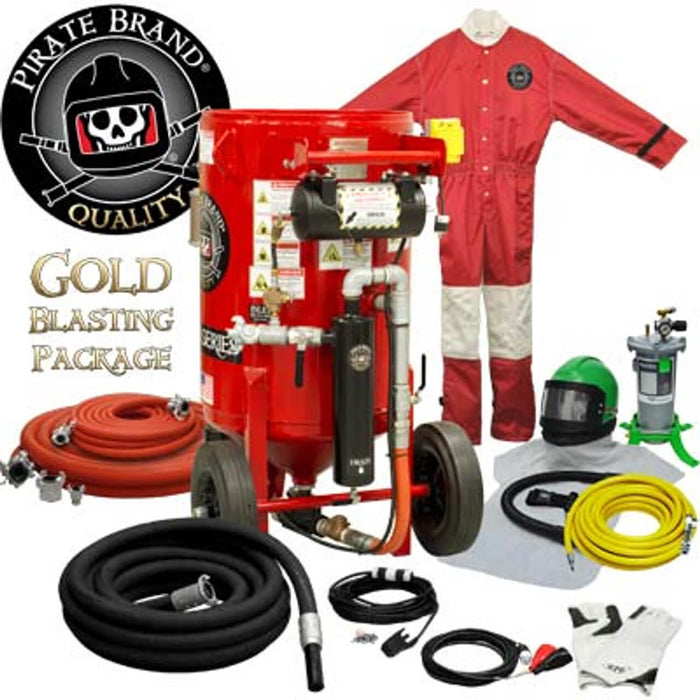

Gold Blasting Package Includes

• (1) 10-114BLK-050-3AL – 1-1/4″ Blast Hose Assembly Kit with Couplings (50′)

• (1) 1348-555 – #5 Tungsten Carbide Poly Jacket Nozzle

• (1) 122-9150 – Blast Suit, Lightweight, Large

• (1) 407701 – Luxury Double-Palmed Gloves (Pair)

• (1) 407000-PFC – RPB® NOVA 2000™ Respirator Package

• (1) 10-034RED-050-1 – 3/4″ Air Hose Assembly Kit with Couplings (50′)

• (1) 10-112RED-050-1 – 1-1/2″ Air Hose Assembly Kit with Couplings (50′)

• (1) UM-100 – Air Hose Coupling, 2 Lug, 1″ Male NPT

• (1) UF-150 – Air Hose Coupling, 4 Lug, 1-1/2″ Female

Key Features & Benefits

A. Pressure Vessel

• 6.5 cu ft (185 L) capacity, rated at 150 PSI (10.3 BAR)

• Constructed to A.S.M.E. Section VIII Division 1 standards

• C.R.N. Certified for all provinces

B. Pressure Hold System

• Maintains pressure when the control handle is released

• Reduces air consumption and improves overall blasting efficiency

C. Emergency Air Tank

• Ensures pinch valve remains closed in the event of compressor failure

• Adds an additional safety reserve for consistent operation

D. Heavy-Duty Moisture Separator

• Prevents water contamination and abrasive clumping

E. 1-1/4″ Galvanized Piping

• Corrosion-resistant and optimized for high-flow performance

F. Heavy-Duty Full-Port Ball Valves

• Designed for maximum airflow and reliability

G. Schedule 80 Heavy-Duty Nipples

• Engineered to resist abrasion and wear for longer life

H. JIC-Fitted Pusher Line

• Eliminates gasket-related leaks for lower maintenance needs

I. #100 Metering Valve / #400 Pinch Valve

• #100 Metering Valve: Provides precise, reliable control of abrasive feed

• #400 Pinch Valve: Smoothly controls the flow of air and abrasive mix

J. Bag-Breaker & Screen

• Prevents debris entry and improves abrasive loading efficiency

K. Blow-Down Muffler

• Reduces noise levels during depressurization

L. Improved Electric Connection

• Weather-proof lock-out/tag-out box

• Rubber-sealed plug boot prevents dust and insect intrusion

• Provides improved connection integrity over legacy models

M. 6″ FAST-FILL™ Pop-Up

• Enables quick abrasive refilling for maximum uptime

Specifications

Applications

• Shipbuilding, industrial coating, and rust removal

• Bridge, pipeline, and tank surface preparation

• Heavy equipment restoration and fabrication cleaning

• Construction, offshore, and manufacturing environments

Compatibility

• OEM Replacement For: KEY HOUSTON #40301

• Fully compatible with K-Series Electric #100 / #400 Pressure Hold system components
