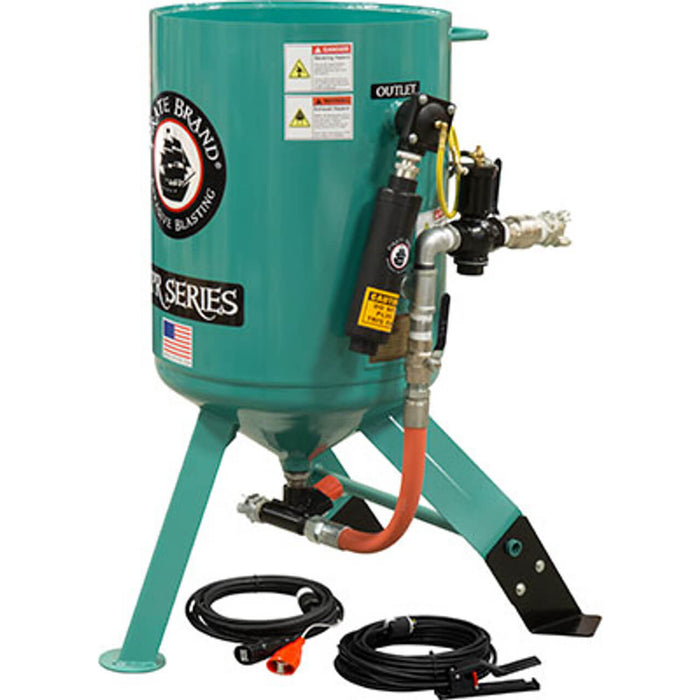

Stationary 6.0 cu ft Electric Sandblast Pot w/ 4″ Umbrella – Pressure Release System, 12VDC Controls, MPV, 1-1/2″ Inlet & 1″ Outlet, 1-1/4″ Piping
Part Number: 221-0730-MPV-EDC
Heavy-duty 6.0 cu ft (170 liter) stationary abrasive blasting pressure vessel designed for shop and blast room environments, equipped with 12VDC electric remote controls for faster system response, reliable operation in colder climates, and reduced icing in control circuits. The integrated 4″ umbrella feed system prevents excess load on the pop-up valve during hopper-fed abrasive loading, ensuring smooth and continuous abrasive flow.
The system utilizes a pneumatic pressure release safety circuit, which automatically depressurizes the vessel when the control handle is released—improving safety and minimizing downtime between blasting cycles. The unit comes standard with the MPV (Manual Plunger) metering valve, offering a simple and durable flow control method for general-purpose blasting media.
Built with 1-1/4″ galvanized piping, full-port ball valves, and schedule 80 wear components, this blast pot is engineered for long-life performance in industrial, fabrication, marine, and coating removal applications.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 6.0 cu ft (170 liters) |
| Operating Pressure | 150 PSI (10.3 bar) |
| Control System | 12VDC Electric Remote System |
| Remote Cord | 55’ Control Cord + 25’ Power Cord |
| System Type | Pressure Release (Automatic vessel blowdown) |
| Metering Valve | MPV Manual Plunger Valve |
| Inlet Valve | 1-1/2″ |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1-1/4″ Galvanized Steel |
| Certification | ASME Section VIII Div. 1 / CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural Warranty |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero | 21073 |
Key Features & Benefits

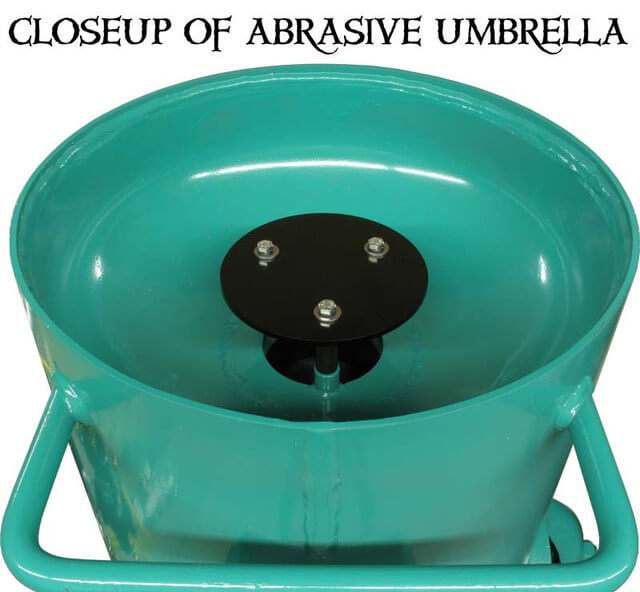

4″ Umbrella Hopper Feed
-
Reduces stress on pop-up valve during abrasive hopper loading
-
Promotes smooth, consistent abrasive feed
12VDC Electric Control System
-
Faster response times over hose lengths beyond 100 ft
-
Reduces freeze-related failures in cold climates
-
Heavy-duty filtered control valve for reliability
MPV Manual Plunger Metering Valve
-
Simple, rugged metering control design
-
Easy abrasive flow adjustment & maintenance
-
Ideal for slag, garnet, glass bead, and general media
Industrial-Grade Piping & Valves
-
1-1/4″ galvanized piping resists corrosion
-
Full-port ball valves maintain unrestricted airflow
-
Schedule 80 nipples extend component life under heavy abrasive wear
-
JIC pusher line fittings eliminate gasket leak points
Recommended Applications
-
Blast Rooms & Industrial Shops
-
Structural Steel Fabrication
-
Shipyards / Marine / Offshore
-
Coating & Rust Removal / Surface Prep
