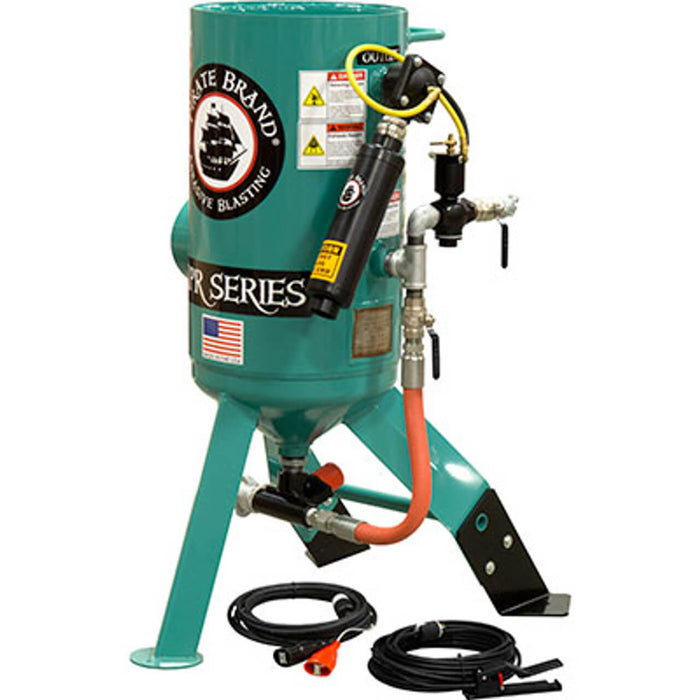

Stationary 3.0 cu ft Electric Sandblast Pot w/ 4″ Umbrella – Pressure Release System, 12VDC Controls, MPV, 1″ Inlet/Outlet, 1″ Piping
Part Number: 221-0630-MPV-EDC
Compatible OEM Reference: Clemco / Aerolyte / ZERO Products 21063
The Stationary 3.0 cu ft Electric Sandblast Pot is engineered for fixed blast room and shop environments, delivering reliable abrasive flow control and fast start/stop operation via 12VDC electric controls. The integrated 4″ umbrella reduces pop‐up load when abrasive is hopper-fed, improving refilling efficiency. Built with corrosion-resistant 1″ galvanized piping, MPV manual metering valve, and 150 PSI ASME-rated pressure vessel, this unit provides long-service life and consistent abrasive flow control.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 3.0 cu. ft. (85 liters) |
| Operating Pressure | 150 PSI (10.3 BAR) |
| Vessel Rating | ASME Section VIII, Div. 1 |
| Umbrella Size | 4″ Pop-Up Umbrella (for hopper feeding) |
| Metering Valve | MPV – Manual Plunger Valve |
| Controls | 12VDC Electric (55' Control Cord & Handle + 25' Power Cord) |
| Piping Size | 1″ Galvanized Piping |
| Inlet Valve | 1″ Pneumatic Inlet |
| Outlet Valve | 1″ Diaphragm Outlet Valve |
| Warranty | 5 Year Vessel / 10 Year Structural (Manufacturer Program) |
Key Features & Benefits
-
Pressure Release System automatically vents the vessel when the control handle is released
-
12VDC Electric Controls improve responsiveness, especially with blast hose runs > 100 ft
-
4″ Umbrella reduces strain on pop-up piston during bulk abrasive loading
-
MPV Metering Valve provides simple, reliable abrasive flow adjustment
-
Galvanized 1″ Piping & Schedule 80 Nipples resist corrosion and abrasive wear
-
JIC Fittings eliminate gasket sealing issues common on older-style pusher lines
-
Full Port Ball Valves for high-flow and reduced restriction
-
Built for stationary blast rooms, cabinets, and fixed production booths
OEM Compatibility
| Manufacturer | Part # |
|---|---|
| Clemco / Aerolyte / ZERO Products | 21063 |
(Cross-referenced for direct functional equivalency.)
Suggested Add-On Products (Upsells)
| Accessory Type | Recommended Part # | Why |
|---|---|---|
| Blast Hose Kit | 10-100BLK-050-3AL | Matched ID for optimal abrasive flow |
| Nozzle (Tungsten Carbide) | 1201-1173 | Standard #4 Poly Jacket Carbide Nozzle |
| Respirator (Type CE) | GVX2830 (Bullard GenVX) | OSHA-compliant breathing protection |
| Breathing Air Filter | AGLDTR2 | Required for clean supplied air |
