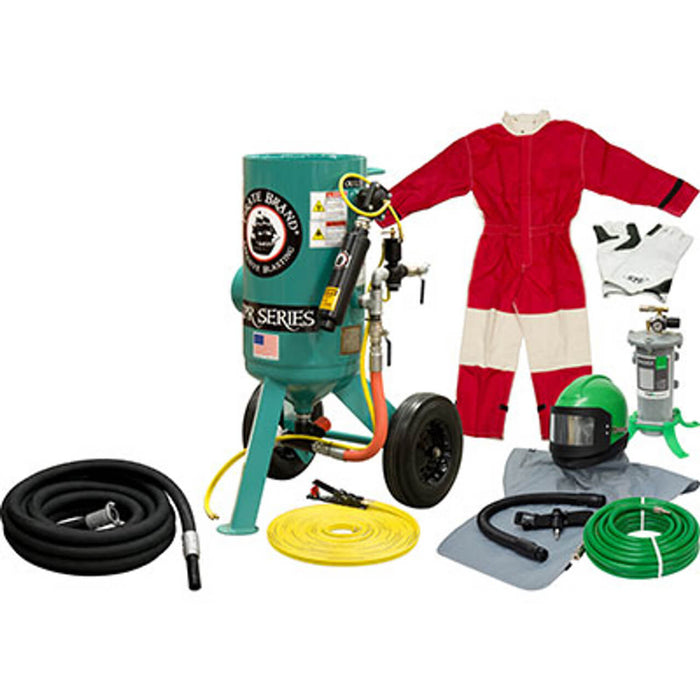

Portable 3.0 cu ft Pneumatic Sandblast Pot – Silver Blasting Package, Pressure Release System, MPV, 1″ Piping
Part Number: 201-1780-MPV-C
Weight: 398.44 lbs
Industrial 3.0 cu ft (85 liter) portable abrasive blast pot built for contractor-grade blasting performance in both shop and field environments. Equipped with a Pneumatic Pressure Release Remote System, the vessel automatically depressurizes when the operator releases the control handle—improving jobsite safety and minimizing downtime.
This model utilizes a Manual Plunger Valve (MPV) Metering Valve, providing simple, reliable abrasive feed control with low maintenance requirements. Built with 1″ galvanized piping, 1″ inlet/outlet valves, and full-port airflow components to support consistent blasting performance with expendable abrasives.
The Silver Blasting Package includes PPE, blast hose, respirator system, and a tungsten carbide nozzle—fully jobsite-ready right out of the crate.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 3.0 cu ft (85 liters) |
| Maximum Working Pressure | 150 PSI (10.3 bar) |
| System Type | Pneumatic Pressure Release |
| Metering Valve | MPV Manual Plunger Valve |
| Inlet Valve | 1″ |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1″ Galvanized Steel |
| Remote Controls | Pneumatic Control Handle + 50′ Twinline Hose Assembly |
| Vessel Certification | ASME Section VIII Div. 1 / CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 01178 |
Silver Blasting Package Includes
| Qty | Component | Description |
|---|---|---|
| (1) | 10-100BLK-050-3AL | 1″ Blast Hose Assembly w/ Couplings (50 ft) |
| (1) | 1201-1173 | #4 Tungsten Carbide All-Poly Nozzle |
| (1) | 122-9150 | Lightweight Blast Suit (Size Large) |
| (1) | 407701 | Luxury Double-Palm Blast Gloves (Pair) |
| (1) | 407000-PFC | NOVA 2000® Respirator Package (Air-Fed Helmet System) |
Key Features & Advantages
-
3.0 cu ft capacity supports light-to-medium duty blasting workloads
-
Automatic vessel blow-down upon remote handle release
-
Simple MPV abrasive metering system is reliable and field-serviceable
-
1″ galvanized piping increases corrosion resistance and internal longevity
-
Full-port ball valves preserve airflow & prevent performance loss
-
Schedule 80 wear-resistant nipple prolongs component life under abrasive flow
-
JIC-style pusher line fittings eliminate gasket leak failures found in older designs
MPV Metering Valve Benefits
-
Ideal for crushed glass, slag, garnet, and expendable abrasives
-
Wide control range for fine or heavy abrasive feed
-
Minimal service parts, easy rebuild, high reliability
-
Best for contractors, shops, farm, municipal, and mobile blasting setups
Ideal Use Cases
-
Automotive & Trailer Frame Restoration
-
Welding & Fabrication Surface Prep
-
Municipal & Public Works Maintenance
-
On-Site Repair & General Contractor Blasting
-
Small-to-Mid Industrial Equipment Refurbishment
