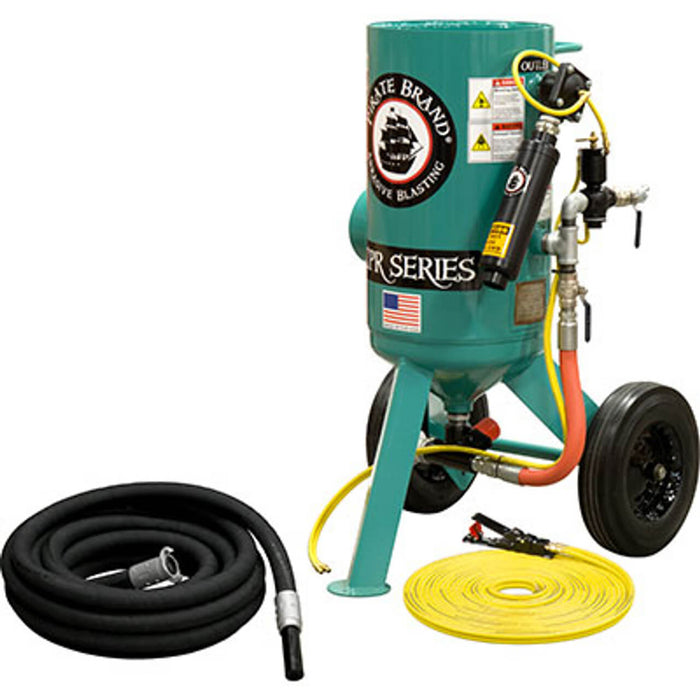

Portable 3.0 cu ft Pneumatic Sandblast Pot – Bronze Blasting Package, Pressure Release System, MPV, 1″ Piping
Part Number: 201-1780-MPV-B
Weight: 365.44 lbs
Industrial 3.0 cu ft (85 liter) portable abrasive blast pot designed for general-purpose surface preparation with reliable abrasive flow control and easy on-site operation. This model utilizes a Pneumatic Pressure Release Remote System, automatically depressurizing the vessel when the operator releases the control handle, improving safety and reducing downtime.
Equipped with the MPV (Manual Plunger Valve) Metering Valve, 1″ inlet & outlet valves, and 1″ galvanized piping, this unit provides consistent abrasive delivery, simplified adjustment control, and dependable service life in jobsite or shop environments.
The Bronze Blasting Package includes blast hose and tungsten carbide nozzle, providing essential components to begin blasting immediately.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 3.0 cu ft (85 liters) |
| Maximum Working Pressure | 150 PSI (10.3 bar) |
| System Type | Pneumatic Pressure Release |
| Inlet Valve | 1″ MPV Manual Plunger Metering Valve |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1″ Galvanized Steel (Corrosion Resistant) |
| Remote Controls | Pneumatic Control Handle + 50′ Twinline Hose Assembly |
| Vessel Certification | ASME Section VIII, Div. 1 + CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 01178 |
Bronze Blasting Package Includes
| Qty | Component | Description |
|---|---|---|
| (1) | 10-100BLK-050-3AL | 1″ Blast Hose Assembly w/ Couplings (50 ft) |
| (1) | 1201-1173 | #4 Tungsten Carbide All-Poly Nozzle |
Key Features & Performance Advantages
-
3.0 cu ft blast capacity ideal for field work, repair, and contractor service jobs
-
Automatic blow-down when remote handle is released for operator safety
-
1″ inlet & outlet valve configuration ensures stable abrasive/media flow
-
1″ galvanized piping resists corrosion during wet or humid blasting conditions
-
Full-port ball valves maintain airflow and reduce pressure loss
-
Schedule 80 wear components extend working life of abrasive flow paths
-
JIC-fitted pusher line eliminates gasket failure common in older blast pots
MPV Manual Plunger Valve Advantages
-
Simple, reliable design with low service cost
-
Wide adjustment range for abrasive flow rate
-
Suitable for garnet, slag, crushed glass, and expendable abrasives
-
Ideal for entry-level, contractor, and general shop blasting environments
Ideal Applications
-
Farm & Municipal Equipment Refurbishment
-
Weld Prep and Steel Surface Cleaning
-
Automotive / Trailer / Frame Restoration
-
General Contractor Service Blasting
-
Light-to-Medium Industrial Coatings Removal
