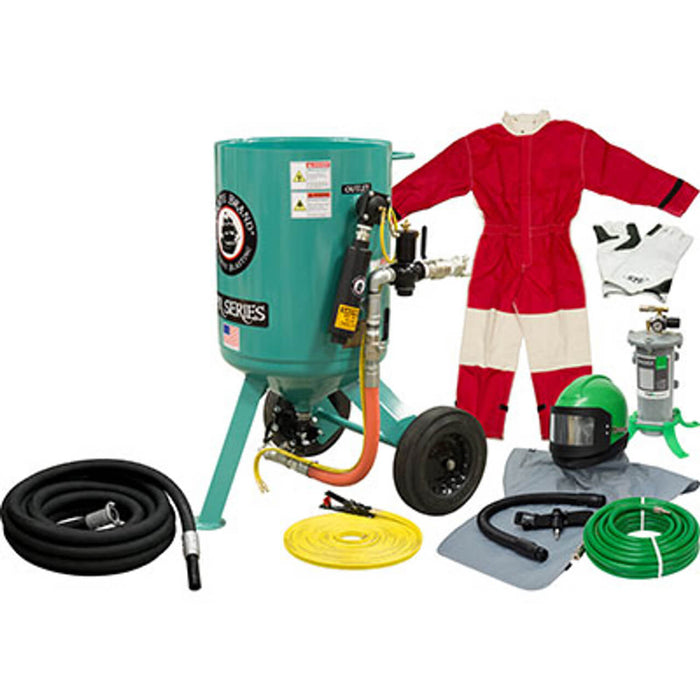

Portable 6.0 cu ft Pneumatic Sandblast Pot – Silver Blasting Package, Pressure Release System, AMV II, 1-1/4″ Piping (150 PSI)
Part Number: 201-1870-C
Weight: 532.57 lbs
Professional-grade 6.0 cu ft (170 liter) portable abrasive blast pot engineered for extended blasting cycles and continuous production environments. This unit utilizes a Pneumatic Pressure Release remote control system, automatically depressurizing the vessel when the control handle is released for operator safety and efficient workflow.
Built with 1-1/4″ galvanized piping, AMV II™ X-TREME Duty Metering Valve, 1-1/2″ high-flow inlet valve, and 1″ diaphragm outlet valve, ensuring maximum abrasive flow, reduced maintenance downtime, and long-term durability—even when operating steel grit or aggressive blasting media.
The Silver Blasting Package includes hose, nozzle, PPE, and a NOVA 2000® air-fed respirator package, providing full jobsite-ready blasting capability.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 6.0 cu ft (170 liters) |
| Maximum Working Pressure | 150 PSI (10.3 bar) |
| System Type | Pneumatic Pressure Release |
| Inlet Valve | 1-1/2″ AMV II |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1-1/4″ Galvanized Steel |
| Remote Controls | Pneumatic Control Handle + 50′ Twinline Hose Assembly |
| Vessel Certification | ASME Section VIII, Div. 1 + CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 01187 |
Silver Blasting Package Includes
| Qty | Component | Description |
|---|---|---|
| (1) | 10-114BLK-050-3AL | 1-1/4″ Blast Hose Assembly w/ Couplings (50 ft) |
| (1) | 1348-555 | #5 Tungsten Carbide Nozzle (Poly-Jacketed) |
| (1) | 122-9150 | Lightweight Blast Suit – Size Large |
| (1) | 407701 | Luxury Double-Palm Blast Gloves (Pair) |
| (1) | 407000-PFC | NOVA 2000® Respirator Package (Air-Fed Helmet System) |
Key Features & Performance Advantages
-
6.0 cu ft blast capacity reduces refill frequency during production runs
-
Automatic Pressure Release System increases operator safety & workflow efficiency
-
High-flow valve configuration (1-1/2″ Inlet + 1″ Outlet) improves media consistency
-
1-1/4″ Galvanized piping provides corrosion resistance and longer service life
-
Full-port heavy-duty ball valves maximize airflow and maintain blast pressure
-
Schedule 80 wear-resistant fittings withstand continuous abrasive flow
-
JIC pusher line fittings eliminate gasket-related leaks and maintenance issues
AMV II™ X-TREME Duty Metering Valve System
-
Optimized for steel grit, garnet, and high-density abrasives
-
Stainless steel metering plate and reinforced iron housing for durability
-
Dual nylon wiper seals prevent abrasive contamination and internal jamming
-
Large clean-out and drain ports simplify service access
-
Purge assist port allows rapid blockage clearing with compressed air
-
Heavy-duty ergonomic adjustment handle
-
Advanced lip seal + O-ring stem seal stack extends operational lifespan
Ideal for Use In
-
Marine / Shipyard Coatings Removal
-
Structural Steel & Industrial Fabrication Shops
-
Oilfield, Refinery & Tank Maintenance
-
Pipeline, Bridge, Trailer & Fleet Surface Prep
-
Blasting Contractors & Industrial Coating Professionals
