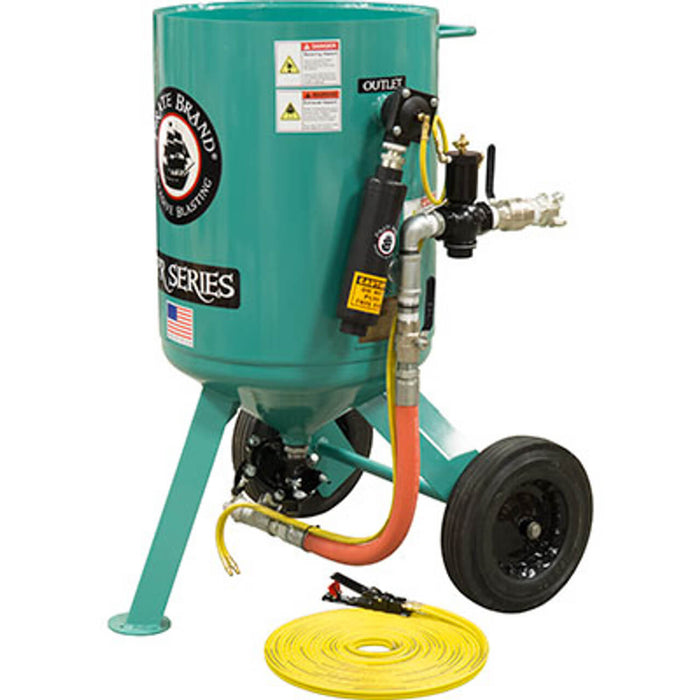

Portable 6.0 cu ft Pneumatic Sandblast Pot – Pressure Release System, AMV II, 1-1/2″ Inlet & 1″ Outlet Valves, 1-1/4″ Piping, Pneumatic Controls
Part Number: 201-1870-A
Weight: 442.37 lbs
Description:
Industrial-grade 6.0 cu ft (170 liter) portable abrasive blast pot engineered for high-production blasting, extended operating cycles, and reliable abrasive flow control. Equipped with a Pneumatic Pressure Release remote control system that automatically depressurizes the blast vessel when the control handle is released, improving operator safety and efficiency.
Built with AMV II™ X-TREME Duty Metering Valve, 1-1/2″ inlet valve, 1″ diaphragm outlet valve, and 1-1/4″ galvanized piping, this system delivers high-volume airflow, reduced wear, and consistent abrasive metering—optimized for steel grit, garnet, slag, and mineral abrasives.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 6.0 cu ft (170 liters) |
| Max Working Pressure | 150 PSI (10.3 bar) |
| System Type | Pneumatic Pressure Release |
| Inlet Valve | 1-1/2″ AMV II |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1-1/4″ Galvanized Steel |
| Remote Controls | Pneumatic Control Handle + 50′ Twinline Hose Assembly |
| Vessel Certification | ASME Section VIII, Div. 1 – CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 01187 |
Key Features & Benefits
-
6.0 cu ft blast media capacity allows longer run times between refills.
-
Automatic pressure release when handle is disengaged improves operator safety and reduces downtime.
-
1-1/2″ inlet + 1″ diaphragm outlet valves ensure optimal airflow and consistent abrasive delivery.
-
1-1/4″ galvanized piping offers superior corrosion resistance in humid / abrasive environments.
-
Heavy-duty full port ball valves minimize flow restriction and maintain high blasting efficiency.
-
Schedule 80 wear-resistant fittings extend service life in abrasive flow paths.
-
Pusher line with JIC fittings eliminates gasket-related air leaks and maintenance issues.
AMV II™ X-TREME Duty Metering Valve Advantages
-
Engineered specifically for steel grit and high-density abrasives
-
Stainless steel metering plate + reinforced cast iron housing
-
Dual nylon wiper seals prevent abrasive contamination and internal jamming
-
Large clean-out & drain ports reduce downtime during maintenance
-
Purge-assist port allows quick clearing of obstructions with compressed air
-
Heavy-duty control handle provides precise abrasive feed control
-
Upgraded stem seal stack (lip seals + O-rings) increases durability & service life
Ideal Use Cases
-
Steel Fabrication & Welding Shops
-
Marine & Shipyard Surface Prep
-
Bridge, Tank, Pipeline & Trailer Refurbishment
-
Industrial Coatings Removal & Recoating
-
Refinery, Power Plant & Infrastructure Restoration
