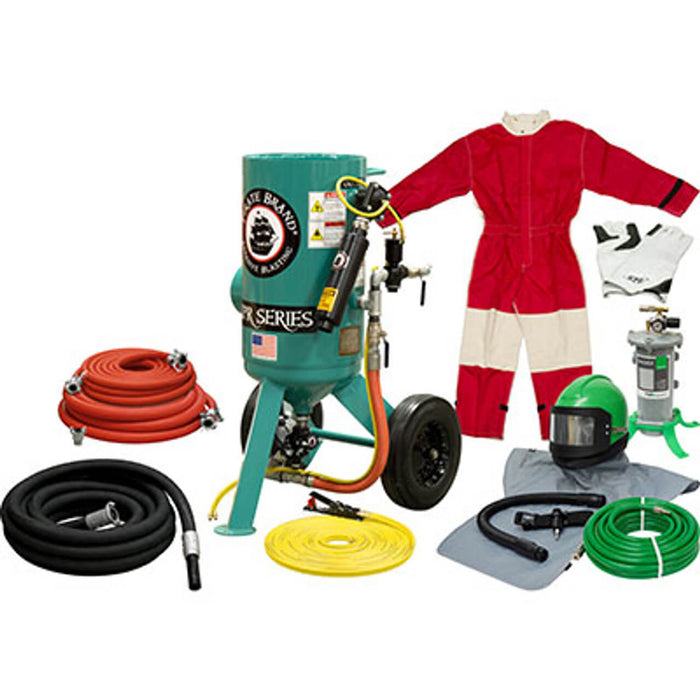

Portable 6.0 cu ft Pneumatic Sandblast Pot Gold Kit– Pressure Release System, AMV II, 1″ Piping & Diaphragm Outlet Valve
Portable 6.0 cu ft Pneumatic Sandblast Pot – Gold Blasting Package
Part Number: 201-1780-D
Weight: 462.93 lbs
Description:
Heavy-duty 6.0 cu ft portable abrasive blast pot engineered for industrial-scale blasting workloads and extended blasting cycles between refills. Designed with a Pneumatic Pressure Release remote system for automatic vessel depressurization when the control handle is released, enhancing operator safety and productivity.
Built with 1″ galvanized piping, AMV II™ X-TREME Duty Metering Valve, 1″ inlet/diaphragm outlet valves, and heavy-duty full-port ball valves to maximize airflow and media delivery efficiency.
This configuration includes the Gold Blasting Package, providing complete jobsite readiness with respirator system, protective gear, blast hose, air lines, and nozzle equipment included.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 6.0 cu ft (170 liters) |
| Max Working Pressure | 150 PSI (10.3 bar) |
| System | Pneumatic Pressure Release |
| Vessel Certification | ASME Section VIII, Div. 1 — CRN Certified |
| Inlet Valve | 1″ AMV II |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1″ Galvanized Steel |
| Remote Control | Pneumatic Control Handle + 50′ Twinline Hose |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 01178 |
Gold Blasting Package Includes
| Qty | Component | Description |
|---|---|---|
| (1) | 10-100BLK-050-3AL | 1″ Blast Hose Assembly w/ Couplings (50 ft) |
| (1) | 1201-1173 | #4 Tungsten Carbide All-Poly Nozzle |
| (1) | 122-9150 | Lightweight Blast Suit (Large) |
| (1) | 407701 | Luxury Double-Palm Blast Gloves (Pair) |
| (1) | 407000-PFC | NOVA 2000® Respirator Package (Air-fed blast helmet system) |
| (1) | 10-034RED-050-1 | ¾″ Air Hose Assembly w/ Couplings (50 ft) |
| (1) | 10-100RED-050-1 | 1″ Air Hose Assembly w/ Couplings (50 ft) |
| (1) | UM-100 | 1″ Male NPT 2-Lug Air Hose Coupling |
Key Features & Performance Advantages
6.0 cu ft Capacity
– Supports longer blasting intervals & reduced refill downtime.
Pressure Release Safety System
– Automatically depressurizes pot when operator releases handle.
Optimized 1″ Flow Path
– 1″ inlet + diaphragm outlet valves deliver smooth, consistent abrasive flow.
Galvanized Steel Piping
– Superior corrosion protection in harsh blasting environments.
Full-Port Ball Valves
– Maximizes air efficiency and reduces flow restriction.
Schedule 80 Wear-Resistant Nipple
– Withstands abrasive wear and extends service life.
JIC Fitted Pusher Line
– Eliminates gasket leak issues common in traditional systems.
AMV II™ X-TREME Duty Metering Valve Technology
-
Engineered for steel grit, slag, garnet, and heavy-density abrasives
-
Stainless steel metering plate + reinforced cast iron housing
-
Dual nylon wiper seals prevent media backflow & jamming
-
Large clean-out & drain ports ensure simplified maintenance
-
Purge assist port allows fast clearing of clogs with compressed air
-
Heavy-duty handle design for precise abrasive regulation
-
Advanced seal stack (lip seals + O-rings) for extended durability
Ideal For
-
Shipyards & Dry Docks
-
Structural Steel Fabrication
-
Industrial Refurbishment & Coatings Removal
-
Tank, Trailer, and Pipeline Surface Prep
-
Oilfield & Refinery Maintenance
